9-16: Assemblies and Parts Lists 9-17: Assemblies and Parts Lists

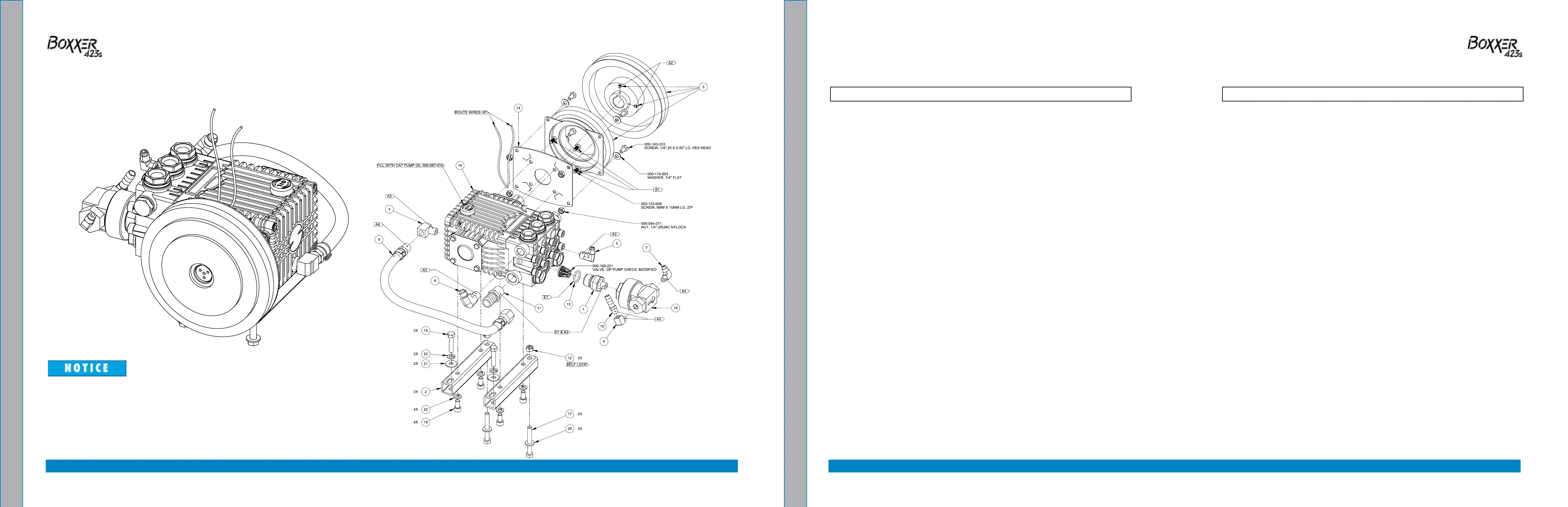

Figure 9-12. Pump Assembly
610-007-728 Rev. C
See Figure 9-1 for adhesive/sealant information.
Pump Assembly Parts List
1 000-001-154 Adapter, GP to Chemical Pump S/S 4.0 Gallon 1
2 000-015-1001 Bracket, Pump Mounting - Coated 2
3 000-036-008 Clutch, 7” O.D. 24mm Single Groove 1
4 000-052-085 Elbow, 1/4” NPT Street 1
5 000-052-532 Elbow, 1/4” SAE X 1/4” NPT 1
6 000-052-084 Elbow, 1/8” NPT Street 1
7 000-052-531 Elbow, 1/8” NPT X 1/4” SAE 1
8 000-052-766 Elbow, 3/8 NPT X 3/8 JIC 1
9 000-068-794 Hose, 3/8” X 17” Pump Drain 1
10 000-052-099 Insert, #26 (1/8” NPT X 3/8” Barb) 1
11 000-052-129 Insert, #812, 1/2NPT X 3/4 Hose 1
12 000-094-081 Nut, 5/16”-18UNC Hex 2 Way Locking 2
Item Part Number Description Qty Item Part Number Description Qty
13 000-097-057 O-Ring, Adapter - Chemical Pump 1
14 000-105-550 Plate, Pump Clutch - GP 4.0 gpm 1
15 000-111-188 Pump, 4.0 gpm GP 1
16 000-111-184 Pump, GP Chemical 1
17 000-143-106 Screw, 5/16”-18UNC X 2.5” Lg. Hex Head 2
18 000-143-015 Screw, 5/16-18 X 1 1/2” HHC 2
19 000-143-701 Screw, M8 X 16mm Lg. Socket Head 4
20 000-174-049 Washer, 5/16” Flat 2
21 000-174-004 Washer, 5/16” Flat, USS 2
22 000-174-018 Washer, 5/16” Lock 6
To Next Page
