9-20: Assemblies and Parts Lists 9-21: Assemblies and Parts Lists
Dash Assembly Parts List
1 000-001-148 Adapter, 2.5” Exhaust Turndown - Coated 1
2 610-009-728 Assembly, By-Pass Valve 1
3 610-008-728 Assembly, Hi-PSI Manifold 1
4 000-025-003 Cable, Choke With Detent 1
5 000-025-045 Cable, Throttle - Turn to Lock 1
6 000-052-272 Cup, Gravity Feed Oil Blower Lube Port 1
7 000-052-088 Elbow, 1/4” FPT X FPT 1
8 000-052-532 Elbow, 1/4” SAE X 1/4” NPT 1
9 000-052-084 Elbow, 1/8” NPT Street 1
10 000-052-531 Elbow, 1/8” NPT X 1/4” SAE 1
11 000-052-086 Elbow, 3/8” NPT Street 1
12 000-052-083 Elbow, 3/8” NPT Street X 45 Degree 2
13 000-074-017 Gauge, 30” Hg. Vacuum 1
14 000-074-007 Gauge, Pressure 0 -1,500 psi 1
15 000-074-016 Gauge, Temperature 1
16 000-052-099 Insert, #26 (1/8” NPT X 3/8” Barb) 3
17 000-052-104 Insert, #66 (3/8” NPT X 3/8” Barb) 1
18 000-052-105 Insert, #68 (3/8” NPT X 1/2” Barb) 2
19 000-052-096 Insert, #F23 (1/8” FPT X 3/16” Barb) 1
20 000-169-0171C Knob, 3-Way Ball Valve (Part of 000-169-0171) 1
21 000-061-056 Knob, Temperature Adjustment 1
22 000-074-030 Meter, Chemical Flow Raw 1
23 000-074-170 Meter, Rectangular Hour w/oBezel 1
24 000-052-527 Nipple, 1/4” SAE X 1/4” NPT 1
25 000-052-530 Nipple, 1/4” SAE X 1/8” NPT 1
26 000-052-069 Nipple, 1/8” NPT Hex 1
27 000-052-528 Nipple, 3/8” M JIC X 3/8” NPT 1
28 000-052-073 Nipple, 3/8” NPT X 1/4” NPT Hex 1
29 000-094-009 Nut, 1/4”-20 UNC Nylock 4
30 000-094-070 Nut, 5mm Nylock 2
31 000-100-001 Panel, Dash - Coated 1
32 000-100-728 Panel, Grill - Coated 1
33 000-052-051 Quick Connect, 440 Female w/EPDM O-Ring 1
34 000-052-052 Quick Connect, 660 3/8” Brass w/EPDM O-Ring 1
35 000-135-052 Regulator, Hi-PSI Snubber 1
36 000-143-126 Screw, #10-24 UNC X 0.50” Lg. Hex Head 10
37 000-143-132 Screw, #10-24 UNC X 0.75” Lg. Hex Head 1
38 000-143-171 Screw, #10-24 UNC X 1.25” Lg. Hex Head
4
39 000-143-327 Screw, #10-32UNF X 0.50” Lg. Hex Head 2
40 000-143-542 Screw, 1/4”-28UNF X 0.50” Lg. Hex Head 2
41 000-155-053 Spring, 1/4” Belleville Washer 2
42 000-157-040 Switch, 20 Amp Rocker 2
43 000-157-131 Switch, 3 Way Speed Control 1
44 000-052-090 Tee, 1/4” NPT Branch M-F-F 1
45 000-149-560 Thermostat, Potentiometer * 1
46 000-131-131 Trimlok, 3/8” X 1/8” Rubber 1
47 000-169-0171 Valve, 3-Way Ball O-Ring Style 1
48 000-169-064 Valve, 3/8” NPT Full Port Ball 1
49 000-169-160 Valve, Chemical Metering 1
50 000-169-236 Valve, Differential 1
51 000-174-001 Washer, #10 Flat 17
52 000-174-014 Washer, #10 Lock 5
53 000-174-007 Washer, 1/2” Flat 3
54 000-174-003 Washer, 1/4” Flat 4
55 000-174-058 Washer, 21/32” I.D. X 27/32” O.D. Nylon 1
56 000-174-005 Washer, 3/8” Flat 1
57 000-174-032 Washer, 3/8” Flat 1
58 000-174-008 Washer, 5/8” Flat 4
59 000-174-030 Washer, 5/8” I.D.X 7/8” O.D. X 0.010” Thk 1
60 000-174-062 Washer,1/2” I.D.X 3/4” O.D. X 0.010” Thk 1
Item Part Number Description Qty Item Part Number Description Qty

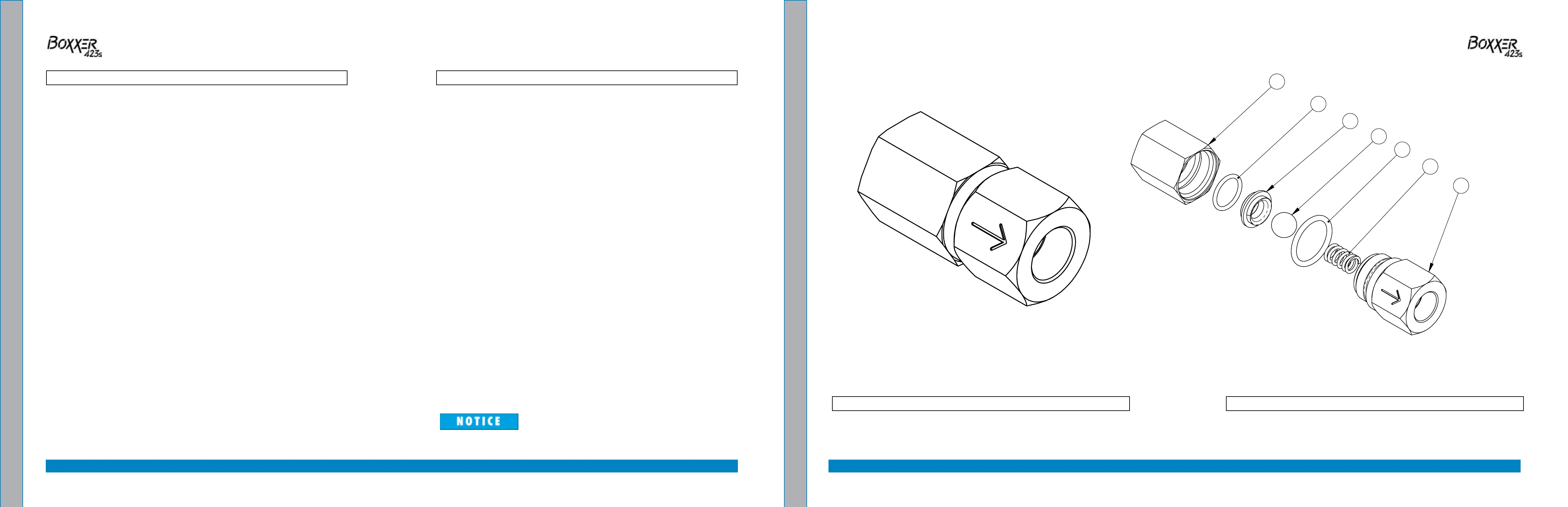

Figure 9-15. Differential Check Valve Assembly
000-169-236 Rev. B
3
7
1
6
2
4
5
Differential Check Valve Assembly Parts List
1 000-005-012 Ball, 0.500 Dia Stainless Steel 1
2 000-107-258 Body, Differential Check Valve 1
3 000-106-180 Cap, Differential Check Valve 1
4 000-097-056 O-Ring, Check Valve Plug, AN Size -118-Vit 1
5 000-097-054 O-Ring, Chem. Pump Valve Viton-Parker 2-114 1
6 000-148-012 Seat, Differential Check Valve 1
7 000-155-106 Spring, Differential Check Valve 1
Item Part Number Description Qty Item Part Number Description Qty
*When ordering a replacement for P/N 000-149-560 Potentiometer Thermostat,
request P/N 000-149-561.
