9-54: Assemblies and Parts Lists 9-55: Assemblies and Parts Lists

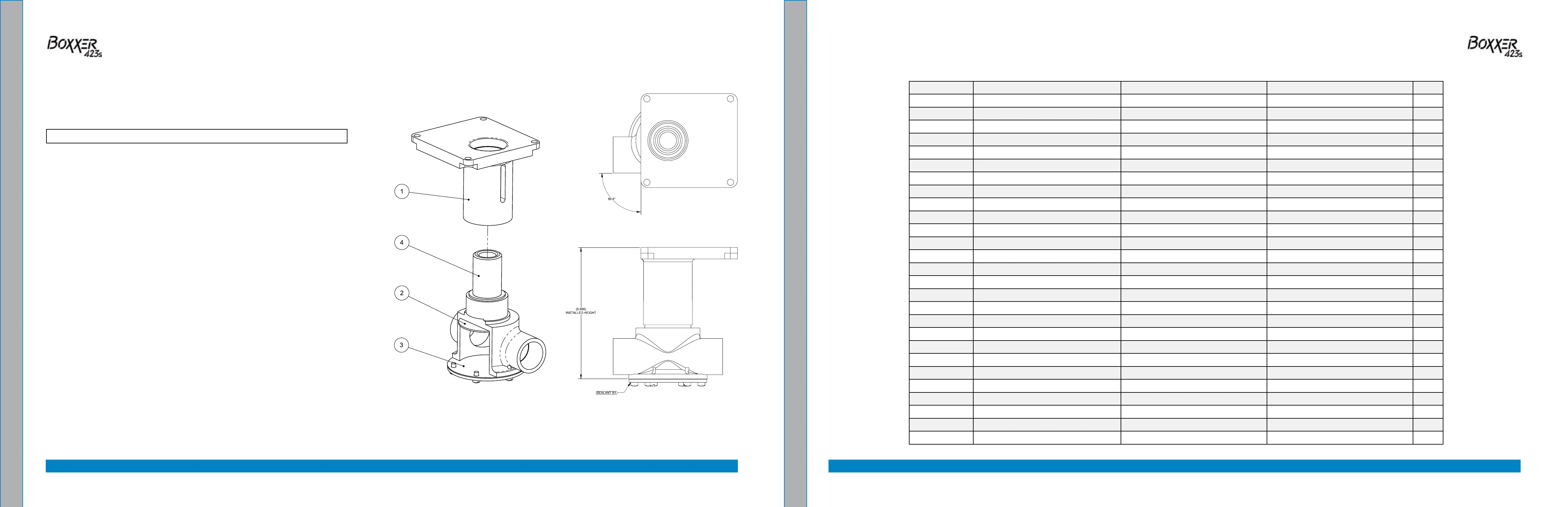

Figure 9-37. APO Pump Assembly

000-111-169 Rev. D

1 000-092-010 Mount, APO Pump Head - Coated 1

2 000-105-696 Plate S/S APO Inner Wear 1

3 000-105-697 Plate S/S APO Outer Wear 1

4 000-111-168 Pump 1

APO Pump Assembly Parts List

Item Part Number Description Qty

Hose Routings

Part No. Description From To Qty

000-068-1005 Hose Assembly, 3/16" Teon X 110" Lg. Secondary Orice Recovery Tank 1

000-068-1006 Hose, 5/32" I.D. Vacuum X 1.5" Lg. Vacuum Tee Check Valve 2

000-068-1007 Hose, 5/32" I.D. Vacuum X 4.5" Lg. Engine Check Valve 1

000-068-1008 Hose, 5/32" I.D. Vacuum X 15" Lg. Vacuum Solenoid - Divert Mode -- 1

000-068-1008 Hose, 5/32" I.D. Vacuum X 15" Lg. Vacuum Solenoid - Heat Mode -- 1

000-068-1009 Hose, 5/32" I.D. Vacuum X 16" Lg. Vacuum Tee Vacuum Solenoid 1

000-068-1010 Hose, 5/32" I.D. Vacuum X 40.5" Lg. Blower Inlet Check Valve 1

000-068-1010 Hose, 5/32" I.D. Vacuum X 40.5" Lg. Blower Inlet Vacuum Gauge 1

000-068-1011 Hose, 5/32" I.D. Vacuum X 57" Lg. Blower Inlet Blower Lube Port 1

000-068-509 Hose Assembly, 3/16" Teon X 37.5" Lg. Water Box Primary Orice 1

000-068-888 Hose Assembly, 3/16" Teon X 24" Lg. Chemical Metering Valve Solution Out 1

000-068-888 Hose Assembly, 3/16" Teon X 24" Lg. Hi-PSI Pump PSI Gauge 1

000-068-931 Hose Assembly, 5/16" Teon X 14.5" Lg. Hi-PSI Manifold Solution Out 1

000-068-931 Hose Assembly, 5/16" Teon X 14.5" Lg. Hi-PSI Pump By-Pass Valve 1

000-068-931 Hose Assembly, 5/16" Teon X 14.5" Lg. Heat Exchanger In By-Pass Valve 1

000-068-931 Hose Assembly, 5/16" Teon X 14.5" Lg. Heat Exchanger Out Hi-PSI Manifold 1

000-068-933 Hose Assembly, 3/16" Teon X 23" Lg. Chemical Pump Prime Valve 1

000-068-971 Hose, 3/8" I.D. Clear w/ Braid X 60" Lg. Flow Meter Chemical Jug 1

000-068-972 Hose, 3/8" I.D. Rubber X 76" Lg. Prime Tee Recovery Tank 1

000-068-980 Hose, 3/8" I.D. Clear w/ Braid X 28.5" Lg. Flow Meter Chemical Pump 1

000-068-991 Hose, 1/2" Rubber X 42" Lg. Water Box Wye 1

000-068-992 Hose, 1/2" Rubber X 4" Lg. By-Pass Return Wye 1

000-068-993 Hose, 1/2" Rubber

X 5" Lg. D

rain Valve Wye 1

000-068-994 Hose, 1/2" Rubber X 62" Lg. Fresh Water In Water Box 1

000-068-995 Hose, 3/4" I.D. EPDM X 41" Lg. Water Box Hi-PSI Pump 1

000-068-996 Hose, 3/8" I.D. Rubber X 2" Lg. Prime Tee Thermo Valve 1

000-068-997 Hose, 3/8" I.D. Rubber X 60" Lg. Prime Tee Chemical Prime Valve 1
