9-30: Assemblies and Parts Lists 9-31: Assemblies and Parts Lists

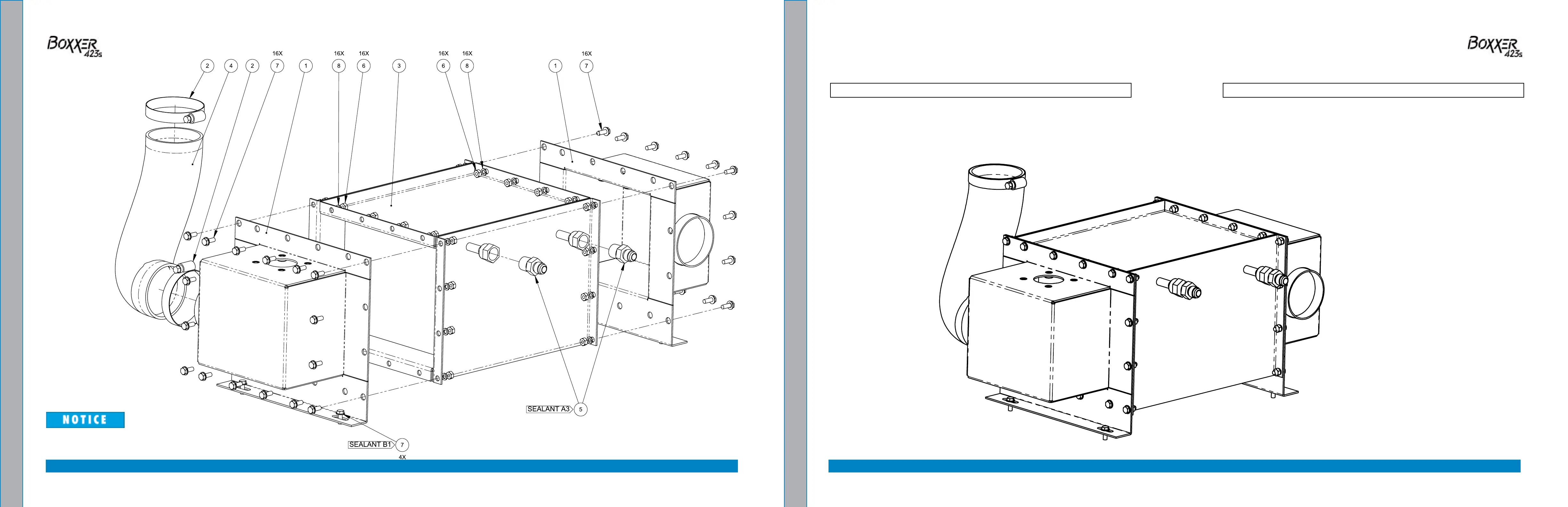

Figure 9-22. Blower Heat
Exchanger Assembly
610-005-728 Rev. B
See Figure 9-1 for sealant information.
Blower Heat Exchanger Assembly Parts List
1 000-013-002 Box, Plenum - Weldment 2
2 000-033-011 Clamp, Size #36 Hose 2
3 000-038-001 Core, Blower Heat Exchanger 1
4 000-068-986 Hose, 2.5” Heat Flex NS X 15” Lg. 1
Item Part Number Description Qty Item Part Number Description Qty
5 000-052-528 Nipple, 3/8” M JIC X 3/8” NPT 2
6 000-094-004 Nut, #10-24UNC Hex 32
7 000-143-583 Screw, #10-24UNC X 0.50” Lg. Hex Head Flange Z/P 36
8 000-174-014 Washer, #10 Lock 32
To Next Page
