HydraMaster Boxxer 423s - Figure 9-34. 100 Gallon Universal Recovery Tank (URT) Cover Assembly; Gallon Universal Recovery Tank (URT) Assembly Parts List

9-48: Assemblies and Parts Lists 9-49: Assemblies and Parts Lists
100 Gallon Universal Recovery Tank (URT) Assembly Parts List
1 000-001-134 Adapter, Ø2.5” Tank X 90° Blower Hose - Coated 1
2 610-029-002 Assembly, Recovery Tank Cover 1
3 610-026-724 Assembly, Vacuum Relief Valve - URT 1
4 000-012-002 Block, 6 Post Terminal 1
5 000-015-932 Bracket, Flat Filter Securing - Uncoated 1
6 000-033-057 Clamp, 1” Cushion Loop 1
7 000-052-085 Elbow, 1/4” NPT Street 1
8 000-052-082 Elbow, 1/4” NPT Street X 45° 1
9 000-052-088 Elbow, 1/4” FPT X FPT 1
10 000-049-154 Filter, Air Deector, URT - Fabricated 1
11 000-049-153 Filter, Flat - Universal Recovery Tank 1
12 000-049-152 Filter, Recovery Tank Basket 1
13 000-157-091 Float, Lever Switch 1
14 000-057-206 Gasket, Adapter - URT 2
15 000-060-002 Grommet, Large Wiring 1
16 000-052-102 Insert, #46 (1/4” NPT X 3/8” Barb) 2
17 000-086-008 Latch, Bungee 1
18 000-052-071 Nipple, 1/4” NPT Hex 1
19 000-052-662 Nipple, 3/8” NPT X 1/4” M SAE 1
20 000-052-073 Nipple, 3/8” NPT X 1/4” NPT Hex 1
21 000-094-009 Nut, 1/4”-20UNC Nylock 8
22 000-094-113 Nut, 1/4”-20UNC Neoprene Wellnut 14
23 000-094-063 Nut, #6-32UNC Nylock 2
24 000-094-059 Nut, #8-32UNC Nylock 2
25 000-106-049 Plug, 1” NPT Black Nylon * 1
26 000-106-019 Plug, 1-1/2” NPT 1
27 000-106-046 Plug, 1-1/4” NPT * 1
28 000-140-023 Rivet, Ab8-6A Aluminum Pop 4
29 000-143-333 Screw, 1/4”-20UNC X 0.50” Lg. Hex Head 2
30 000-143-002 Screw, 1/4”-20UNC X 1.00” Lg. Hex Head 22
31 000-143-539 Screw, #6-32UNC X 0.50” Lg. Button Head 2
32 000-143-051 Screw, #8-32UNC X 3/4” Lg. Binder Head 2
33 000-143-126 Screw, #10-24UNC X 0.50” Lg. Hex Head 3
34 000-159-129 Tank, 100 Gal. Universal Recovery - Coated 1
35 000-052-090 Tee, 1/4” NPT Branch M-F-F 1
36 000-169-082 Valve, 12 Volt Solenoid 1,200 psi 1
37 000-174-060 Washer, 1/4” Rubber Backed 14
38 000-174-019 Washer, 1/4” Lock 2
39 000-174-003 Washer, 1/4” Flat 18
40 000-174-029 Washer, 3/8” Rubber Backed 2
41 000-174-036 Washer, #10 F
lat Rubber Backed 3
Item Part Number Description Qty Item Part Number Description Qty
P/N 000-081-332 is part of label set P/N 000-081-728. Only
label sets can be sold; individual labels not available for sale.
* Items 25 and 27 are not used when the APO is installed.

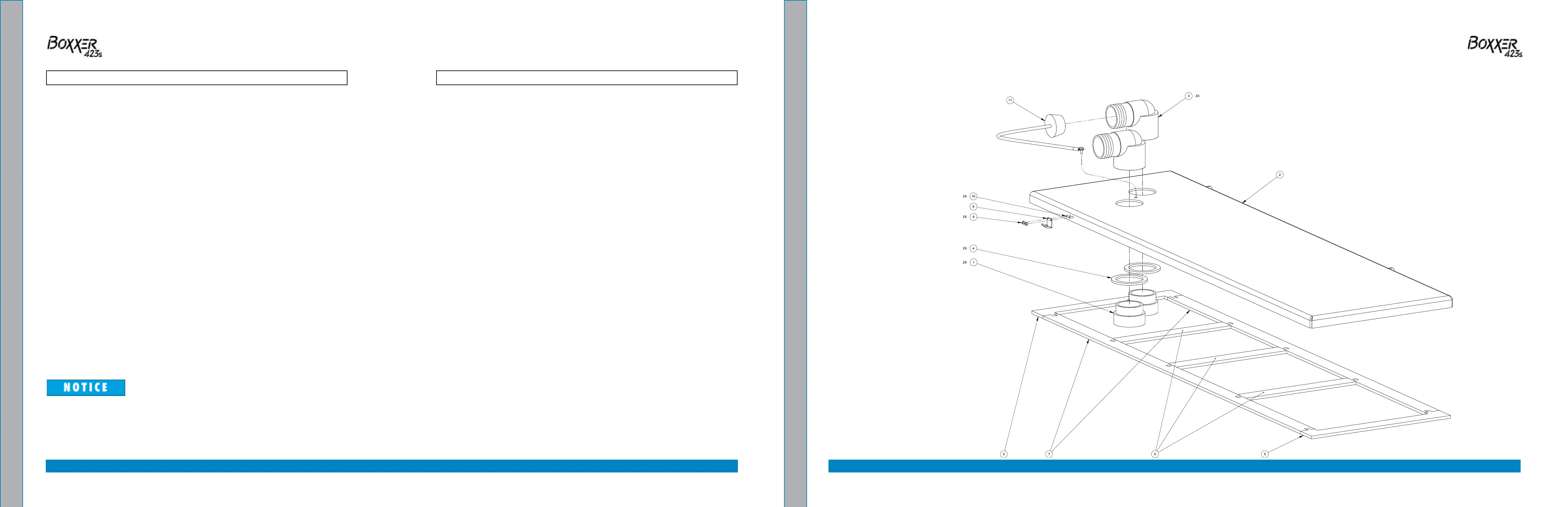

Figure 9-34. 100 Gallon Universal Recovery Tank (URT) Cover Assembly
610-029-002 Rev. A
