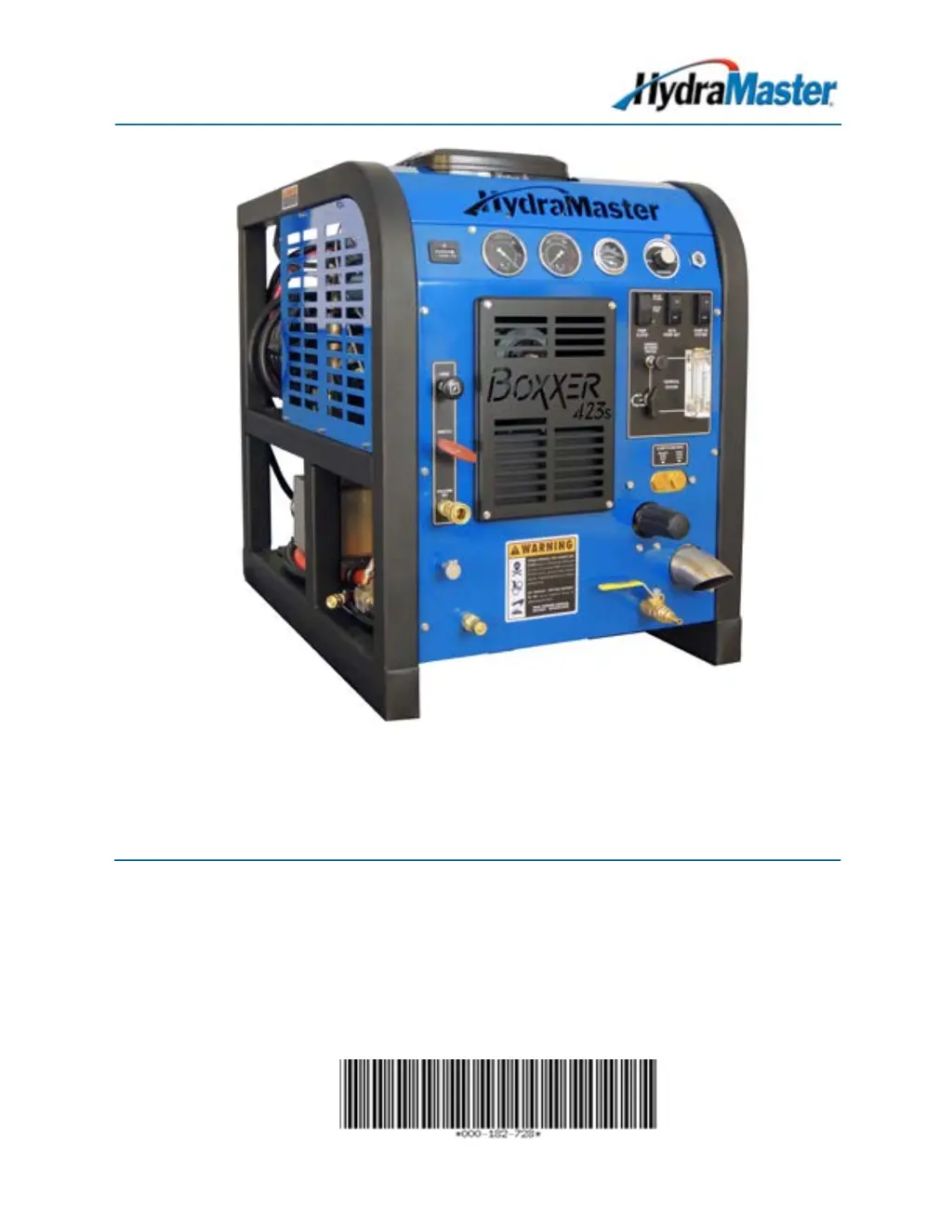

HydraMaster Boxxer 423s User Manual (English)

Questions and Answers:

R
revansAug 21, 2025
Why does my HydraMaster Test Equipment truckmount overheat and shut down?
- R
  Rachel JohnsonAug 21, 2025
  Your HydraMaster Test Equipment truckmount might overheat and shut down due to several reasons. The orifice or filter screen could be restricted, requiring removal, inspection, and cleaning. Alternatively, the dump solenoid or the hose delivering water to it may be restricted, necessitating cleaning or replacement. A faulty dump solenoid might also be the cause; in this case, check the main fuse and inspect the electrical system for worn or shorted wires, repairing or replacing as necessary. If the solenoid is operable, consider having a qualified service technician test the temperature controller and sensor.
J
jasmineandersonAug 22, 2025
Why is the chemical flow unstable or low in my HydraMaster Boxxer 423s?
- A
  Angela SolisAug 23, 2025
  Unstable or low chemical flow in your HydraMaster Test Equipment can occur for several reasons. Air may be present in the lines; ensure all fittings and connections are tight and in good condition, repairing or replacing them as needed. The filter screen in the chemical jug might be partially obstructed, requiring inspection and cleaning. Additionally, a faulty chemical selector valve, a faulty chemical metering valve, or a faulty high-pressure check valve could be the cause. Inspect these valves for leaks or obstructions and replace or clean them as necessary.
S
shortdonnaAug 25, 2025
How to fix a HydraMaster Boxxer 423s Test Equipment system that will not prime?
- T
  twrightAug 25, 2025
  If your HydraMaster Test Equipment system won't prime, several issues could be the cause. The check valves in the chemical pump might be faulty, requiring removal, inspection, cleaning, or replacement. Similarly, a faulty chemical pump diaphragm or a faulty check valve in the high-pressure pump could be the problem; remove and inspect these, cleaning or replacing as necessary. Other potential causes include a clogged filter on the feed line in the chemical jug (inspect and clean it), a loose, pinched, or damaged feed line from the chemical jug (inspect and repair it), or a faulty chemical selector valve (inspect for leaks and replace if needed).
M
Mrs. Beverly French MDAug 27, 2025
What to do if my HydraMaster Boxxer 423s Test Equipment will not come up to normal operating rpm?
- T
  Tricia RiveraAug 27, 2025
  If your HydraMaster Test Equipment will not reach its normal operating RPM, there are a few things you can check. Start by inspecting the throttle linkage for any broken or loose parts, repairing or replacing them as needed. An excessive load on the engine could also be the cause, so inspect and clean the recovery tank filters. Also inspect the recovery tank to the blower hose, repairing or replacing as necessary. Excessive back pressure on the engine exhaust might be the issue, so inspect the heat exchanger for blockages, cleaning or replacing it as needed. Finally, check the air filter and replace it if it's dirty.
T
Tina RodriguezAug 27, 2025
Why does my HydraMaster Test Equipment turn over but not start, even with spark?
- W
  William KirbyAug 28, 2025
  If your HydraMaster Test Equipment turns over but doesn't start despite having a spark, the issue might be that fuel isn't reaching the carburetor. Test for power to the fuel pump. If power is present, inspect the fuel pump and replace it if necessary. Also, inspect the fuel lines between the source and the carburetor, repairing or replacing them as necessary. Alternatively, the carburetor solenoid could be faulty, so test for power to the solenoid and inspect/replace it if needed. If the engine is flooded, pull the throttle cable completely and crank until the engine starts. Lastly, inspect the spark plugs, replacing them if worn or dirty.
S
Stephanie PerryAug 31, 2025
Why does my HydraMaster Test Equipment run rough at high speed?
- S
  Scott ElliottAug 31, 2025
  If your HydraMaster Test Equipment runs rough at high speed, it could be due to faulty spark plugs. Remove and inspect the plugs, cleaning or replacing them as necessary. Another cause could be faulty spark plug wires, so inspect the wires and connectors for damage or loose connections, repairing or replacing them as needed. Inadequate fuel supply to the carburetor can also cause this issue, so check if the fuel pump is mounted in a vertical position near the fuel source and correct if necessary. Also check for blockage in the filter. If operating altitudes have changed, contact your distributor to have the engine carburetor jets checked.
K
kevinguerreroSep 2, 2025
What to do if my HydraMaster Test Equipment turns over but won't start and there's no spark?
- D
  Diane MezaSep 2, 2025
  If your HydraMaster Test Equipment turns over but won't start and there's no spark, first, drain the tank if the recovery tank is full. Then, inspect the float, repair or replace as necessary, if the recovery tank float is faulty. If the water box is empty, attach an inlet garden hose to fill the water box. If too many attempts are made to start the engine prior to filling the water box, it is possible to flood the engine. If these steps don't resolve the issue, refer to a qualified service technician for further troubleshooting of the engine ignition system.
C
Christopher GuerreroSep 5, 2025
Why does my HydraMaster Test Equipment run rich and emit black smoke?
- A
  Amy LynnSep 5, 2025
  If your HydraMaster Test Equipment is running rich and emitting black smoke, the air filter might be dirty, so inspect and replace it as necessary. The choke may also be partially closed, so inspect and adjust or repair it as needed. Another potential cause is excessive fuel to the carburetor, so check to see if the proper fuel pump is installed. If operating altitudes have changed, contact your distributor to have the engine carburetor jets checked.
S
Sandra FigueroaSep 6, 2025
Why is there a weak vacuum in my HydraMaster Boxxer 423s?
- M
  Matthew LawsonSep 7, 2025
  A weak vacuum in your HydraMaster Test Equipment can be caused by an air leak somewhere in the vacuum system. Check the vacuum relief valve for proper adjustment. Carefully check all the vacuum hoses for a cut or break. Check the recovery tank lid gasket. Make sure the recovery tank drain valve is fully closed.
J
Jose CollinsSep 10, 2025
Why is there no pressure reading on the gauge of my HydraMaster Boxxer 423s?
- K
  Kelsey HarrisonSep 10, 2025
  If there's no pressure reading on the gauge of your HydraMaster Test Equipment, the pump belt might be broken, so inspect and replace it if necessary. Alternatively, the gauge itself could be faulty, in which case you should replace it.

HydraMaster Boxxer 423s Specifications

General

Brand	HydraMaster
Model	Boxxer 423s
Category	Test Equipment
Language	English

Summary

General Information

Major System Components

Identifies and illustrates the main components of the Boxxer 423s unit.

Warnings, Cautions and Notices

Explains symbols used for warnings, cautions, and notices to ensure safe operation.

Warnings and Cautions Specific to Boxxer 423s

Lists specific safety warnings related to moving parts, heat, noise, fumes, and chemicals.

Cleaning and Chemicals

Carpet Preparation for Extraction

Outlines steps for preparing carpet before the main extraction process for better results.

Rinse and Recover Process

Describes the process of rinsing the carpet and recovering excess moisture after cleaning.

Specific Tool Usage: RX-20 & Upholstery Tool

Details operation and best practices for using RX-20 and upholstery tools on various surfaces.

Operating Instructions

Startup Procedure

Provides a step-by-step guide for correctly starting the truckmount engine and systems.

Shutdown Procedure

Outlines the correct steps for safely shutting down the truckmount after use.

Machine Maintenance

Maintenance Schedule Overview

Lists daily, weekly, monthly, and quarterly maintenance tasks to keep the machine operational.

Overall Machine Maintenance & Cleaning

Emphasizes the importance of cleaning for inspection and easy maintenance of the truckmount.

Engine Maintenance: Oil, Filter, Spark Plugs

Covers engine oil checks, filter replacement, spark plug service, and fuel filter location.

High Pressure Pump Maintenance

Details daily and periodic maintenance requirements for the high pressure pump, including valve and seal servicing.

Vacuum System Maintenance

Covers daily lubrication and periodic oil changes for the vacuum blower.

System Protection: Descaling & Freeze Guarding

Details descaling the heating system and freeze guarding procedures to prevent damage.

Water and Chemical System

Systems Troubleshooting

Heating System Troubleshooting

Lists common problems and solutions for the truckmount's heating system.

Chemical System Troubleshooting

Identifies issues and solutions related to the chemical pump and flow in the system.

Engine Troubleshooting: Starting Issues

Provides troubleshooting steps for engine starting issues, including no spark or flooding.

Engine Troubleshooting: Operation Issues

Offers troubleshooting for engine operation problems like rough running or overheating.

High Pressure System Troubleshooting

Addresses issues like low pressure, no pressure reading, and pressure pulsation in the pump system.
