9-14: Assemblies and Parts Lists 9-15: Assemblies and Parts Lists

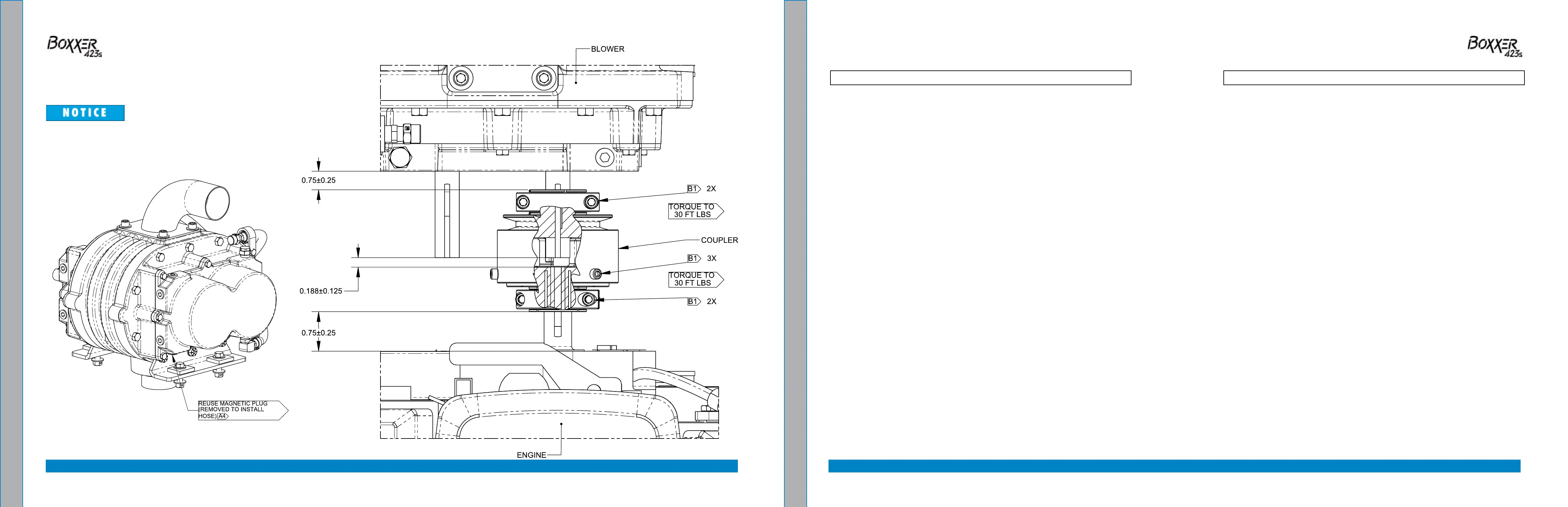

Figure 9-11. Blower Assembly - View 2 of 2
610-002-728 Rev. D
See Figure 9-1 for sealant information.
Blower Assembly Parts List
1 000-001-071 Adapter Blower Inlet - Coated 1
2 000-001-140 Adapter, 2 1/2” NPT To 2 1/2” O.D. Tube - Coated 1
3 000-111-145 Blower, 4005 Dominator 1
4 000-015-032 Bracket, Dominator 4005 Mounting - Coated 2
5 000-052-061 Bushing, 3/8” NPT X 1/4” FPT 2
6 000-033-057 Clamp, 1” Cushion Loop 2
7 000-052-085 Elbow, 1/4” NPT Street 2
8 000-068-794 Hose Assembly, 3/8” X 17” Lg. Drain 1
9 000-068-794 Hose Assembly, 3/8” X 17” Lg. Drain 1
10 000-052-293 Insert, #23 (1/8” NPT X 3/16” Barb) 3
11 000-077-011 Key, 3/16” X 1 1/2” Long 1
12 000-094-015 Nut, 3/8”-16UNC Hex 2-Way Locking 4
13 000-143-018 Screw, 3/8”-16UNC X 1” Lg. Hex Head - Grade 8 6
14 000-143-200 Screw, 3/8”-16UNC X 1.5” Lg. Hex Head Grade 8 4
15 000-143-094-1 Screw, 3/8”-16UNC X 3/4” Lg. Socket Head 4
16 000-174-004 Washer, 5/16” Flat, USS 18
17 000-174-068 Washer, Blower Feet - Coated 4
Item Part Number Description Qty Item Part Number Description Qty
