HydraMaster Boxxer 423s - Figure 9-35. Vacuum Relief Valve Assembly; Gallon Universal Recovery Tank (URT) Cover Assembly Parts List; Vacuum Relief Valve Assembly Parts List

9-50: Assemblies and Parts Lists 9-51: Assemblies and Parts Lists
100 Gallon Universal Recovery Tank (URT) Cover Assembly Parts List
1 000-052-219 Adapter, 2” NPT X 2” F Slip 2
2 000-041-447 Cover, 100 Gal. URT - Coated 1
3 000-052-222 Elbow, 2” Barb X 2” FPT 2
4 000-057-015 Gasket, 1-1/2” Bulkhead Fitting 2
5 000-057-202 Gasket, End - Rec. Tank Cover 2
6 000-057-203 Gasket, Middle - Rec. Tank Cover 3
7 000-057-205 Gasket, Side - Rec. Tank Cover 2
8 000-086-008 Latch, Bungee - Strike (Part of 000-086-008) 1
9 000-094-063 Nut, #6-32UNC Nylock 2
10 000-143-539 Screw, #6-32UNC X 0.50” Lg. Button Head 2
11 000-078-039 Vacuum Inlet Stopper 1
Item Part Number Description Qty Item Part Number Description Qty

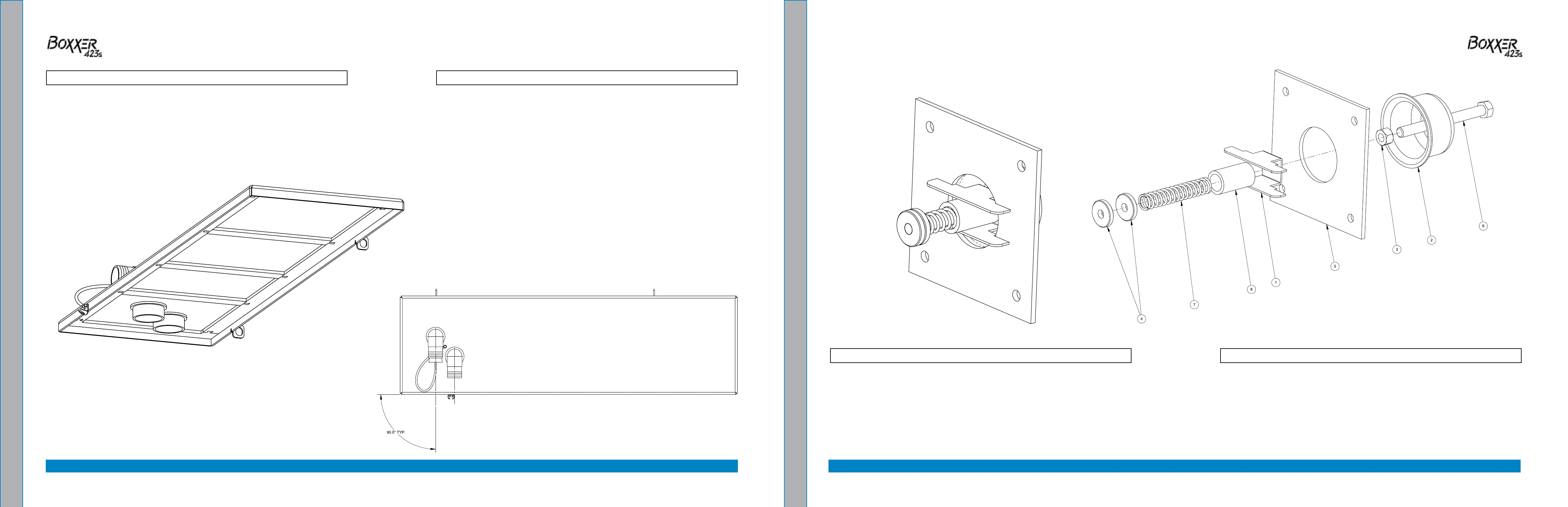

Figure 9-35. Vacuum Relief Valve Assembly
610-026-724 Rev. B
Vacuum Relief Valve Assembly Parts List
1 000-015-182 Bracket, Vacuum Relief Valve - Fabricated 1
2 000-027-032 Cap, Spun Vacuum Relief Valve 1
3 000-094-101 Nut, 3/8”-16 UNC Hex Jam 1
4 000-094-077 Nut, 3/8”-16UNC X 1.00” O.D. Knurled 2
5 000-105-332 Plate, Vacuum Relief Valve Mounting - Coated 1
6 000-143-198 Screw, 3/8”-16UNC X 4” Lg. Hex Head - Full Thread 1
7 000-155-026 Spring, Vacuum Relief Valve 1
8 000-125-111 Tube, Vacuum Relief Spring Guide 1
Item Part Number Description Qty Item Part Number Description Qty
