9-52: Assemblies and Parts Lists 9-53: Assemblies and Parts Lists

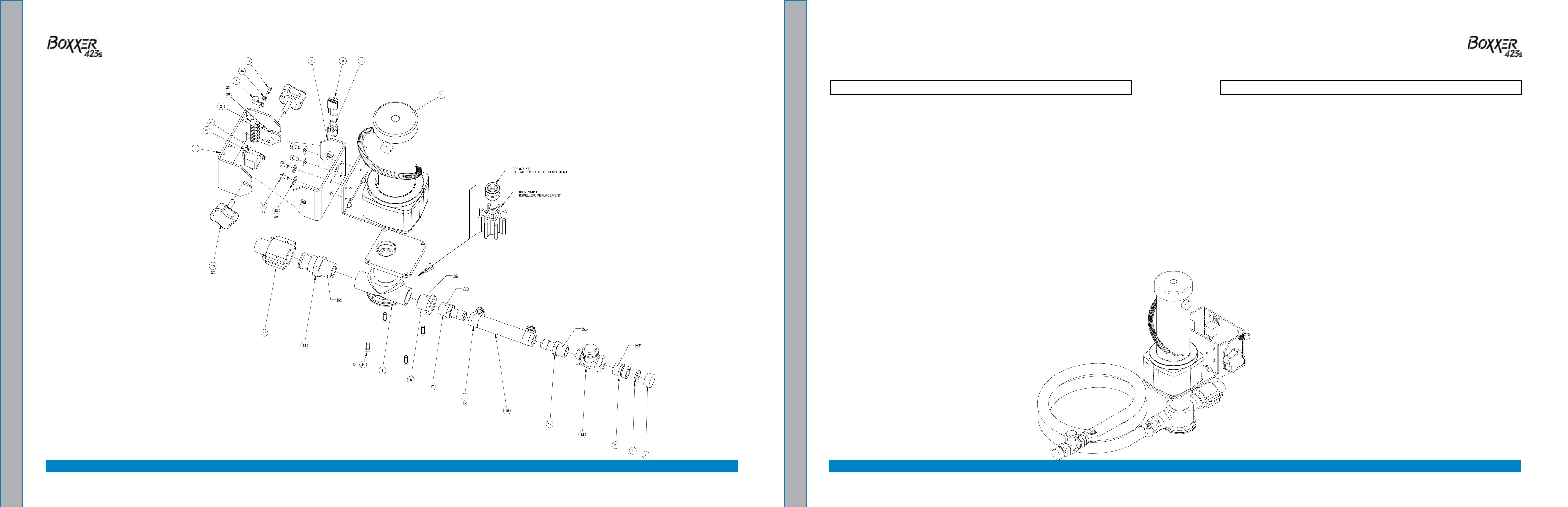

Figure 9-36. Dura-Flow APO Assembly
000-079-091 Rev.
Dura-Flow APO Assembly Parts List
1 000-111-169 Assembly, APO Pump - Jabsco 1
2 000-012-011 Block, 6 Post Terminal 1
3 000-015-891 Bracket, APO Clamp - Fabricated 1
4 000-015-890 Bracket, Tank Mounted APO Support - Fabricated 1
5 000-052-425 Bushing, 1” NPT X 3/4” FPT 1
6 000-027-014 Cap, Garden Hose 1
7 000-033-022 Clamp, 1/2” Nylon Hose 1
8 000-033-026 Clamp, Size #10 2
9 000-037-047 Connector, 2 Pole Water Tight Female 1
10 000-037-048 Connector, 2 Pole Water Tight Male 1
11 000-037-033 Connector, 22 Pink Butt 2
12 000-052-724 Fitting, 1” NPT Cam Lock - Banjo 100B 1
13 000-052-723 Fitting, 1” NPT Cam Lock - Banjo 100F 1
14 000-057-055 Gasket, Garden Hose 1
15 000-063-021 Harness, 1/4” Slit Wire Loom 5’
16 000-068-954 Hose. 3/4” I.D. EPDM X 72” Lg. - Red 1
17 000-052-338 Insert, #1212 (3/4” NPT X 3/4” Barb) 2
18 000-061-131 Knob, Handle - RDM 2
19 000-091-043 Motor Assembly - APO 1
20 000-052-281 Nipple, 3/4” NPT X 3/4” Male Garden Hose 1
21 000-094-027 Nut, #10-24UNC Hex 1
22 000-135-051 Regulator, 3 Amp 1000 PIV Diode 1
23 000-143-074 Screw, 1/4”-20UNC X 0.50” Lg. Hex Head Self-Tapping 4
24 000-143-566 Screw, 1/4”-28UNF X 0.75” Lg. Socket Head 4
25 000-143-310 Screw, 10-32 X 1/2” HXSLHD Self Tapping 1
26 000-143-532 Screw, #6-32UNC X 5/8” Lg. Socket Head 2
27 000-147-030 Seal, Water Tight Wire 2
28 000-157-091 Switch, Harwil Float - Modied 1
29 000-157-022 Switch, Relay 1
30 000-037-022 Terminal, 10 AWG Fully Insulated Fe 3
31 000-037-012 Terminal, Fully Insulated Female Q 1
32 000-169-009 Valve, 3/4” FPT Swing Check 1
33 000-174-002 Washer, 1/4” Flat 4
34 000-174-001 Washer, #10 Flat 1
Item Part Number Description Qty Item Part Number Description Qty
