HydraMaster Boxxer 423s - Figure 9-32. 70 Gallon Universal Recovery Tank (URT) Cover Assembly; Gallon Universal Recovery Tank (URT) Assembly Parts List

9-44: Assemblies and Parts Lists 9-45: Assemblies and Parts Lists
70 Gallon Universal Recovery Tank (URT) Assembly Parts List
1 000-001-134 Adapter, Ø2.5” Tank X 90° Blower Hose - Coated 1
2 610-029-726 Assembly, Cover, 70 Gal URT, Single Vac. 1
3 610-026-724 Assembly, Vacuum Relief Valve - URT 1
4 000-012-002 Block, 6 Post Terminal 1
5 000-015-932 Bracket, Flat Filter Securing - Uncoated 1
6 000-033-023 Clamp, 3/4” Nylon Hose 2
7 000-052-088 Elbow, 1/4” FPT X FPT 1
8 000-052-085 Elbow, 1/4” NPT Street 1
9 000-052-082 Elbow, 1/4” NPT Street X 45° 1
10 000-049-154 Filter, Air Deector, URT - Fabricated 1
11 000-049-153 Filter, Flat - Universal Recovery Tank 1
12 000-049-152 Filter, Recovery Tank Basket 1
13 000-157-091 Float, Lever Switch 1
14 000-057-206 Gasket, Adapter - URT 2
15 000-052-102 Insert, #46 (1/4” NPT X 3/8” Barb) 2
16 000-086-008 Latch, Bungee 1
17 000-052-071 Nipple, 1/4” NPT Hex 1
18 000-052-662 Nipple, 3/8” NPT X 1/4” M SAE 1
19 000-052-073 Nipple, 3/8” NPT X 1/4” NPT Hex 1
20 000-094-034 Nut, #10-24UNC Nylock 2
21 000-094-063 Nut, #6-32UNC Nylock 2
22 000-094-059 Nut, #8-32UNC Nylock 2
23 000-094-113 Nut, 1/4”-20UNC Neoprene Wellnut 4
24 000-094-009 Nut, 1/4”-20UNC Nylock 8
25 000-106-019 Plug, 1-1/2” NPT * 1
26 000-106-046 Plug, 1-1/4” NPT 1
27 000-106-049 Plug,1” NPT Black Nylon * 1
28 000-108-179 Protector, Vacuum Relief - Coated 1
29 000-140-023 Rivet, AB8-6A Aluminum Pop 4
30 000-143-132 Screw, #10-24UNC X 0.75” Lg. Hex Head 2
31 000-143-539 Screw, #6-32UNC X 0.50” Lg. Button Head 2
32 000-143-051 Screw, #8-32UNC X 3/4” Lg. Binder Head 2
33 000-143-333 Screw, 1/4”-20UNC X 0.50” Lg. Hex Head 2
34 000-143-002 Screw, 1/4”-20UNC X 1.00” Lg. Hex Head 12
35 000-159-128 Tank, 70 Gallon URT - Coated 1
36 000-052-090 Tee, 1/4” NPT Branch M-F-F 1
37 000-169-082 Valve, 12 Volt Solenoid 1,200 psi 1
38 000-174-001 Washer, #10 Flat 2
39 000-174-036 Washer, #10 Flat Rubber Backed 4
40 000-174-003 Washer, 1/4” Flat
18
41 000-174-019 Washer, 1/4” Lock 2
42 000-174-060 Washer, 1/4” Rubber Backed 4
43 000-174-029 Washer, 3/8” Rubber Backed 2
Item Part Number Description Qty Item Part Number Description Qty
P/N 000-081-332 is part of label set P/N 000-081-728. Only
label sets can be sold; individual labels not available for sale.
* Items 25 and 27 are not used when the APO is installed.

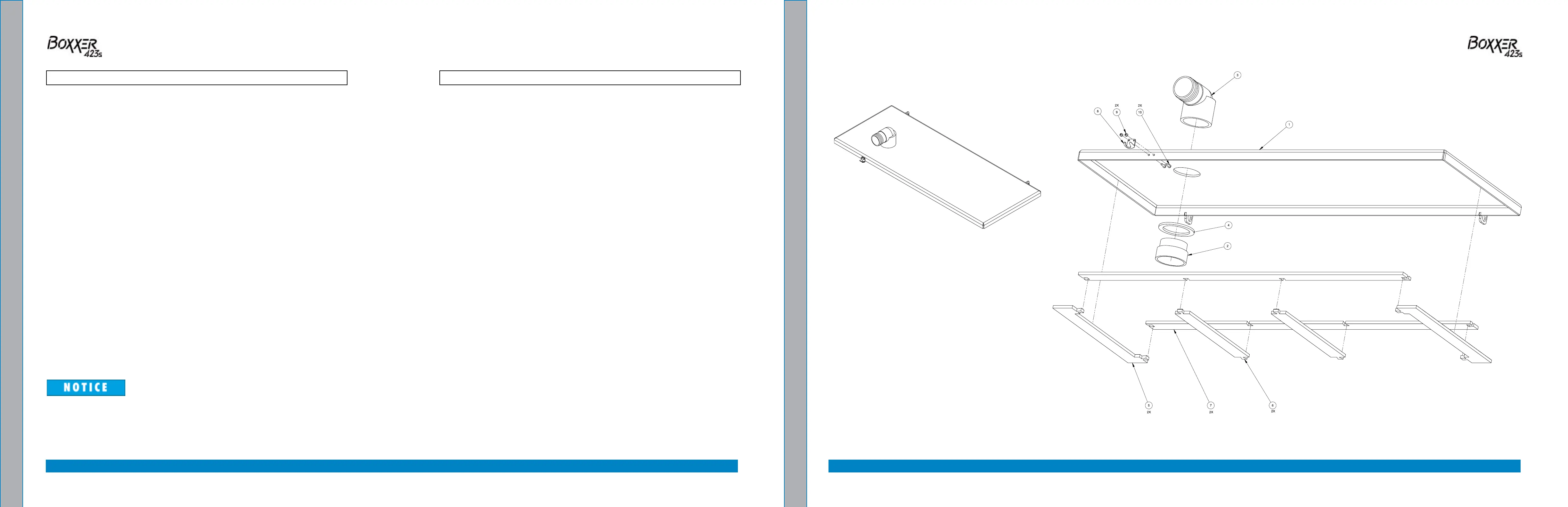

Figure 9-32. 70 Gallon Universal Recovery Tank (URT) Cover Assembly
610-029-726 Rev. A
