HydraMaster Boxxer 423s - Exhaust Diverted Assembly Parts List; Figure 9-28. Exhaust Diverted Assembly

9-38: Assemblies and Parts Lists 9-39: Assemblies and Parts Lists

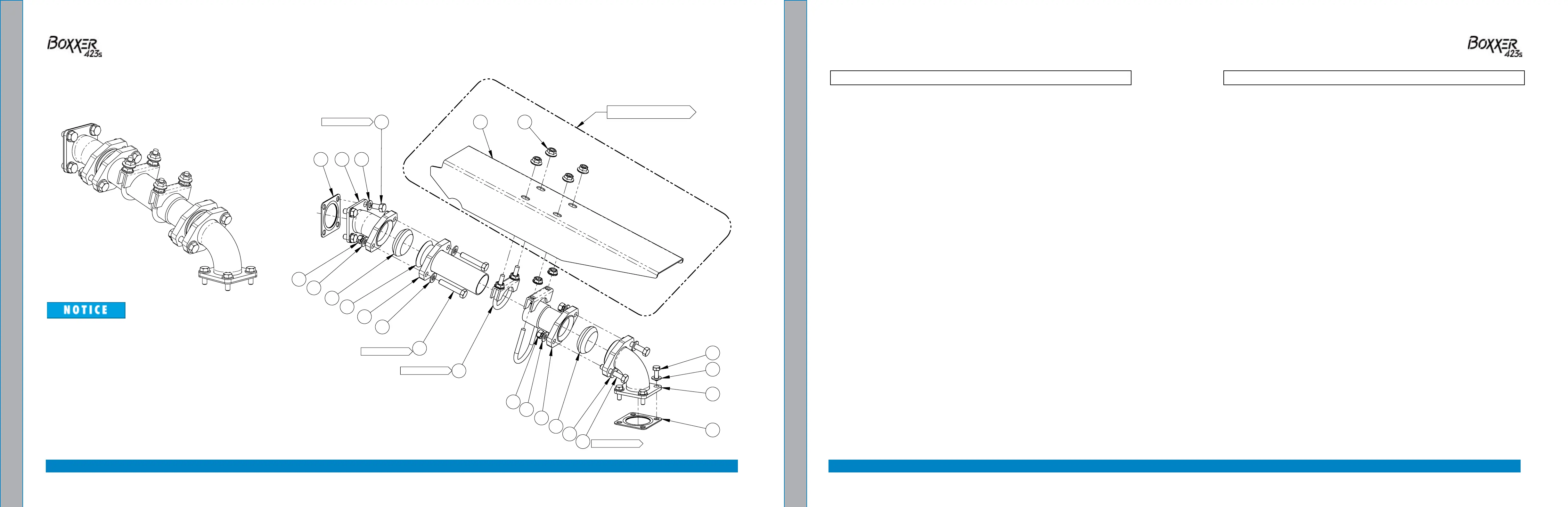

Figure 9-28. Exhaust Diverted Assembly
610-013-005 Rev. C
8
4X
6
14
6 12
5
15
2X
4
7
2X
15
2X
1
13
5
3
10
2X
16
4X
11
4X
16
4X
9
4X
2
2X
15
2X
10
2X
15
2X
7
2X
SEALANT E2
SEALANT E2
SEALANT E2
SEALANT E2
INSTALL AFTER EXHAUST
ASSEMBLY 610-013-728
See Figure 9-1 for sealant information.
Exhaust Diverted Assembly Parts List
1 000-001-116 Adapter, N1.50” F Slip to Flare 1
2 000-033-068 Clamp, 1-1/2” Exhaust 2
3 000-041-043 Cover, Diverter Exhaust 1
4 000-105-181 Flange, Ø1.50” Exhaust Donut - Coated 1
5 000-057-199 Gasket, Exhaust Donut 2
6 000-057-146 Gasket, Four Hole Exhaust 2
7 000-094-081 Nut, 5/16”-18UNC Hex 2 Way Locking 4
8 000-094-078 Nut, 5/16-18UNC Hex Flange 4
9 000-143-001 Screw, 1/4”-20UNC X 3/4” Lg. Hex Head 4
10 000-143-124 Screw, 5/16”-18UNC X 1.75” Lg. Hex Head 4
11 000-143-572 Screw, 5/16-18UNC X 5/8” Lg. Grd. 5 Hex Head 4
12 000-125-199 Tube, Exhaust Divert - Weldment 1
13 000-125-266 Tube, Exhaust 4.60” Lg. w/ Flare 1
14 000-125-265 Tube, Exhaust Divert - Weldment 1
15 000-174-049 Washer, 5/16” Flat 8
16 000-174-069 Washer, 5/16” Inconel Belleville 8
Item Part Number Description Qty Item Part Number Description Qty
