HydraMaster Boxxer 423s - Figure 9-23. Idler Pulley Assembly; Idler Pulley Assembly Parts List; Silencer Assembly Parts List

9-32: Assemblies and Parts Lists 9-33: Assemblies and Parts Lists

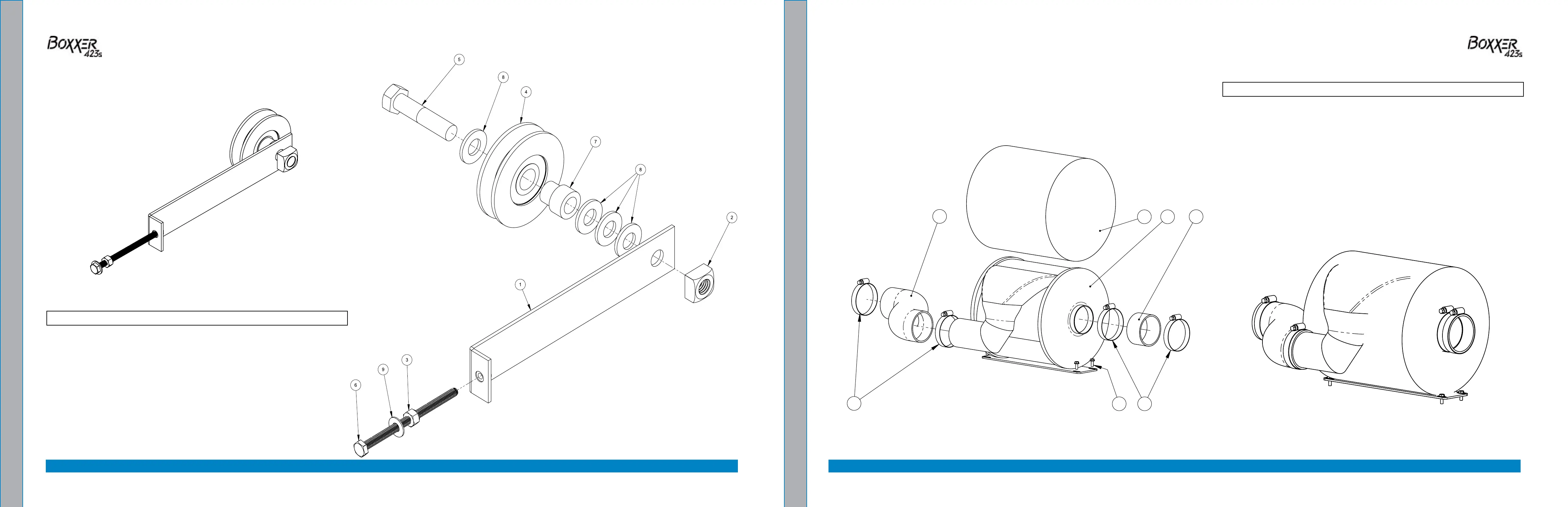

Figure 9-23. Idler Pulley Assembly
610-021-015 Rev. A
1 000-015-942 Bracket, Idler Tension - Coated 1
2 000-094-119 Nut, 1/2-13UNC Zinc Plated Square 1
3 000-094-009 Nut, 1/4”-20UNC Nylock 1
4 000-109-093 Pulley, 3” “A” Sect. Ball Bearing Assembly 1
5 000-143-041 Screw, 1/2-13UNC X 2-1/4” HHC 1
6 000-143-376 Screw, 1/4-20UNC X 4” Lg. S/S- Full Thread 1
7 000-154-049 Spacer, Pump Idler Mounting - Coated 1
8 000-174-012 Washer, 1/2 SAE H/D 4
9 000-174-003 Washer, 1/4” Flat 1
Item Part Number Description Qty
Idler Pulley Assembly Parts List
Silencer Assembly Parts List
1 000-033-011 Clamp, Size #36 Hose 4
2 000-068-984 Hose, 2.5” Heat Flex NS X 1.5” Lg. 1
3 000-068-985 Hose, 2.5” Heat Flex NS X 12” Lg. 1
4 000-108-036 Protector, Silencer 1
5 000-143-583 Screw, #10-24UNC X 0.50” Lg. Hex Head Flange Z/P 4
6 000-093-022 Silencer, 2.5” Cowl 1
Item Part Number Description Qty
Figure 9-24. Silencer Assembly
610-021-728 Rev. A
1
3
4
2
15
4X
6
