HydraMaster Boxxer 423s - Figure 9-25. Water Box Assembly; Water Box Assembly Parts List

9-34: Assemblies and Parts Lists 9-35: Assemblies and Parts Lists

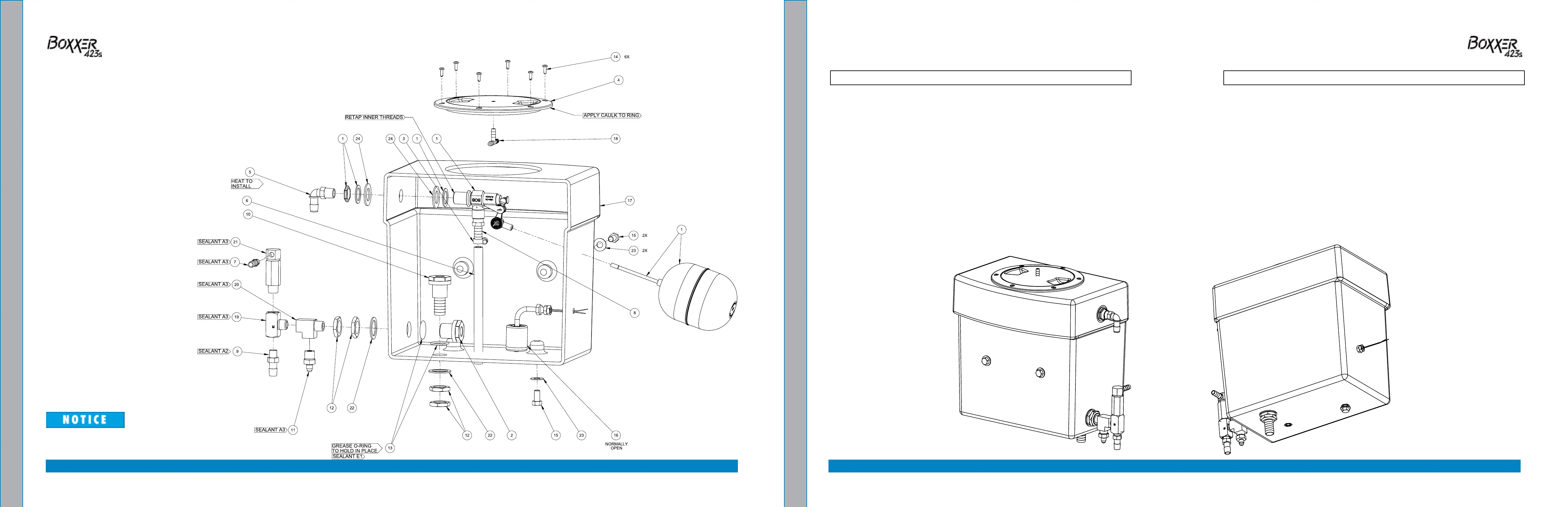

Figure 9-25. Water Box Assembly
610-010-728 Rev. C
See Figure 9-1 for adhesive and
sealant information.
Water Box Assembly Parts List
1 000-169-235 Assembly, Float Valve 1
2 000-052-660 Bulkhead, 3/8” FPT X 3/8” FPT 1
3 000-033-003 Clamp, Size #4 Mini Hose 1
4 000-041-005 Cover, 6” Access 1
5 000-052-355 Elbow, 3/8” NPT X 1/2” Hose, GFBN 1
6 000-068-827 Hose, 3/8” Clear w/ Braid X 8” Lg. 1
7 000-052-099 Insert, #26 (1/8” NPT X 3/8” Barb) 1
8 000-052-105 Insert, #68 (3/8” NPT X 1/2” Barb) 1
9 000-052-056 Insert, #68 GFBN 1
10 000-052-661 Insert, 3/4” Barb X Straight 1
11 000-052-662 Nipple, 3/8” NPT X 1/4” M SAE 1
12 000-094-097 Nut, 1”-14UNS Brass 4
13 000-097-041 O-Ring, 1/2” Bulk Head 2
14 000-143-314 Screw, #8 X 1/2” Lg. Pan Head 6
15 000-143-017-1 Screw, 3/8”-16UNC X 3/4” Lg. Hex Head 3
16 000-157-163 Switch, w/Protector, Polypropylene Barrel, Modied 1
17 000-159-190 Tank, Poly Water Box - 4 Gallon - Modied 1
18 000-052-156 Tee, 1/4” Plastic 1
19 000-052-447 Tee, 3/8” NPT Male Branch 1
20 000-052-023 Tee, 3/8” NPT Male Street 1
21 000-169-011 Valve, Hi Temp Control 180 Degrees 1
22 000-174-063 Washer, 1.5” O.D. X 1.073” I.D. X 0.075” Thk. 2
23 000-174-032 Washer, 3/8” Flat 3
24 000-174-028 Washer, 7/8” I.D. X 1.50” O.D. X 0.090” Thk. 2
Item Part Number Description Qty Item Part Number Description Qty
