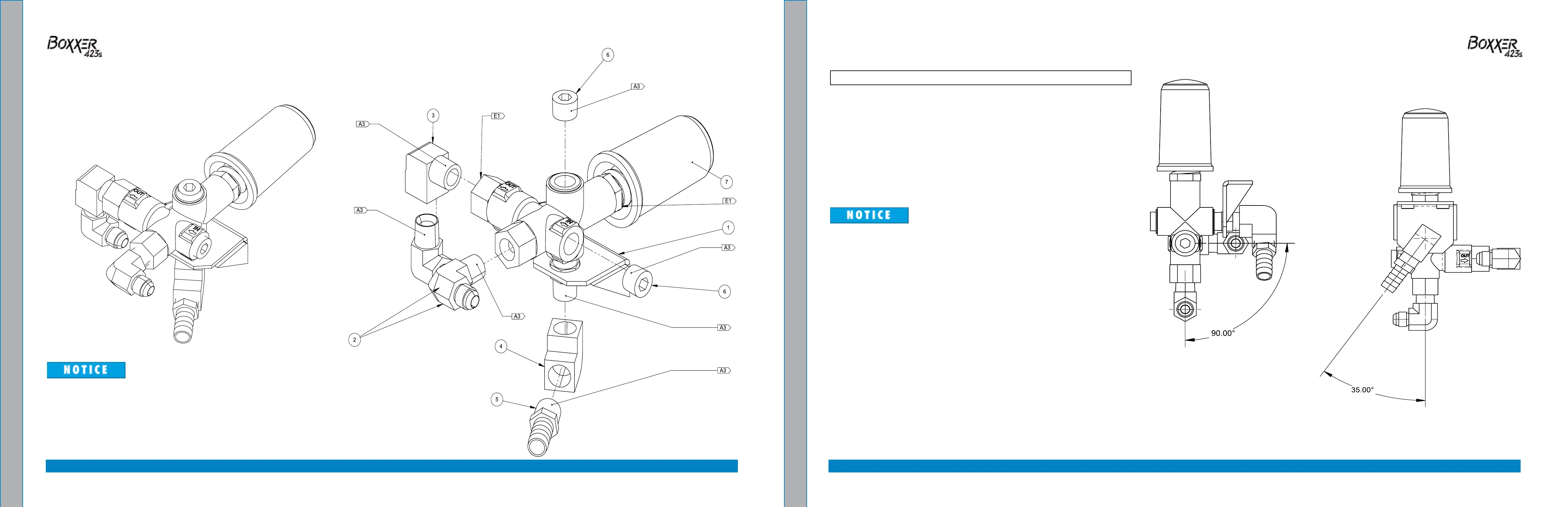

Figure 9-16. By-Pass Valve Assembly
610-009-728 Rev. C
See Figure 9-1 for sealant information.
By-Pass Valve Assembly Parts List
1 000-015-515 Bracket, By-Pass Valve Mount - Weldment 1
2 000-052-766 Elbow, 3/8 NPT X 3/8 JIC 2
3 000-052-086 Elbow, 3/8” NPT Street 1
4 000-052-142 Elbow, 3/8” F X F Brass 1
5 000-052-105 Insert, #68 (3/8” NPT X 1/2” Barb) 1
6 000-106-008 Plug, 3/8” NPT Allen Head 2
7 000-169-351 Valve, Pressure Regulator-Modied * 1
Item Part Number Description Qty
* Order P/N 000-078-582 for the valve repair kit.
