HydraMaster Boxxer 423s - Engine Assembly Parts List

9-28: Assemblies and Parts Lists 9-29: Assemblies and Parts Lists

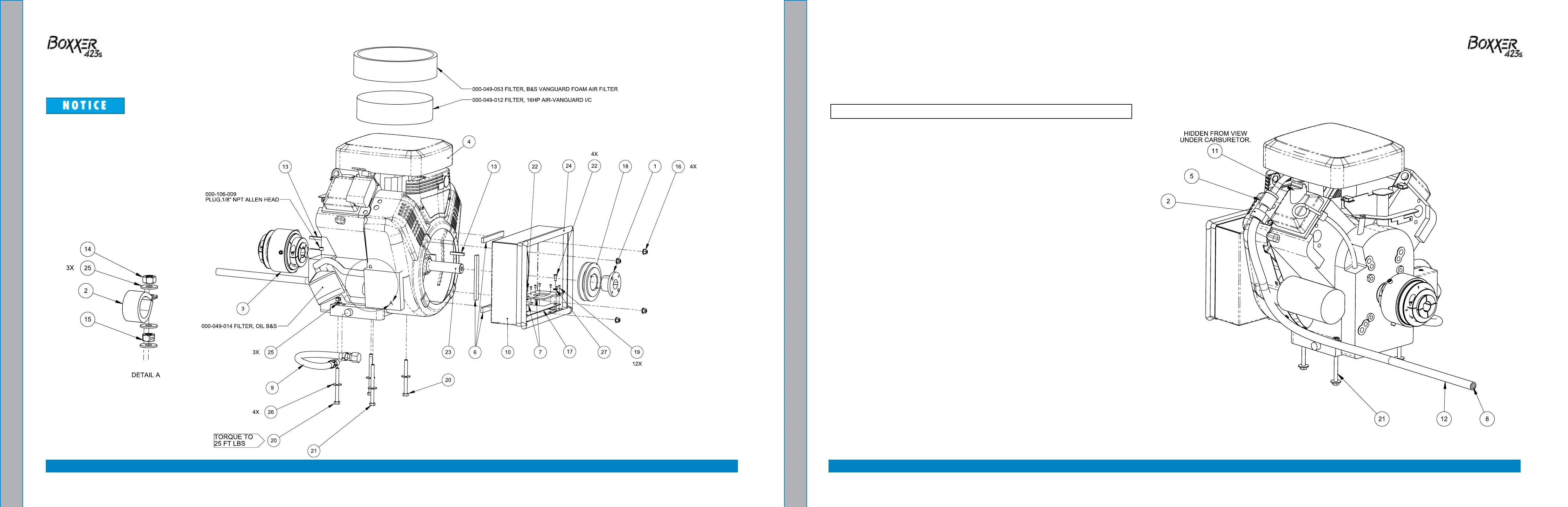

Figure 9-20. Engine Assembly - View 1 of 2
610-004-728 Rev. E
See Figure 9-1 for adhesive/sealant information.
Engine Assembly Parts List
1 000-020-025 Bushing, H X 1” 1
2 000-033-117 Clamp, 1” Cushion Loop w/ 7/16 Mount Hole 2
3 000-039-054 Coupler, 40 Series 1
4 000-047-037 Engine, 23HP 1
5 000-049-258 Filter, Fuel (Comes w/ Engine) 1
6 000-057-026 Gasket, 1/2” X 1/4” X 18-1/8” Lg. 2
7 000-057-226 Gasket, Engine Duct 2
8 000-068-979 Hose, 1/4” I.D. Fuel Low Perm X 120” Lg. 1
9 000-068-219 Hose, Drain 1
10 000-042-074 Housing, Radiator Duct - Coated 1
11 000-052-293 Insert, #23 (1/8” NPT X 3/16” Barb) 1
12 000-131-139 Insulation, 1” Hi-Temp Alum Sleeve X 60” Lg. 1
13 000-077-010 Key, 1/4” X 1-1/2” Lg. Class 2 Fit 2
14 000-094-012 Nut, 5/16”-18UNC Hex 1
15 000-094-081 Nut, 5/16”-18UNC Hex 2 Way Locking 4
16 000-094-125 Nut, 6mm Hex Nylock Flange S/S 4
17 000-105-562 Plate, Engine Duct - Coated 1
18 000-109-040 Pulley, AK47-H 1
19 000-140-001 Rivet, AB4-3A Aluminum Pop 1/8” X 1/4” Lg. 12
20 000-143-659 Screw, 5/16”-18UNC X 3.5” Lg. Grade 8 2
21 000-143-660 Screw, 5/16”-18UNC X 4.0” Lg., Hex Head 2
22 000-143-126 Screw, #10-24UNC X 0.50” Lg. Hex Head 4
23 000-150-169 Shaft, 23HP Stub 1
24 000-131-060 Trimlok, 3/4” Bulb X 3/16” Opening (40” Lg.) 1
25 000-174-002 Washer, 1/4” Flat 6
26 000-174-004 Washer, 5/16” Flat, Uss 4
27 000-174-001 Washer, #10 Flat 4
Item Part Number Description Qty
Figure 9-21. Engine Assembly - View 2 of 2
610-004-728 Rev. E
