HydraMaster Boxxer 423s - Exhaust Diverter Valve Assembly Parts List; Figure 9-31. 70 Gallon Universal Recovery Tank (URT) Assembly

9-42: Assemblies and Parts Lists 9-43: Assemblies and Parts Lists
Exhaust Diverter Valve Assembly Parts List
1 000-015-642 Bracket, Air Cylinder Actuation - Coated 1
2 000-033-068 Clamp, 1-1/2” Exhaust 1
3 000-041-031 Cover, Diverter 1
4 000-057-146 Gasket, Four Hole Exhaust 3
5 000-094-027 Nut, #10-24UNC Hex 2
6 000-103-005 Pin, Roll - 0.125” X 0.500” Lg. 1
7 000-106-120 Plug, M18 X 1.5 1
8 000-138-010 Retainer, Leaf Spring 1
9 000-143-001 Screw, 1/4”-20UNC X 3/4” Lg. Hex Head 4
10 000-143-572 Screw, 5/16-18UNC X 5/8” Lg. Grd. 5 Hex Head 8
11 000-143-132 Screw, #10-24UNC X 0.75” Lg. Hex Head 2
12 000-155-030 Spring, Leaf - Weldment 1
13 000-125-268 Tube Exhaust - Weldment 1
14 000-125-139 Tube Exhaust - Weldment 1
15 000-169-045 Valve, Cast Exhaust Diverter 1
16 000-174-069 Washer, 5/16” Inconel Belleville 12
17 000-174-001 Washer, #10 Flat 2
Item Part Number Description Qty Item Part Number Description Qty
The APO is optional
equipment. The lower oat
switch is only used when
the APO is installed.

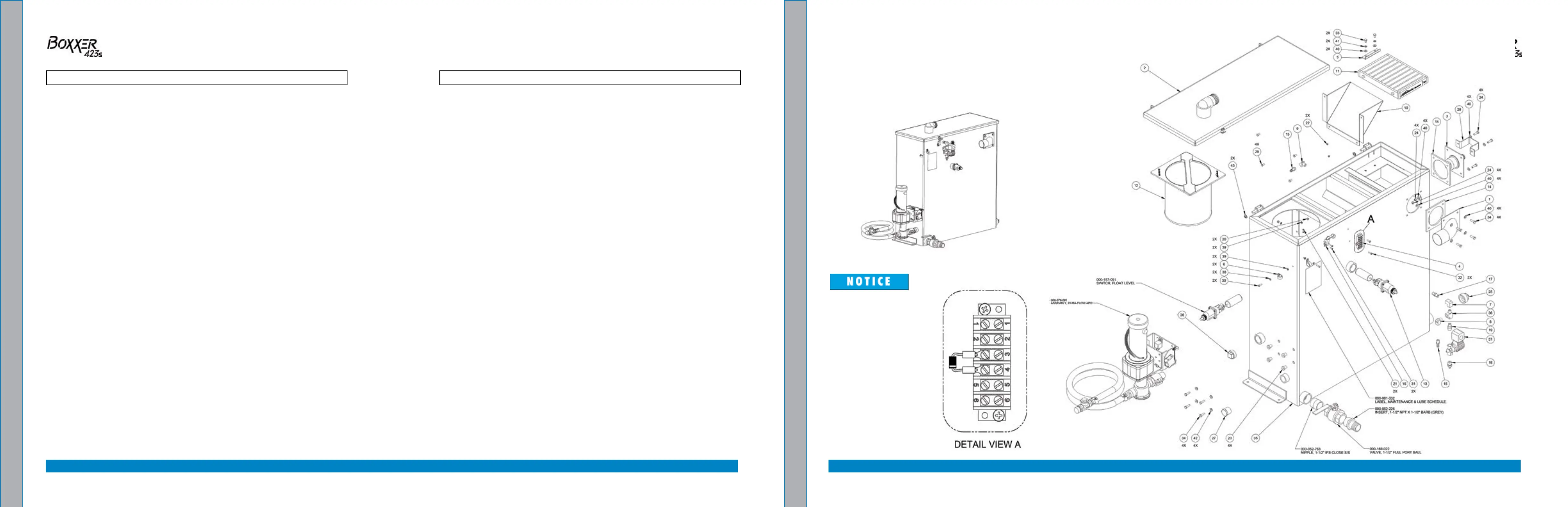

Figure 9-31. 70 Gallon Universal Recovery Tank (URT) Assembly
610-003-728 Rev. B
