HydraMaster Boxxer 423s - Electrical Panel Assembly Parts List

9-26: Assemblies and Parts Lists 9-27: Assemblies and Parts Lists

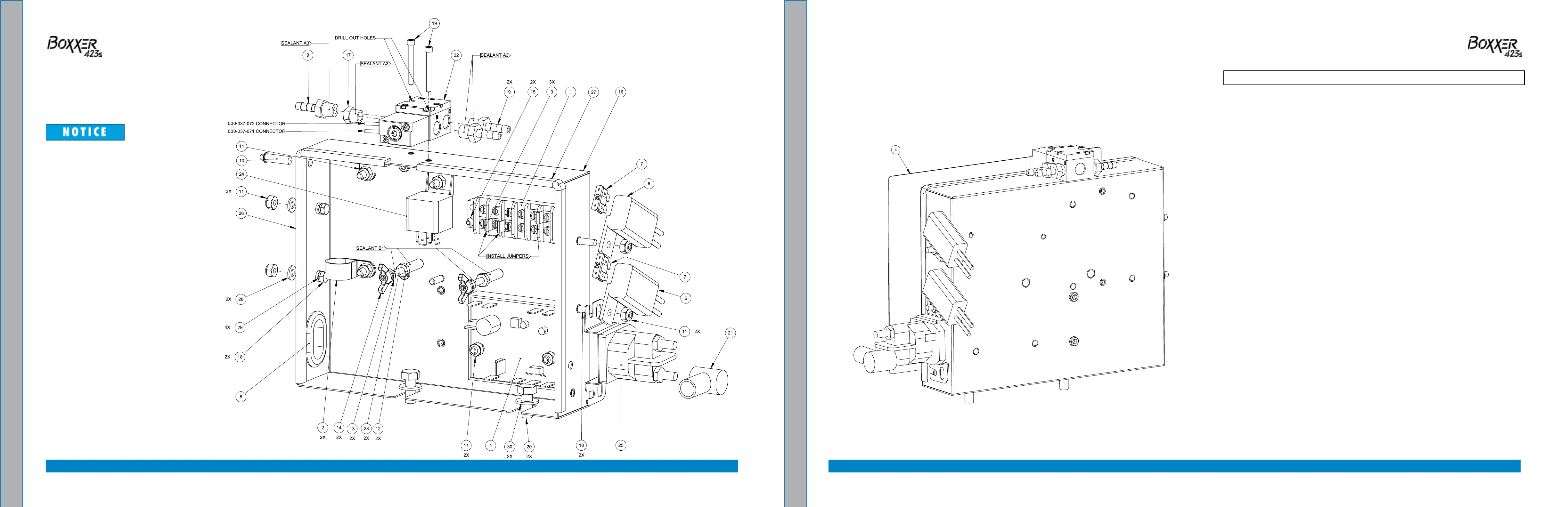

Figure 9-18. Electrical Panel Assembly - View 1 of 2
610-011-728 Rev. B
See Figure 9-1 for sealant information.
Electrical Panel Assembly Parts List
1 000-012-002 Block, 6 Post Terminal 1
2 000-033-023 Clamp, 3/4” Nylon Hose 2
3 000-037-011 Connector, Jumper Terminal Block 3
4 000-074-125 Controller, Temp Single Analog Input - RTD 1
5 000-041-478 Cover, Electrical Panel - Coated 1
6 000-056-006 Fuse Holder, In-Line - Weatherproof 2
7 000-056-011 Fuse, 30 Amp 2
8 000-060-014 Grommet, 1.00” I.D. X 1.50” O.D. 1
9 000-052-293 Insert, #23 (1/8” NPT X 3/16” Barb) 3
10 000-084-010 Light, Green LED Indicator Mini 1
11 000-094-034 Nut, #10-24UNC Nylock 9
12 000-094-003 Nut, #10-32UNF Hex 2
13 000-094-058 Nut, #10-32UNF Nylock 2
14 000-094-108 Nut, #10-32UNF Wing 2
15 000-094-063 Nut, #6-32UNC Nylock 2
16 000-100-182 Panel, Electrical - Universal - Coated 1
17 000-106-014 Plug, Vent 1
18 000-143-132 Screw, #10-24UNC X 0.75” Lg. Hex Head 4
19 000-143-700 Screw, #6-32UNC X 1.25” Lg. Socket Head 2
20 000-143-012 Screw, 5/16”-18UNC X 3/4” Lg. 2
21 000-152-009 Sleeve, Solenoid Insulator 1
22 000-169-226 Solenoid, Air Actuator 4- Way Valve 1
23 000-156-040 Stud, #10-32 X 2.25” Lg. 2
24 000-157-022 Switch, Relay 1
25 000-157-012 Switch, Starter Solenoid 14HP (Comes w/ Engine) 1
26 000-131-131 Trimlok, 3/8” X 1/8” X 10 1/8” Lg. 1
27 000-131-131 Trimlok, 3/8” X 1/8” X 12” Lg. 1
28 000-174-001 Washer, #10 Flat 2
29 000-174-014 Washer, #10 Lock 4
30 000-174-049 Washer, 5/16” Flat 2
Item Part Number Description Qty
Figure 9-19. Electrical Panel Assembly - View 2 of 2
610-011-728 Rev. B
