HydraMaster Boxxer 423s - Exhaust Assembly Parts List; Exhaust Manifold Assembly Parts List; Figure 9-26. Exhaust Assembly; Figure 9-27. Exhaust Manifold Assembly

9-36: Assemblies and Parts Lists 9-37: Assemblies and Parts Lists

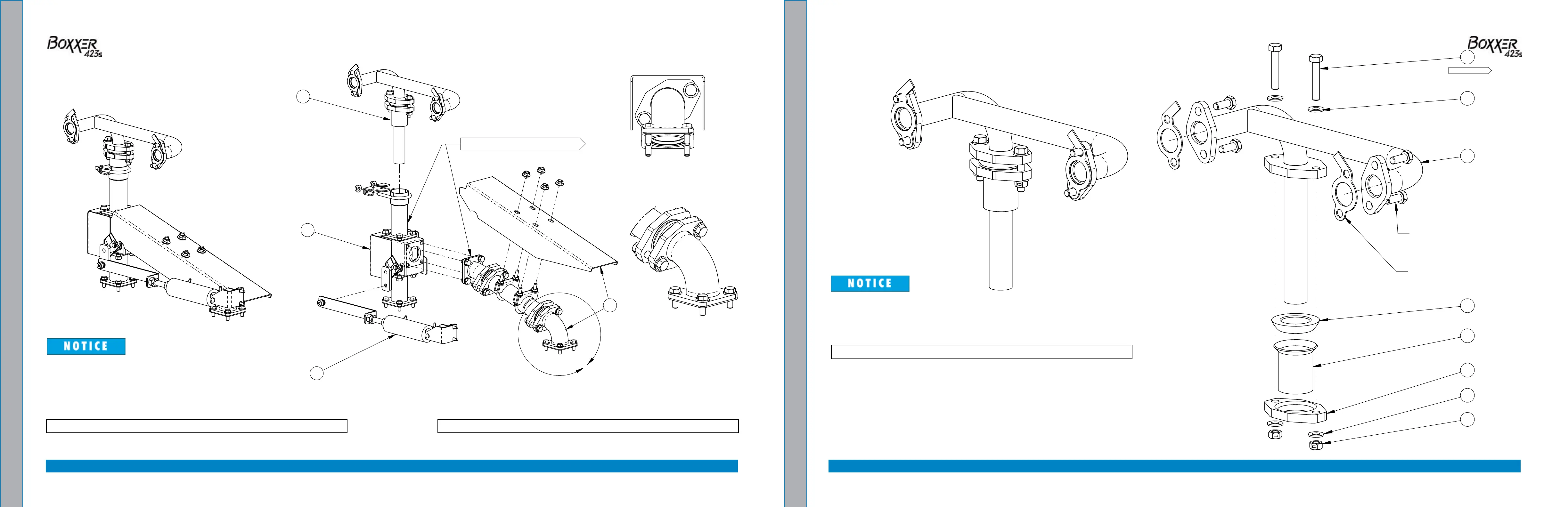

Figure 9-26. Exhaust Assembly
610-013-728 Rev. B
Exhaust Assembly Parts List
1 610-014-728 Assembly, Diverter Valve Actuator 1
2 610-013-005 Assembly, Exhaust Diverted 1
Item Part Number Description Qty
A
2
3
4
1
ATTACH THESE TWO SUB-ASSEMBLIES
BEFORE INSTALLATION ON MACHINE
DETAIL A
SCALE 1 : 2
Item Part Number Description Qty
3 610-013-003 Assembly, Exhaust Diverter Valve 1
4 610-013-002 Assembly, Exhaust Manifold 1
Assemble items 1 - 4 separately, before installing Exhaust
Assembly.
Figure 9-27. Exhaust Manifold Assembly
610-013-002 Rev. B
Exhaust Manifold Assembly Parts List
1 000-105-181 Flange, Ø1.50” Exhaust Donut - Coated 1
2 000-057-212 Gasket, Half Donut 1
3 000-090-001 Manifold Exhaust - Weldment 1
4 000-094-081 Nut, 5/16”-18UNC Hex 2 Way Locking 2
5 000-143-124 Screw, 5/16”-18UNC X 1.75” Lg. Hex Head 2
6 000-125-137 Tube, Exhaust 2.00” Lg. w/ Flare 1
7 000-174-049 Washer, 5/16” Flat 4
Item Part Number Description Qty
5
2X
7
2X
2
6
1
7
2X
4
2X
3
000-057-082
GASKET, EXHAUST MANIFOLD
000-143-185
SCREW, 8MM X 20MM GR. 8.8 HEX HEAD
SEALANT E2
See Figure 9-1 for sealant information.
