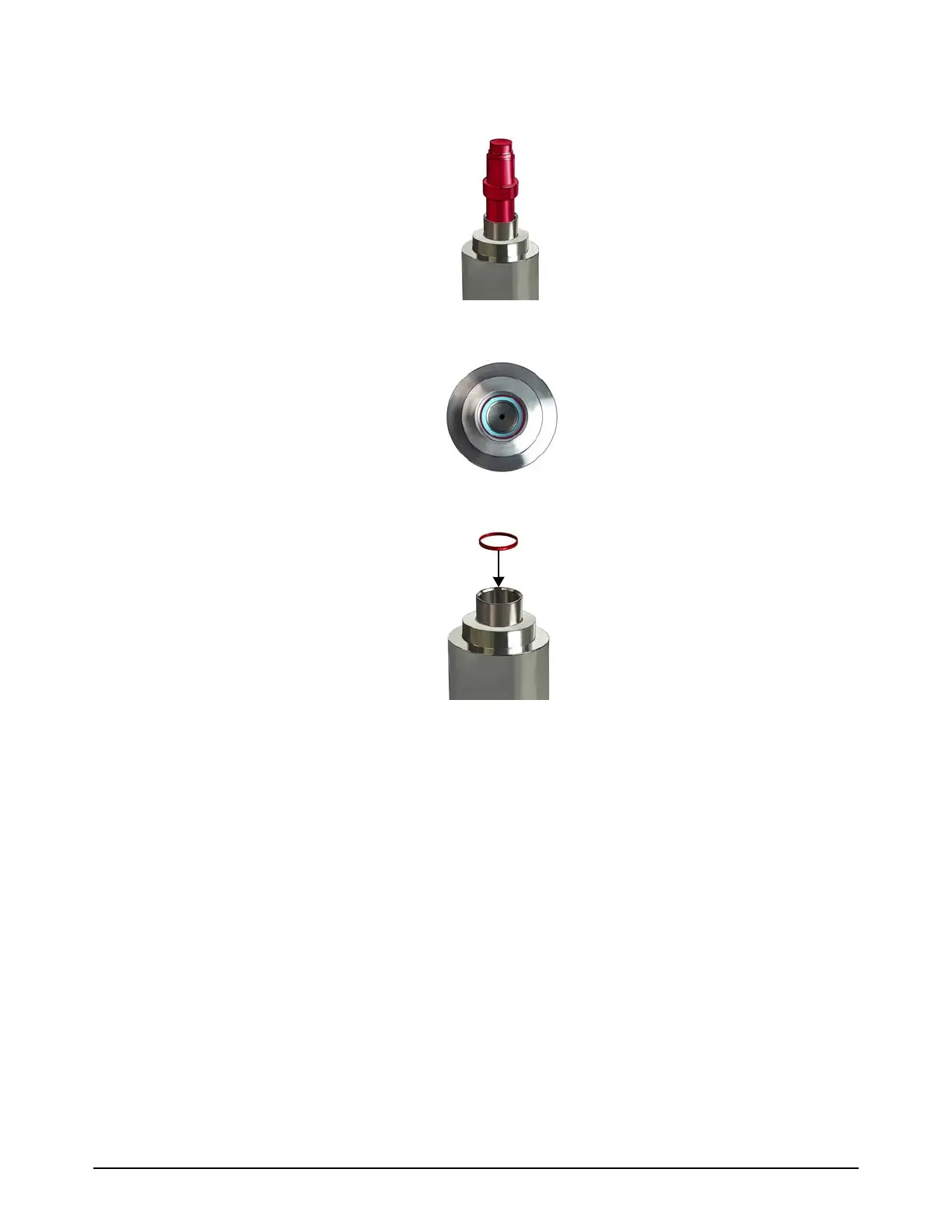

13. Put the push tool into the insertion sleeve with the stepped end up. Apply even pressure while
holding the sleeve tightly against the cylinder.
14. Remove the push tool from the insertion sleeve.
15. Make sure that the seal is installed in the cylinder correctly.
16. Put the hoop into the insertion sleeve with the sharp edge toward the cylinder.
17. Put the push tool into the insertion sleeve with the stepped end up. Tap the push tool sleeve
with a rubber mallet until the push tool touches the sleeve.
18. Hold the sleeve tightly in the cylinder while tapping the push tool.
19. Remove the seal insertion push tool, the sleeve, and the locator.
