216 811390 Operator Manual DynaMAX 550P/560P/575P Waterjet Pump
Intensifier Control

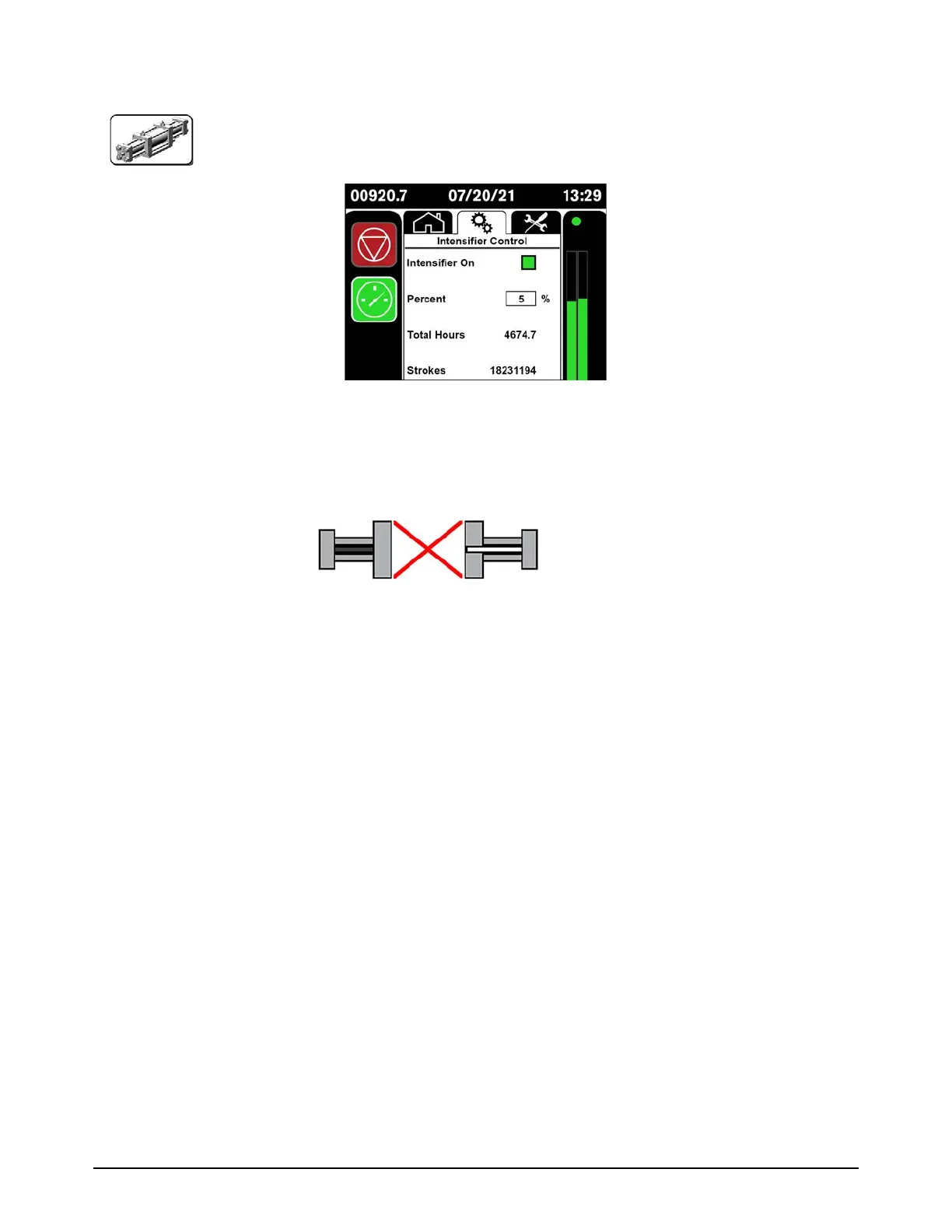

Intensifier On Touch the box to engage and disengage the intensifier.
When intensifier control is on, the Intensifier On box is green.
When intensifier control is off:
• the Intensifier On box is gray.
• the primary screen shows a red X on the intensifier symbol.
Percent Overstroke percent is the increased stroke rate that is permitted before an overstroke
fault condition occurs.
The maximum intensifier stroke rate is calculated using the motor wattage and the size
of the hydraulic pump. The rate can be adjusted to compensate for variations in
plumbing configurations and flow rates.
Touch the field to open a keypad.
Enter the maximum overstroke percentage permitted before a fault occurs.
Tot al Hours This shows the total hours that the intensifier has been in operation.
Strokes This shows the total number of strokes on the intensifier.
A stroke is counted each time a proximity switch is activated.
