Installation
DynaMAX 550P/560P/575P Waterjet Pump Operator Manual 811390 193
Install the pump
Install the pump in a location that agrees with the requirements and recommendations for this equipment.
Refer to the specific pump model in the Specifications section of this manual.
Level the pump
Parts, tools, and materials

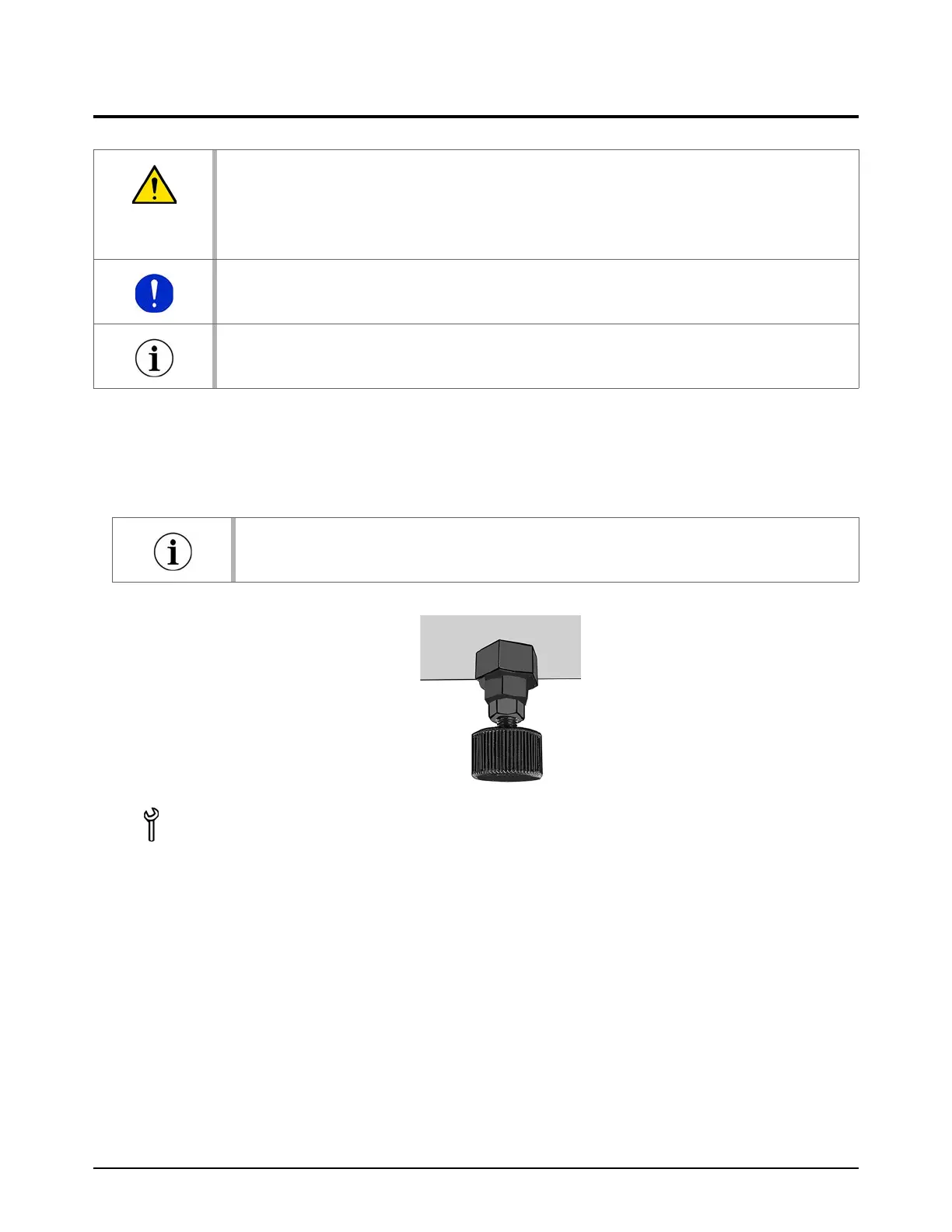

When the pump is in position, level the unit. There are 2 nuts on each leveling foot on the corners of
the frame. Use the lower nut to set the height. The upper nut tightens against the pump frame to
keep the leveling foot from moving.
CAUTION
Hydraulic, water, and electrical connections can become loose during shipping and normal
operation. Examine all connections at installation and during regular maintenance.
Make sure that all connections, fasteners, locking devices, hoses, and fittings are tight before
starting the pump.
To connect the pump directly to an external control device, such as a CNC, refer to the CNC
manual.
These instructions are for a typical installation. It could be necessary to install the components
in a different order.
Hypertherm recommends installing this pump on a level surface with a difference in height
of not more than 8 cm (1/4 inch) between opposite ends.
Two 1-1/8-inch open-ended wrenches
Level
