Installation
194 811390 Operator Manual DynaMAX 550P/560P/575P Waterjet Pump
Install the pump-mounted plumbing kit (optional)
Parts, tools, and materials

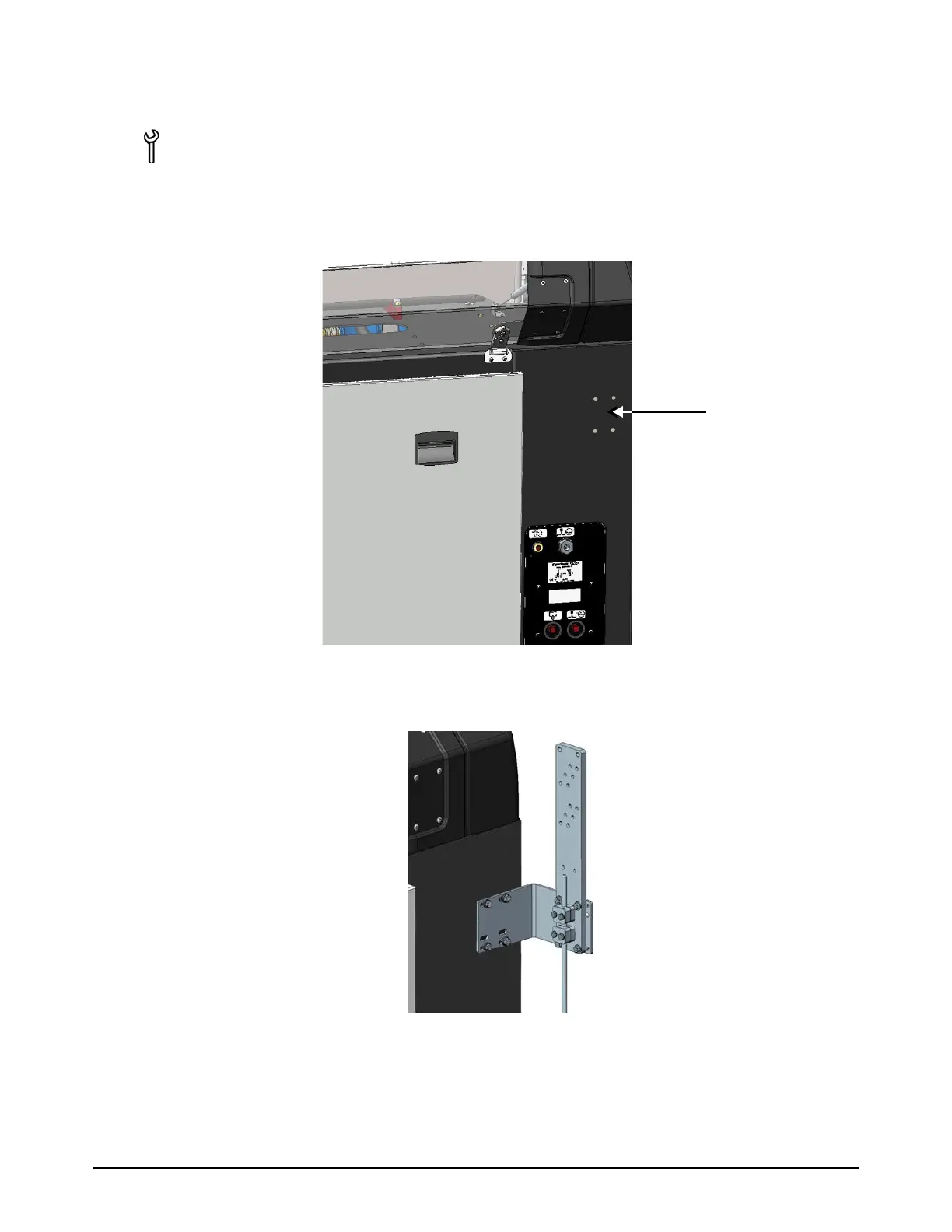

1. Find the mounting holes for the plumbing kit on the rear of the pump.
2. Install the angle plate on the pump frame.
3. Use the included hardware to mount the high-pressure tubing whip bracket on the angle plate.
4. After the high-pressure tubing is connected to the utility panel, install the high-pressure tubing
clamps on the whip bracket.
Pump-mounted plumbing kit
Set of standard wrenches
To Next Page
