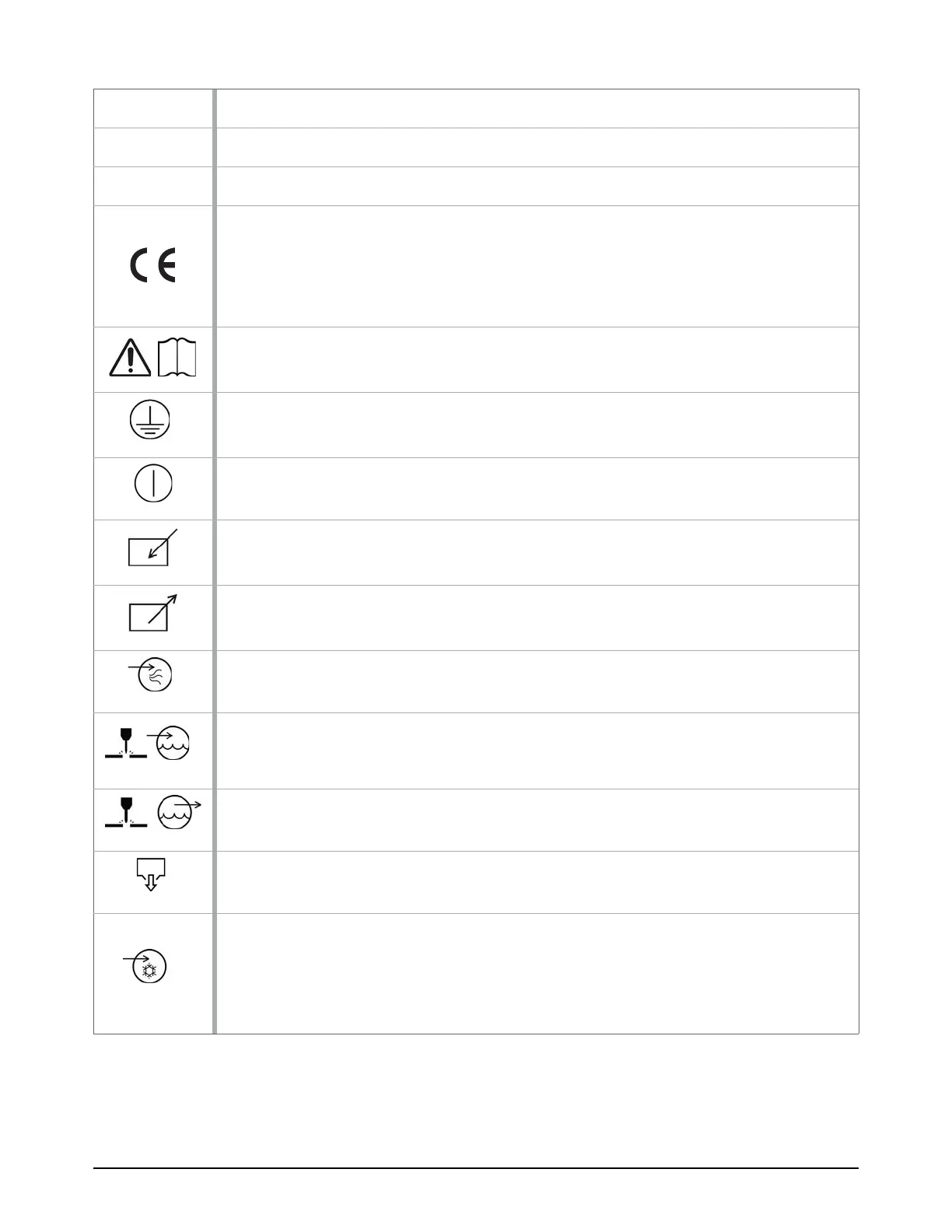

Symbols and marks
DynaMAX 550P/560P/575P Waterjet Pump Operator Manual 811390 29
bar
Maximum outlet water pressure (bar)
kg
Weight (kilograms)
DWG
Electrical enclosure and schematic drawing number
The Conformité Européene (CE) mark affixed to a product signifies the manufacturer’s
Declaration of Incorporation to applicable European directives and standards.
Only those versions of Hypertherm products with a CE mark on or near the data plate have
been tested for compliance with the applicable European directives, such as the Low Voltage
Directive, the Electromagnetic Compatibility Directive, and the Machinery Directive.
Use caution when operating this equipment.
Refer to the manual. Read and fully understand all of the safety guidelines in this manual.
Identifies the terminal of a protective earth (ground) electrode or a terminal intended to
connect to an external conductor for protection against electric shock during a fault condition
Control circuit on
Remote key switch off
The key switch is in the L
OCAL position.
Remote key switch on
The key switch is in the R
EMOTE position.
COMPRESSED AIR
The bleed-down valve uses compressed air to operate.
CUTTING WATER IN
This line carries low-pressure water from a water softener, a reverse osmosis system, a well, or
a public utility to the pump.
CUTTING WATER OUT
This tubing carries high-pressure water from the intensifier to the cutting table.
WASTE WATER OUT
This hose carries water from the bleed-down valve to a drain.
COOLING IN
Water-cooled system: This line carries low-pressure water from the local utility or a chiller to
the pump’s cooling loop.
Air-cooled system: This line carries hydraulic fluid to the system from the external heat
exchanger.
