Hypertherm Powermax65 SYNC Reference Guide

Serial Communication Programmer Reference Guide
Powermax65/85/105 SYNC Reference Guide 810400 73

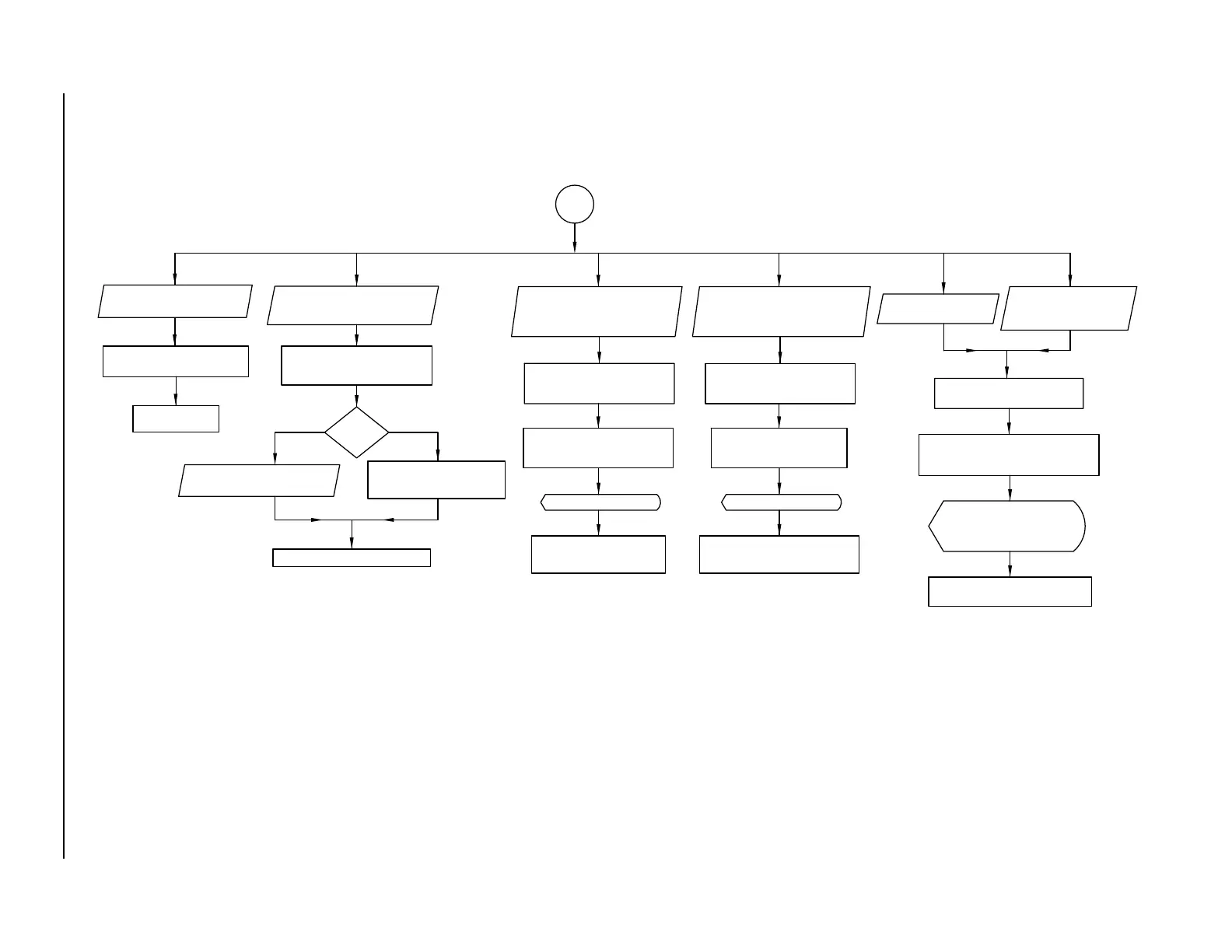

Figure 13 – SYNC faults that require action to continue to cut
0-11-1 REMOTE AMPERAGE
REQUESTED IS TOO HIGH OR LOW
FOR THE INSTALLED CARTRIDGE
(INVALID CNC REQUEST)
START ALLOWED, BUT NOT
RECOMMENDED UNTIL A
VALID AMPERAGE IS SET
FAULT CLEARS WHEN
AMPERAGE IS SET WITHIN
CARTRIDGE MIN/MAX
POWERMAX SETS TO
CARTRIDGE MAX (IF TOO HIGH)
OR MIN (IF TOO LOW)
0-50-0 CARTRIDGE IS OFF FAULT
(CARTRIDGE REMOVED WITHOUT
LOCKING THE TORCH)
USER INSTALLS CARTRIDGE
AND MAKES SURE THE TORCH
IS UNLOCKED
USER INSTALLS A CARTRIDGE
AND UNLOCKS THE TORCH
TYPICAL CARTRIDGE CHANGE,
0-50-1 TORCH IS LOCKED
CNC-INITIATED QUICK RESTART
(SEE QUICK RESTART EXAMPLE)
USER DOES QUICK RESTART
USING THE MAIN POWER
SWITCH
QUICK
RESTART
ENTER
BY CNC
COMMAND
BY MAIN POWER
SWITCH
FAULT CLEARS
AUTOMATICALLY
FAULT CLEARS AUTOMATICALLY
0-11-2 REMOTE PRESSURE
REQUESTED IS TOO HIGH OR LOW
FOR THE INSTALLED CARTRIDGE
(INVALID CNC REQUEST)
START ALLOWED, BUT NOT
RECOMMENDED UNTIL A
VALID PRESSURE IS SET
FAULT CLEARS WHEN PRESSURE
IS SET WITHIN CARTRIDGE
MIN/MAX
0-14-1 CARTRIDGE NOT
RECOGNIZED
START ALLOWED, BUT NOT
RECOMMENDED SINCE PARAMETERS
MAY NOT BE CORRECT
FAULT CLEARS WHEN CARTRIDGE
COMMUNICATION IS WORKING
SYNC
CNC GUIDES THE USER CNC GUIDES THE USER
POWERMAX SETS TO
CARTRIDGE MAX (IF TOO HIGH)
OR MIN (IF TOO LOW)
0-98-1 CARTRIDGE
0-98-2 TORCH
COMMUNICATION FAILURE
POWERMAX DEFAULTS TO 45A,
CUT MODE, CUT PRESSURE
CNC GUIDES THE USER TO
CORRECT THE PROBLEM OR
MUST SET THE MODE AND
AMPS MANUALLY
