IMPORTANT SAFETY INFORMATION
Loop
Sensor
Traffi c Light
(Optional)
Traffi c
Light
(Optional)
Non-Contact
Sensor Beam
Non-Contact
Sensor Beam
Arm Warning Sign (Both Sides)
Gate Operator
Warning Sign
(Both Sides)
Separate Pedestrian
Walkway
Separate
Pedestrian
Walkway
Speed
Limit
Sign
Speed
Bump
LED Lights
Bollards
(4 Each)
Barrier
Arm
Barrier
Arm
Eye
Eye
Gate
Operator
Pedestrian
Warning &
Hazard Stripes
SPEED
LIMIT
5
7
65
1 2
1
8
3
4 9 5
10
4
Speed
Bump
7
FRONT VIEW
TOP VIEW
Secure Side

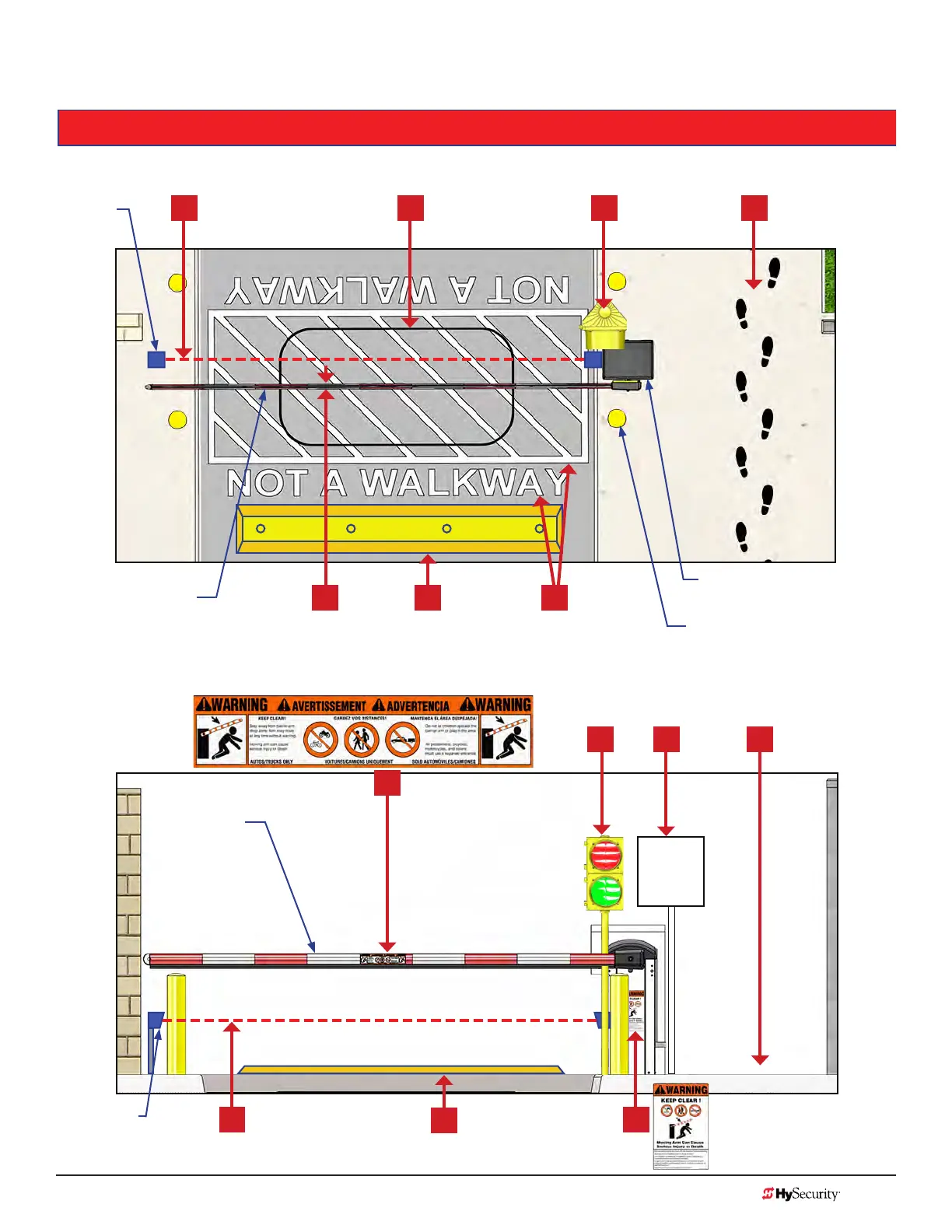

HySecurity Vertical Barrier Arm Safety and Traffi c Control
