16. Lower the tab onto the PCI adapter faceplate. Rotate the adapter locking latch clockwise until it

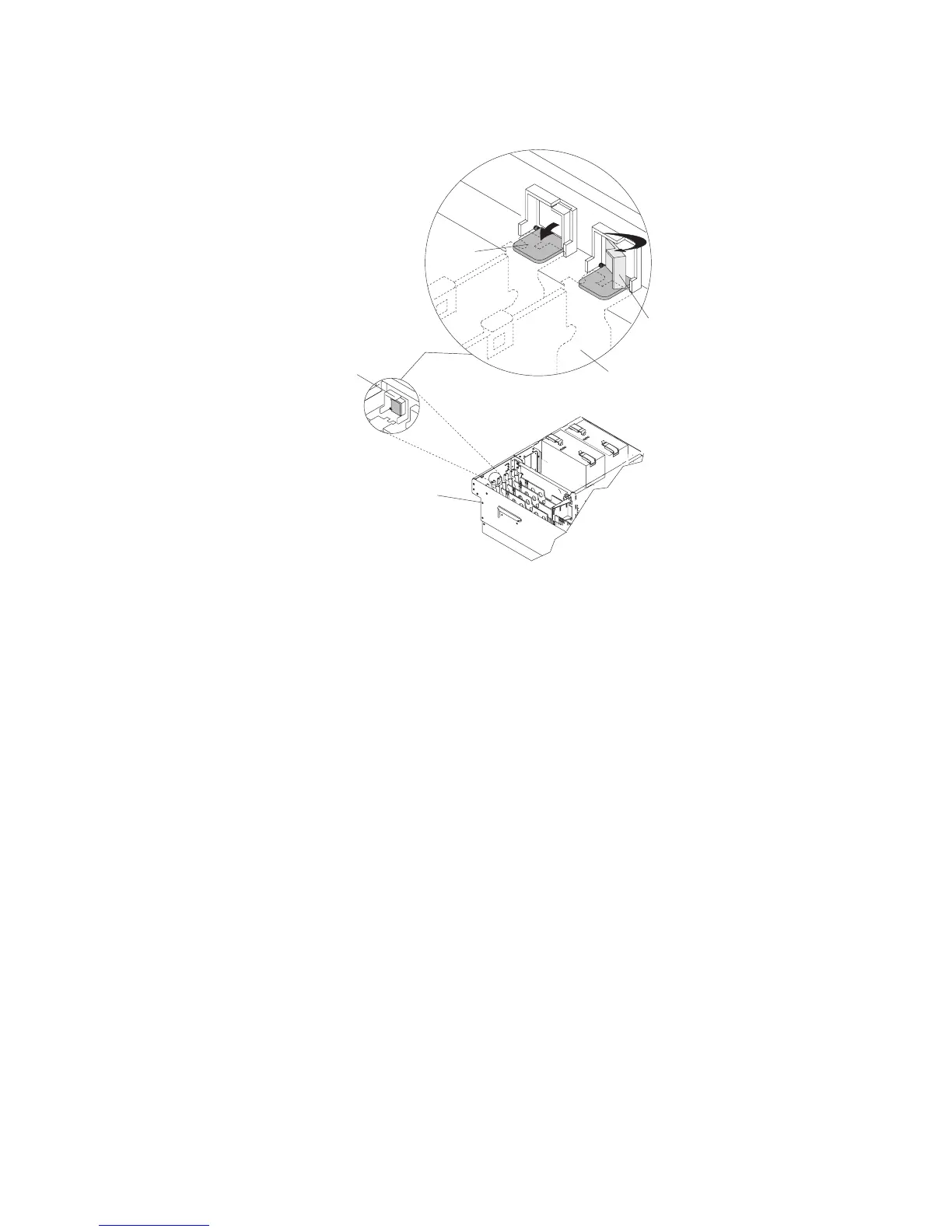

covers the tab at approximately a 45-degree angle. See the following illustration.
1
2
3
4
5
1 Model 6C3 or Model 6E3 4 Adapter Retainer Assembly (retainer seat
down and the locking latch in the locked
position)
2 Adapter Retainer Assembly (in the unlocked
position)
5 PCI adapter faceplate (dotted lines)
3 Adapter Retainer Assembly (retainer seat
down and the locking latch in the unlocked
position)
17. Connect the adapter cables.
18. If you are servicing a Model 6C3, route the cables through the cable-management arm.
19. Replace the service access cover as described in “Replacing the Model 6C3 Service Access Cover”
on page 288 or “Replacing the Model 6E3 Service Access Cover” on page 289.
20. Reconnect any cables that were connected to the PCI adapter at the rear of the system.
21. Reconnect the power source to the system.
22. Return the system to the operating position as described in “Returning the Model 6C3 to the
Operating Position” on page 285 or “Placing the Model 6E3 into the Service and Operating Position”
on page 286.
23. On a Model 6C3, close the rear rack door.
24. Start the system as described in “Starting the System” on page 283.
Chapter 9. Removal and Replacement Procedures 297
