IBM P 615 series User Manual

Model 6E3
2
3
4
5
6
8
12
11
10
9
7
1
Index Drive Name SCSI ID
1 Operator Panel
2 Diskette Drive
or IDE Optical Drive
Location code U0.1-P1-X1-D1 for a diskette drive or
U0.1-P1-X1/Q6-A1 for an optical drive
3 IDE CD-ROM (Default)
or IDE DVD-ROM (Optional)
IDE (Non-SCSI)
4
Tape Drive (Optional) SCSI ID 0
SCSI DVD-RAM (Optional) SCSI ID 0
5 Disk Drive 1 SCSI Bus 0 SCSI ID 3
6 Disk Drive 2 SCSI ID 4
7 Disk Drive 3 SCSI ID 5
8 Disk Drive 4 SCSI ID 8
9 Disk Drive 5 SCSI Bus 1 SCSI ID 3
10 Disk Drive 6 SCSI ID 4
11 Disk Drive 7 SCSI ID 5
12 Disk Drive 8 SCSI ID 8
Notes:
1. The SCSI bus IDs are the recommended values and indicate how the IDs are set when the system is
shipped from the factory. Field installations might not comply with these recommendations.
2. Media bay location D02 is designed to house one of the following optional devices:
v IDE Optical Drive
v Diskette Drive
Any SCSI device used in media bay location D04 must be connected to a PCI SCSI adapter.
System LED Locations

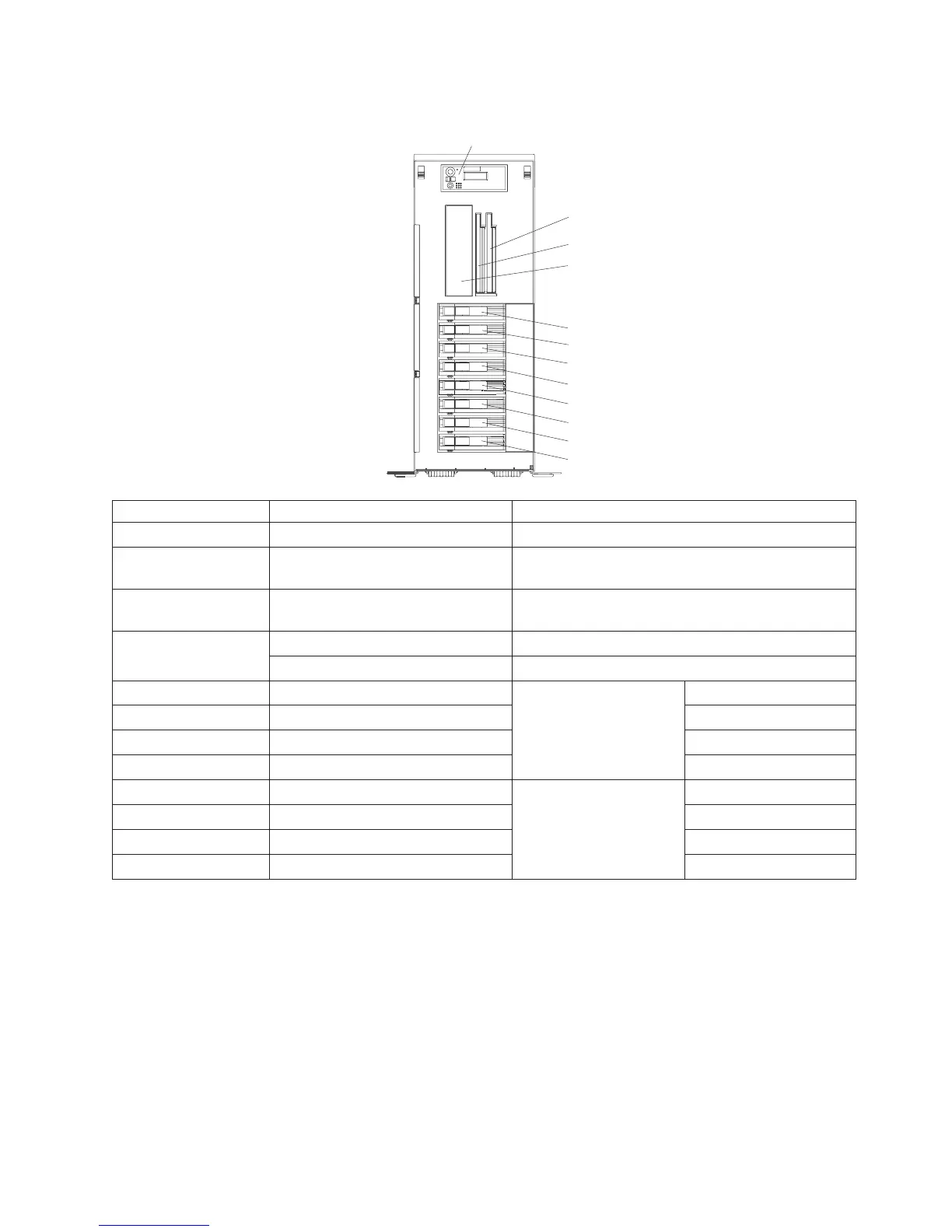

The following illustration shows the system LED locations for the pSeries 615 Model 6C3 and Model 6E3.
Pointers in the illustration to grey dots represent amber LEDs. Pointers to black dots represent green
Chapter 1. Reference Information 21
