Attach the Mounting Hardware to the Rack Enclosure
Before performing this procedure, read through each step and study the illustrations.
Attention: Mounting the rails is a complex procedure. To install the rack rails correctly, you must read,
and then perform each procedure step in the order given. Failure to perform each step in the order given
may cause rail failure.
To install the rack-mounting hardware into the rack, do the following:
1. Locate the rack-mounting hardware kit, rack-mounting template, and the system rails that were
shipped with your system.

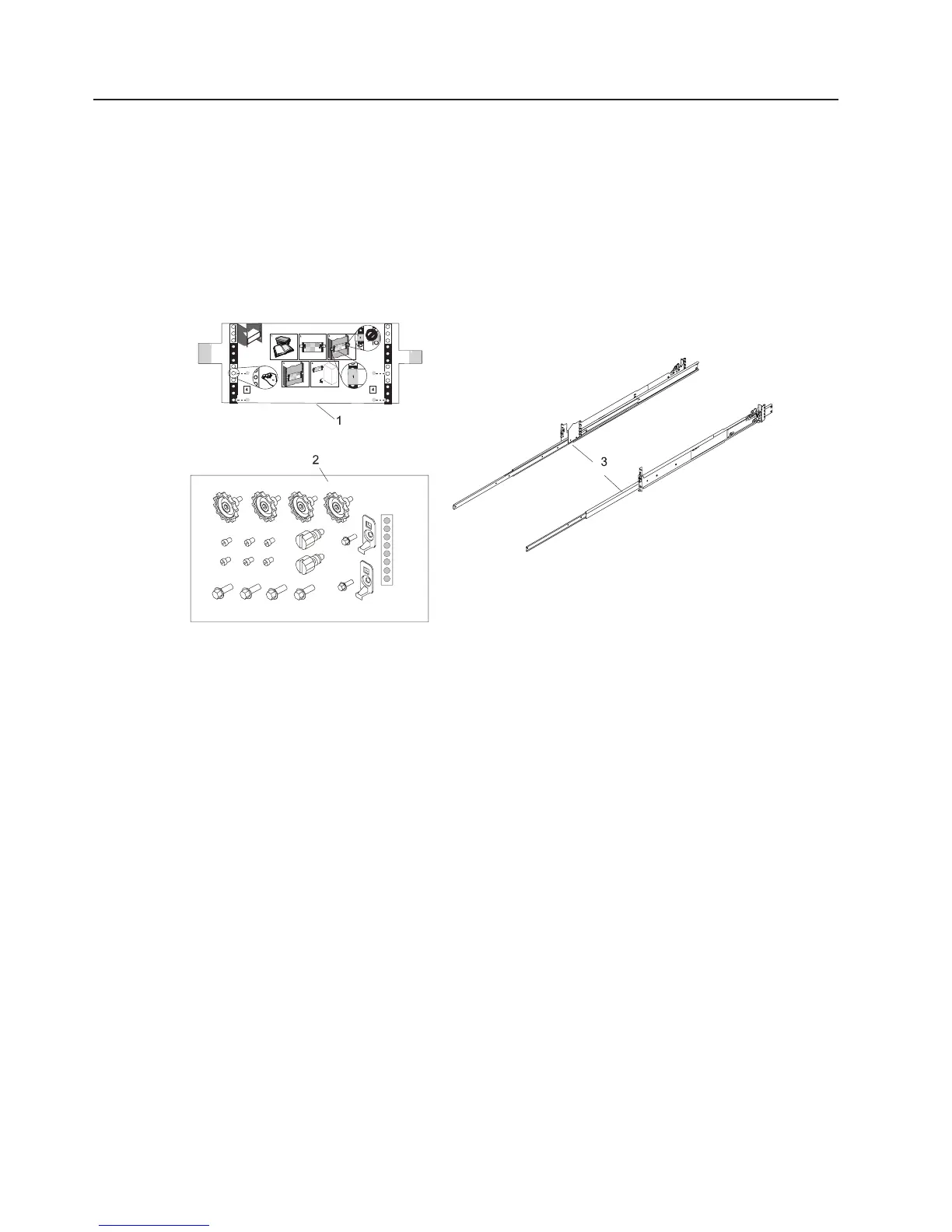

1 Rack-Mounting Template
2 Rack-Mounting Hardware Kit
3 System Rail Assemblies
Notes:
1. The system rails are front-to-back and left-to-right side dependent when you are standing in the
front of and facing the rack. The rails can be identified by the two large latch assemblies on the
rear of each rail. See the following illustration to orient yourself to the left and right rail
assemblies.
408 EserverpSeries 615 Service Guide
