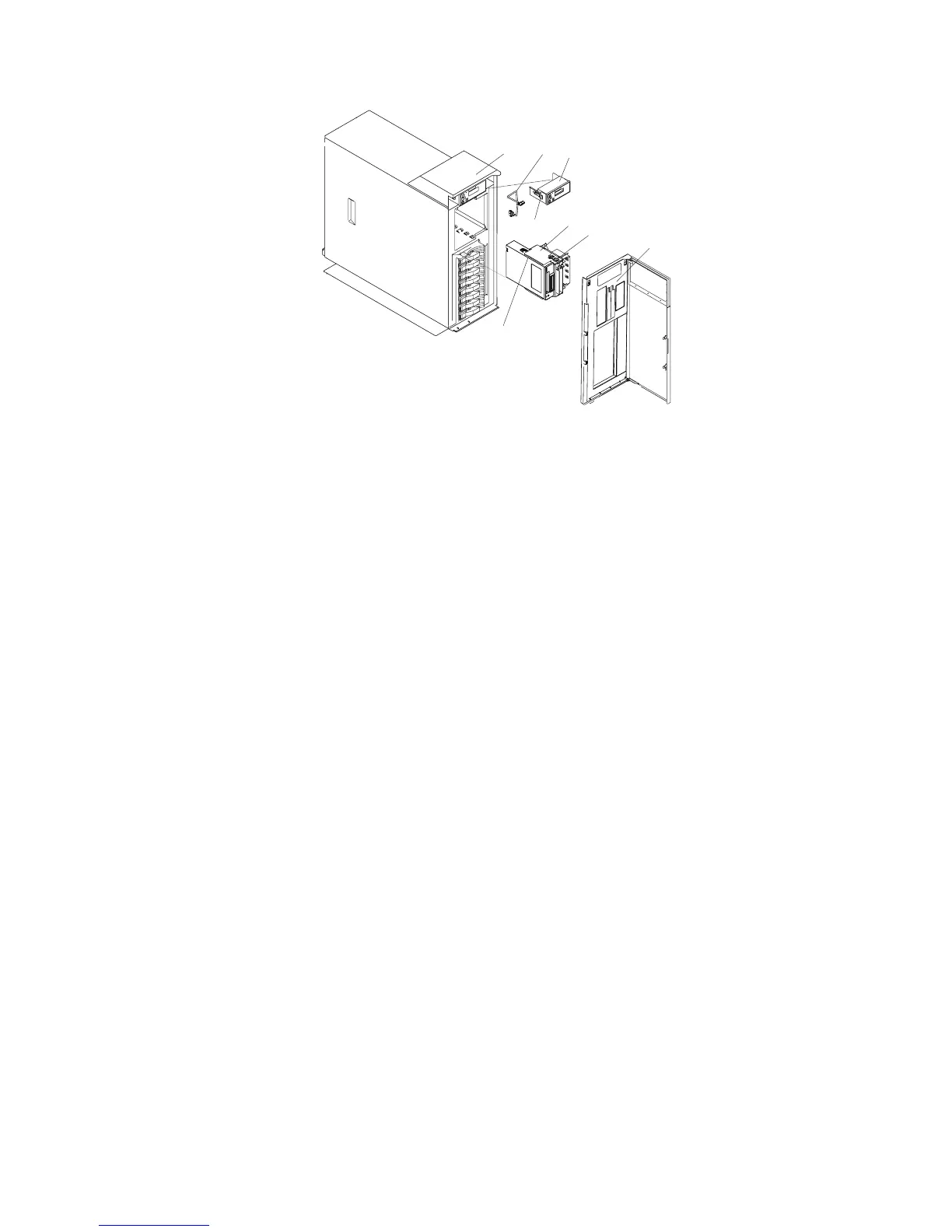

6
5
3
2
1
4
7
8
1
Model
6E3
4
Operator
Panel
Locking
Tabs
2
Operator
Panel
5
Operator
Panel
Power
Cable
3
Front
Bezel
Replacing
the
Operator
Panel
Attention:
Licensed
programs
frequently
rely
on
system
information
that
is
stored
in
the
vital
product
data
(VPD)
module
on
the
operator
panel.
If
you
replace
the
operator
panel,
the
system
VPD
information
(for
example
the
machine
type
and
serial
number)
is
restored
to
the
new
VPD
module
in
the
new
operator
panel.
Do
not
attempt
to
move
the
old
VPD
module
to
the
new
operator
panel.
To
replace
the
operator
panel,
do
the
following:
1.
Remove
the
new
operator
panel
from
its
packaging.
If
there
are
operator
panel
overlays
included
with
the
new
operator
panel,
install
the
appropriate
overlay
on
the
operator
panel.
Note:
If
you
are
replacing
an
operator
panel
in
a
Model
6C3
use
the
overlay
that
allows
access
to
the
front
serial
port
1
connector.
If
you
are
replacing
the
operator
panel
in
a
Model
6E3
use
the
overlay
that
covers
the
front
serial
port
1
connector.
2.
Connect
the
operator
panel
power
cable
to
the
connector
on
the
rear
of
the
operator
panel.
3.
Carefully
slide
the
operator
panel
into
the
operator
panel
bay
until
you
feel
the
locking
tabs
lock
in
place.
4.
Replace
the
front
bezel
as
described
in
“Bezels”
on
page
291.
5.
Reconnect
all
system
power
cables.
6.
Return
the
system
to
the
operating
position
as
described
in
“Returning
the
Model
6C3
to
the
Operating
Position”
on
page
285
or
“Placing
the
Model
6E3
into
the
Service
and
Operating
Position”
on
page
286.
7.
Start
the
system
as
described
in
“Starting
the
System”
on
page
283.
Removing
the
Operator
Panel
Power
Cable
To
remove
the
operator
panel
power
cable,
do
the
following:
1.
Remove
the
operator
panel
as
described
in
“Removing
the
Operator
Panel”
on
page
342.
2.
Disconnect
the
the
operator
panel
power
cable
from
the
media
bay.
See
the
illustrations
on
page
342
and
page
343.
If
you
are
servicing
the
Model
6E3,
note
how
the
operator
panel
power
cable
is
routed
through
the
system
chassis.
Chapter
9.
Removal
and
Replacement
Procedures
343
