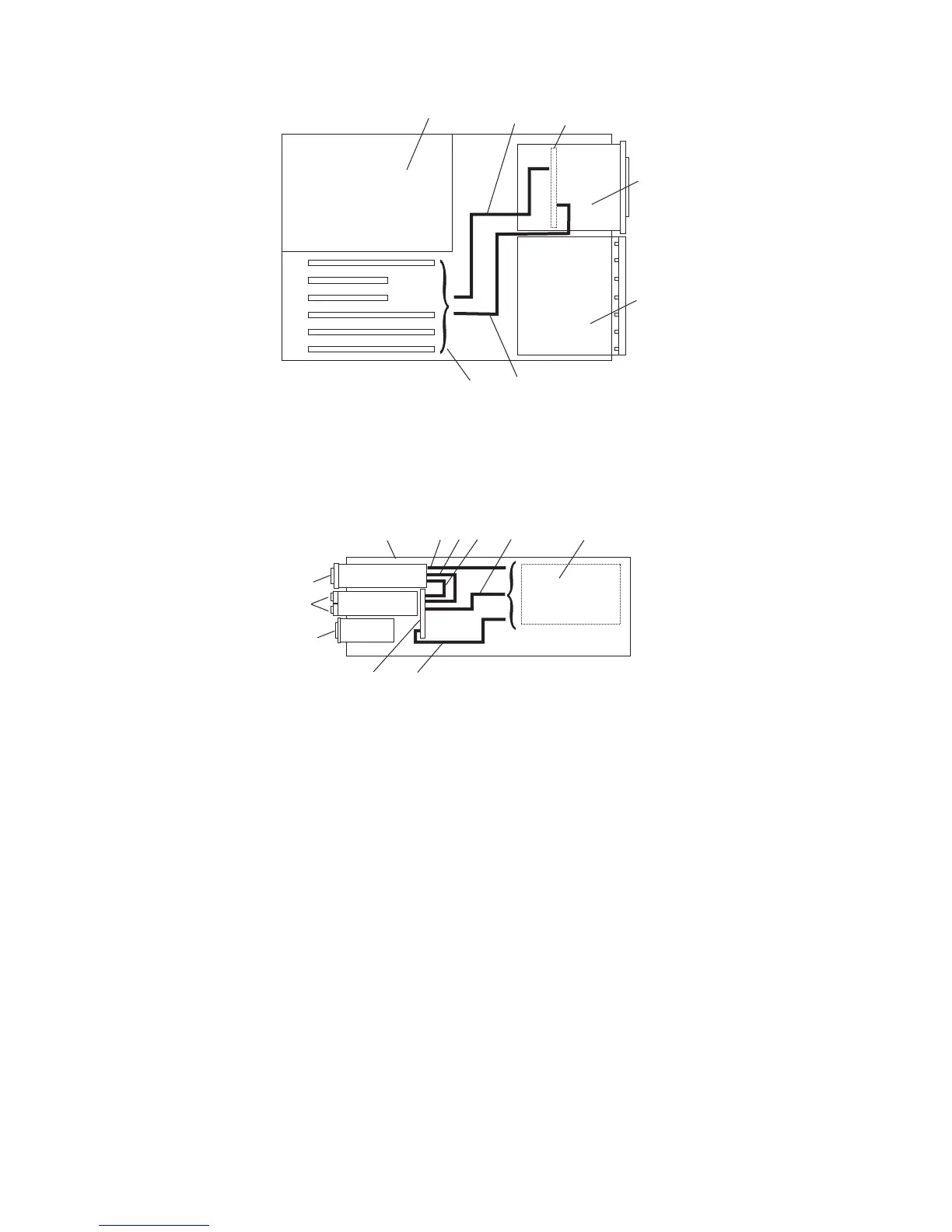

1 System Unit - Top View in
Service Position
5 Disk Drive Bay
2 SCSI Single-Ended Cable 6 Audio Card Cable
3 Media-Bay-Chassis Backplane 7 PCI Adapter Slots
4 SCSI Media Device
1
2
3
4
5
6
7
11
10
9
8
1 System Unit (Side View in
Service Position)
7 Audio-Card Cable
2 DVD-RAM Cable (SCSI
Media-Device )
8 Media Bay-Chassis Backplane
3 SCSI Media-Device Power
Cable
9 Operator Panel or Filler
4 SCSI Media-Device SCSI Cable 10 Slimline Media Devices
5 DVD-RAM Cable (Slimline
Media-Device )
11 SCSI Media Device
6 PCI Adapter Slots
Replacing SCSI Media-Device Cables
To replace a SCSI media-device cable, do the following:
1. Identify the cable you want to replace.
2. Plug the cable into the appropriate connectors on the SCSI media device and on the media bay
chassis or audio card. If you are replacing the audio-card cable, ensure that the cable is routed
through the system properly.
3. Replace the SCSI media device as described in “Replacing the Media Bay Chassis” on page 346.
330 EserverpSeries 615 Service Guide
