8.

Locate

the

voltage

regulator

module

you

wish

to

remove.

9.

Remove

the

voltage

regulator

module

by

pushing

the

connector

tabs

out

and

then

down.

The

tabs

act

as

cams,

forcing

the

voltage

regulator

module

out

of

the

connector.

10.

Pull

the

voltage

regulator

module

out

of

the

connector

as

shown

in

the

following

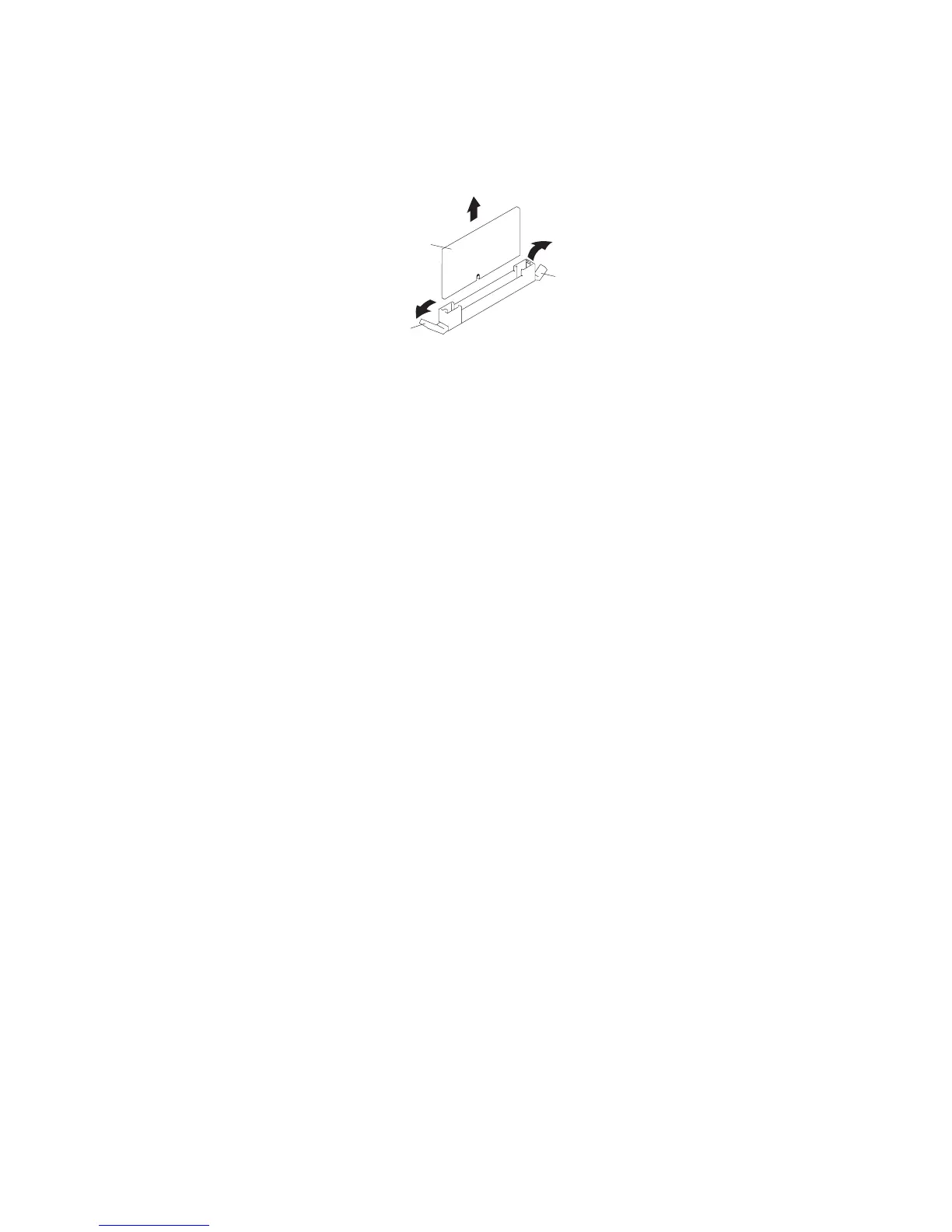

illustration.

1

2

1

1

Connector

Tabs

(unlocked

position)

2

Voltage

Regulator

Module

358

EserverpSeries

615

Service

Guide
