Models S80 and S85 Cabling

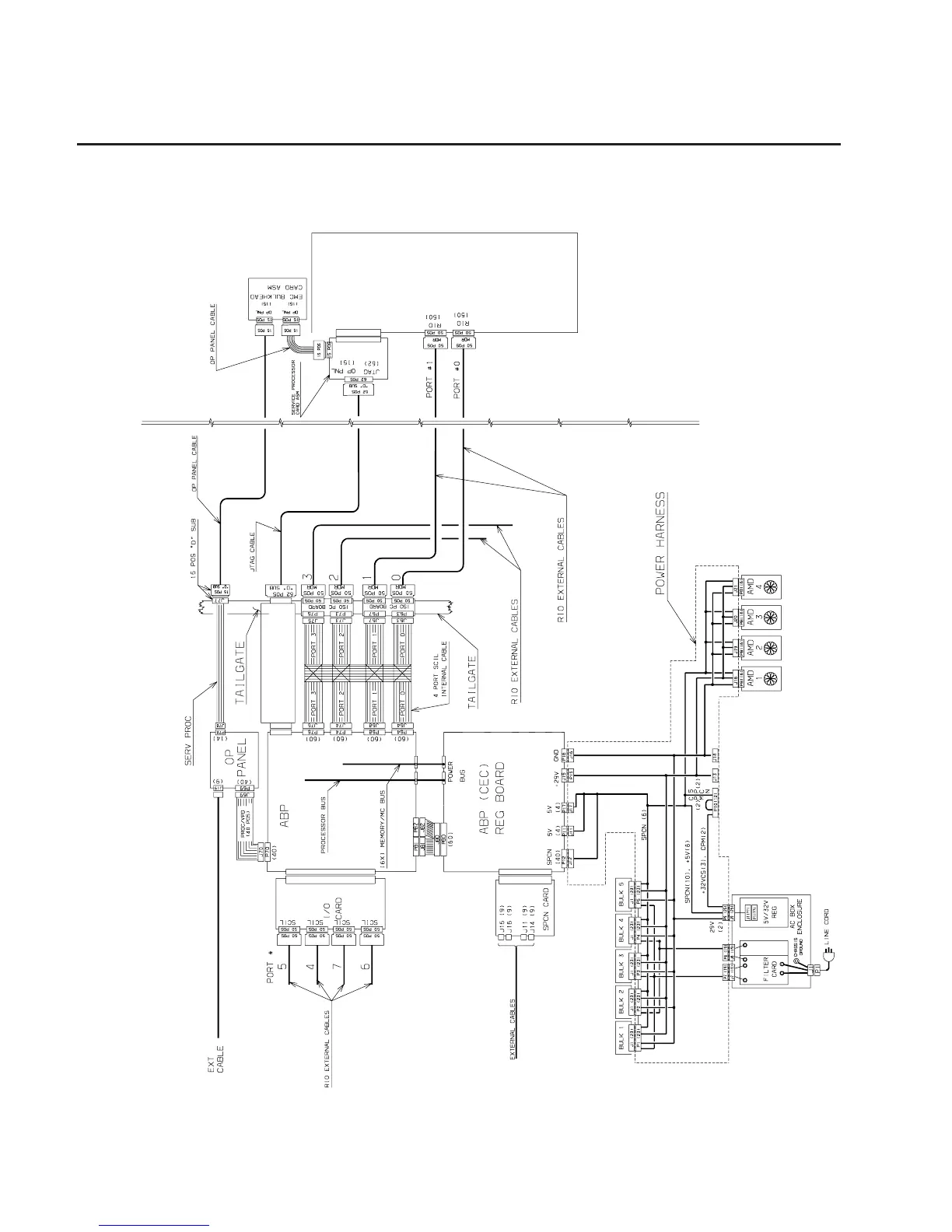

The following illustration shows the internal cabling for the models S80 and S85.

System Rack

System

Rack

I/O Drawer

I/O

Drawer

I/O Planar

Clock/Processor

Regulator Card

40 Service Guide
