SSA Cabling Connections

This section shows how to connect the cables from the HA - S80 or S85 Advanced

Cluster Server and the 7133 Serial Disk Systems.

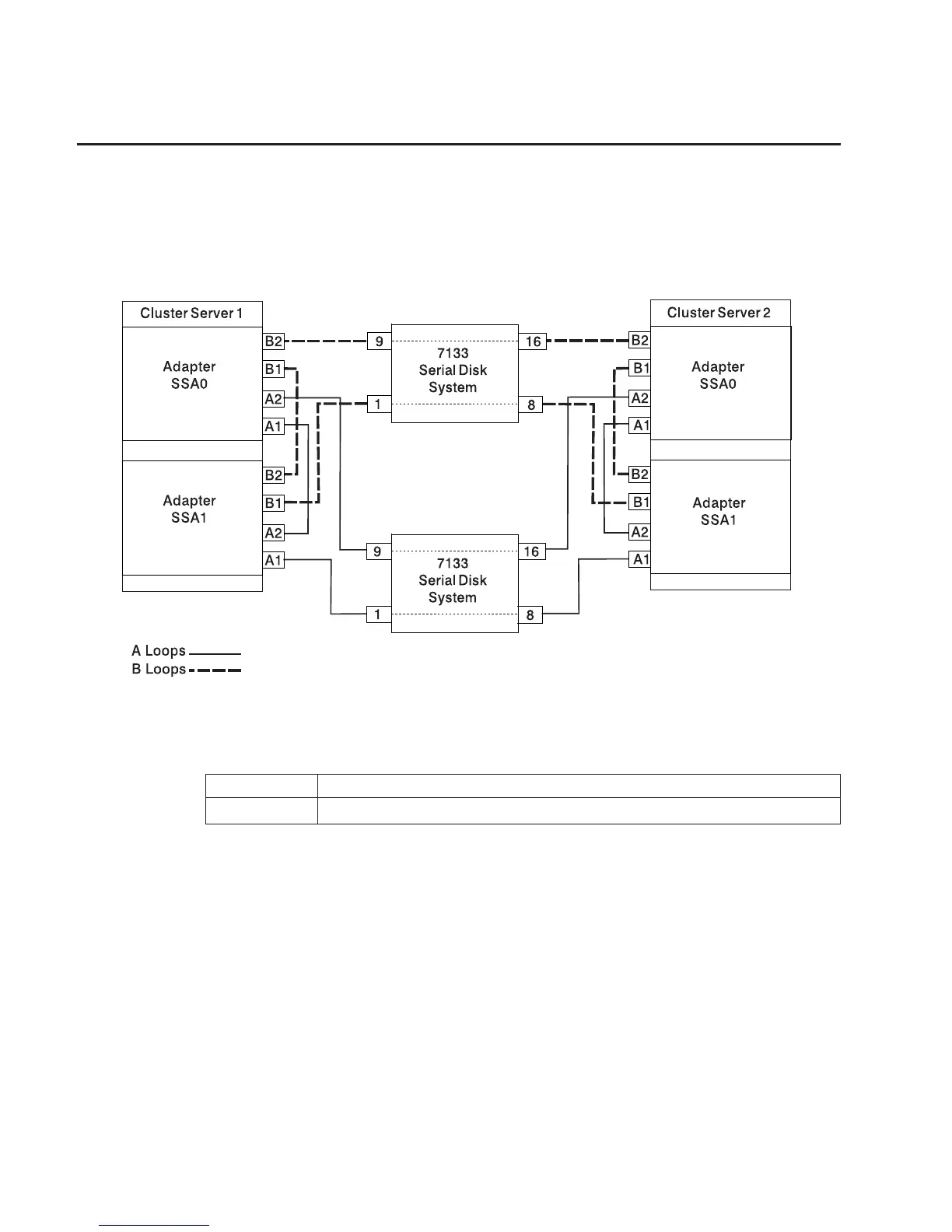

SSA From Cluster Servers to Double Looped 7133

Note: The preceding illustration shows cabling for a fully populated 7133 (16 disk

drives installed). Configuration with fewer disk drives, may use different port

numbers.

Index Description

All cables 7133 SSA Cable (FC 5050, PN 88G6404)

656 Service Guide
