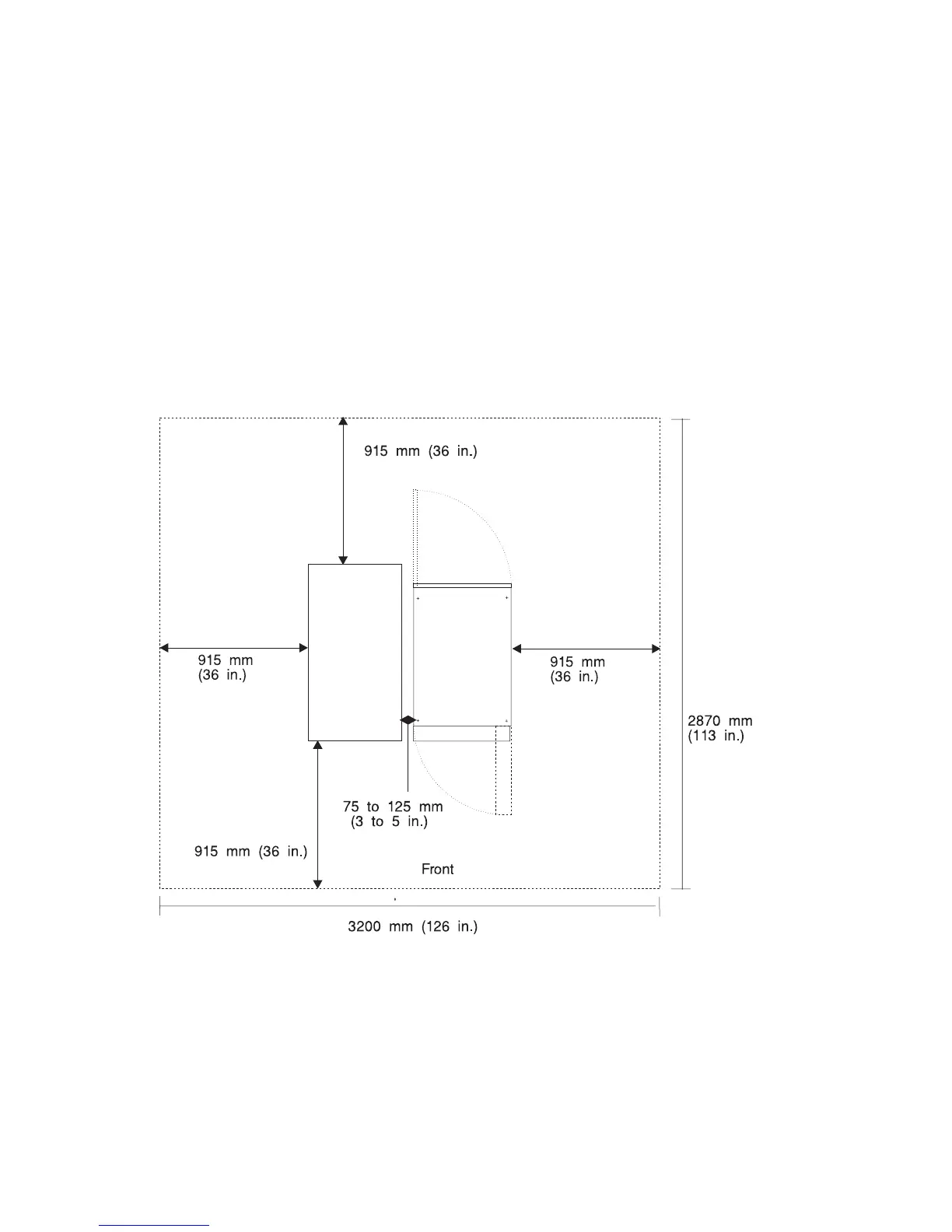

System Service Clearances
The amount of space needed by the units during service is indicated by the dotted line
in the following illustration.
For multiple racks placed side by side, the left and right clearances apply only to the
leftmost and rightmost rack.
Note: If you are planning to install an models S80 and S85 in an RS/6000 SP system
environment, refer to RS/6000 SP Planning Volume 1, Hardware and Physical
Environment, order number GA22-7280, for system-planning information.
Rack Configuration:
Note: Rack units are large and heavy and are not easily moved. Because maintenance
activities require access at both the front and back, allow for extra room. The
footprint in the preceding illustration shows the radius of the swinging doors on
the I/O rack. The minimum space required is indicated on the illustration.
70 Service Guide
