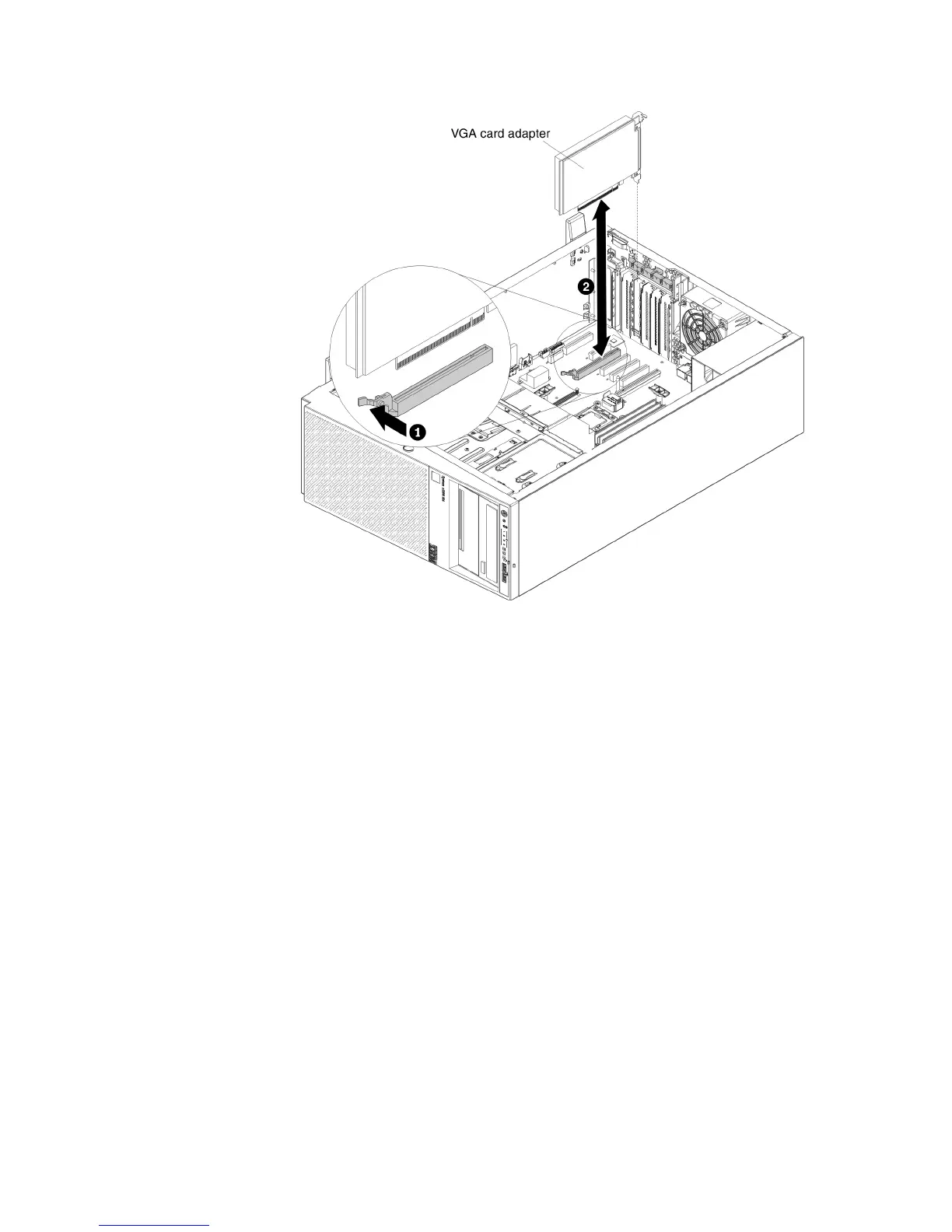

11. Close the adapter-retention bracket.
12. Perform any configuration tasks that are required for the adapter.
To install an adapter on the PCI-X riser-card assembly, complete the following
steps:
1. Read the safety information that begins in Safety and “Installation guidelines”
on page 36.
2. Turn off the server (see “Turning off the server” on page 24) and all attached
peripheral devices. Disconnect all power cords; then, disconnect all external
cables from the server.
3. Carefully turn the server on its side so that it is lying flat, with the cover
facing up.
Attention: Do not allow the server to fall over.
4. Unlock and remove the left-side cover (see “Removing the left-side cover” on
page 39)
5. See the documentation that comes with the adapter for any cabling
instructions and information about jumper or switch settings. (It might be
easier for you to route cables before you install the adapter.)
6. Touch the static-protective package that contains the adapter to any unpainted
metal surface on the server; then, remove the adapter from the package.
7. Locate PCI slot 1 which you will install the adapter into.
8. Rotate the adapter-retention brackets on the PCI-X bracket to the open
position.
Note: Remove the expansion-slot cover if it is installed on the PCI-X bracket
and save it for future use.
84 System x3300 M4 Type 7382: Installation and Service Guide
