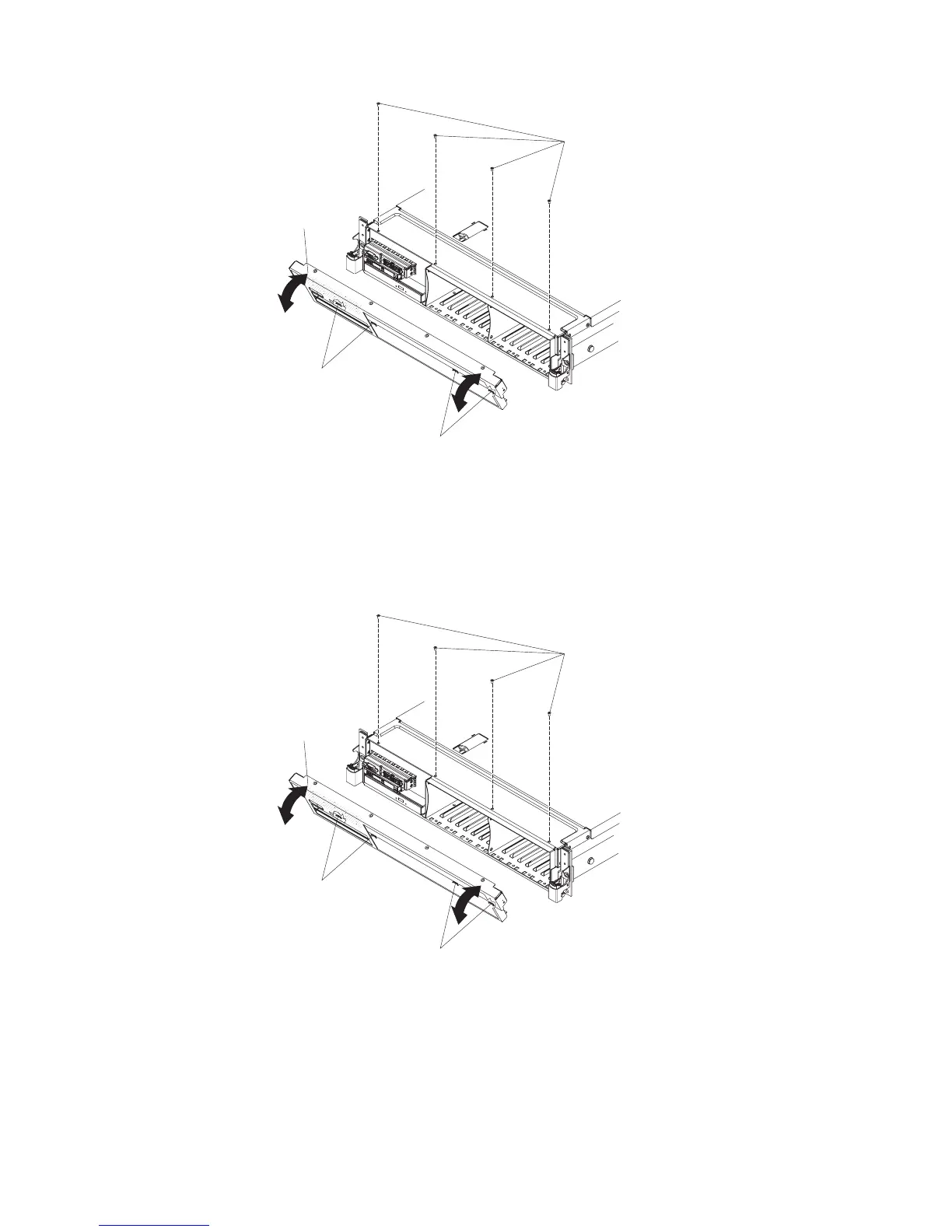

Tabs
Tabs
Bezel
Bezel
screws
5. Pull the top of the bezel out slightly; then, rotate it downward until the tabs on
the bottom of the bezel disengages from the chassis and set it aside.
Replacing the bezel
To install the bezel, complete the following steps:
1. Insert the tabs on the bottom of the bezel into the holes on the chassis.
2. Rotate the bezel upward to the server and reinstall the bezel screws.
Tabs
Tabs
Bezel
Bezel
screws
3. Install the cover (see “Replacing the server top cover” on page 207).
4. Reconnect the power cords and any cables that you removed.
5. Slide the server into the rack.
6. Turn on the peripheral devices and the server.
208 System x3750 M4 Types 8722 and 8733: Installation and Service Guide
