Supported SAS/SATA drive backplane configurations
The following illustrations show the hot-swap drive backplanes that the server
supports.

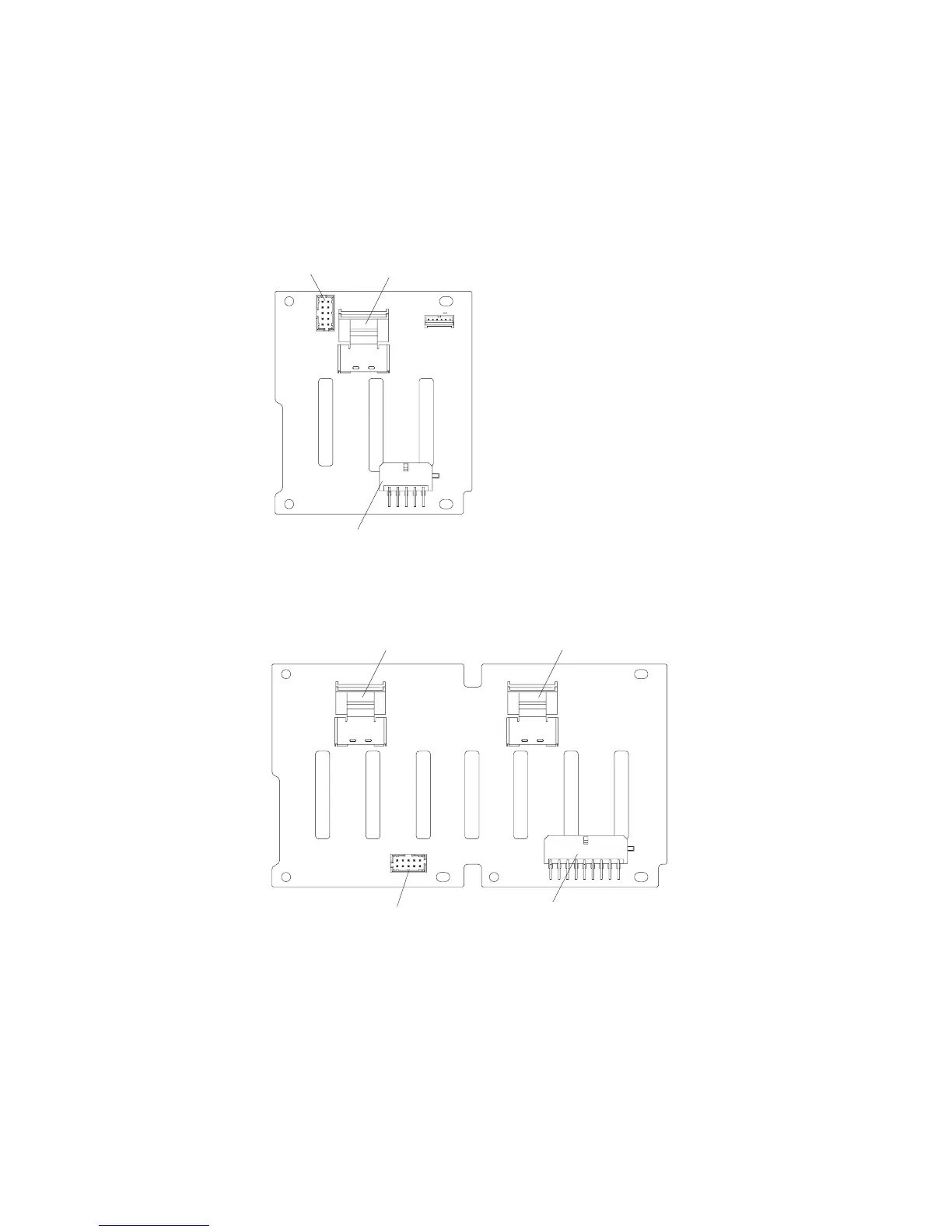

4x2.5-inch drive backplane rear view:
SAS signal
connector
SAS power
connector
Configuration
connector
8x2.5-inch drive backplane rear view:
Port 0
SAS signal
connector
Configuration
connector
SAS power
connector
Port 1
SAS signal
connector
8x2.5-inch drive backplane with controller expander rear view:
