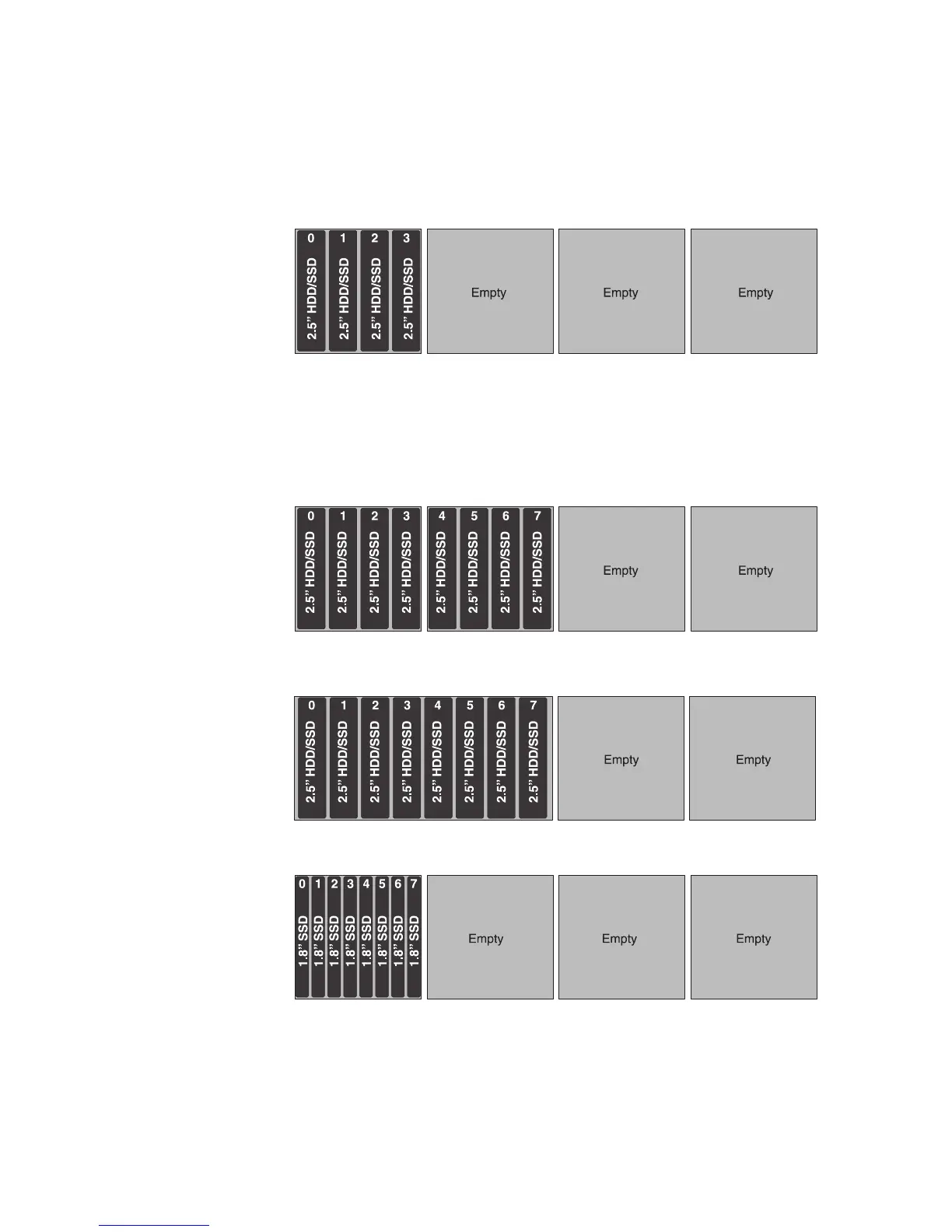

Backplane configuration for 4 drives
The following illustration shows the supported backplane configuration to support
four drives.
This configuration consists of one 4x2.5-inch drive backplane and requires one
SAS signal cable.
Backplane configurations for 8 drives
The following illustrations show the supported backplane configurations to
support eight drives.
This configuration consists of two 4x2.5-inch drive backplanes and requires two
SAS signal cables.
This configuration consists of one 8x2.5-inch drive backplane and requires two
SAS signal cables.
This configuration consists of one 8x1.8-inch drive backplane and requires two
SAS signal cables.
Chapter 2. Installing optional devices 55
