Replacing 2.5-inch and 1.8-inch hot-swap drives
The following notes describe the type of drives that the server supports and other
information that you must consider when you install a drive. For a list of
supported drives, see http://www.ibm.com/servers/eserver/serverproven/
compat/us/.
v Locate the documentation that comes with the drive and follow those
instructions in addition to the instructions in this chapter.
v Make sure that you have all the cables and other equipment that are specified in
the documentation that comes with the drive.
v The server can support up to 16 2.5-inch drives, up to 32 1.8-inch drives, or a
combination of both 2.5-inch and 1.8-inch hot-swap drives, using the supported
SAS\SATA backplane configurations. The server supports 2.5-inch hot-swap SAS
or hot-swap SATA hard disk drives, 2.5-inch hot-swap solid state drive, or
1.8-inch hot-swap solid state drives (see “Supported SAS/SATA drive backplane
configurations” on page 53 for more information).
v You can mix 2.5-inch hot-swap SAS and SATA hard disk drives, 2.5-inch
hot-swap solid state drive, and 1.8-inch hot-swap solid state drives in the same
server as long as they are not on the same array.
v When upgrading drive backplane configurations, all 1.8-inch SSD drive
backplanes must be installed to the right of all 2.5-inch HDD or 2.5-inch SSD
drive backplanes. All 2.5-inch backplanes installs to the left of all 1.8-inch
backplanes. See “Drive IDs” on page 51 for drive ID assignment information and
“Supported SAS/SATA drive backplane configurations” on page 53 for
information about the combination of supported drive backplane configurations.
v The electromagnetic interference (EMI) integrity and cooling of the server are
protected by having all bays and PCI and PCI Express slots covered or occupied.
When you install a drive, save the EMC shield and filler panel from the bay in
the event that you later remove the device.
v For a complete list of supported optional devices for the server, see
http://www.ibm.com/servers/eserver/serverproven/compat/us/.
To install a hot-swap drive, complete the following steps:
1. Read the safety information that begins on page “Safety” on page vii and
“Installation guidelines” on page 33.
2. Touch the static-protective package that contains the drive to any unpainted
metal surface on the server; then, remove the drive from the package and place
it on a static-protective surface.

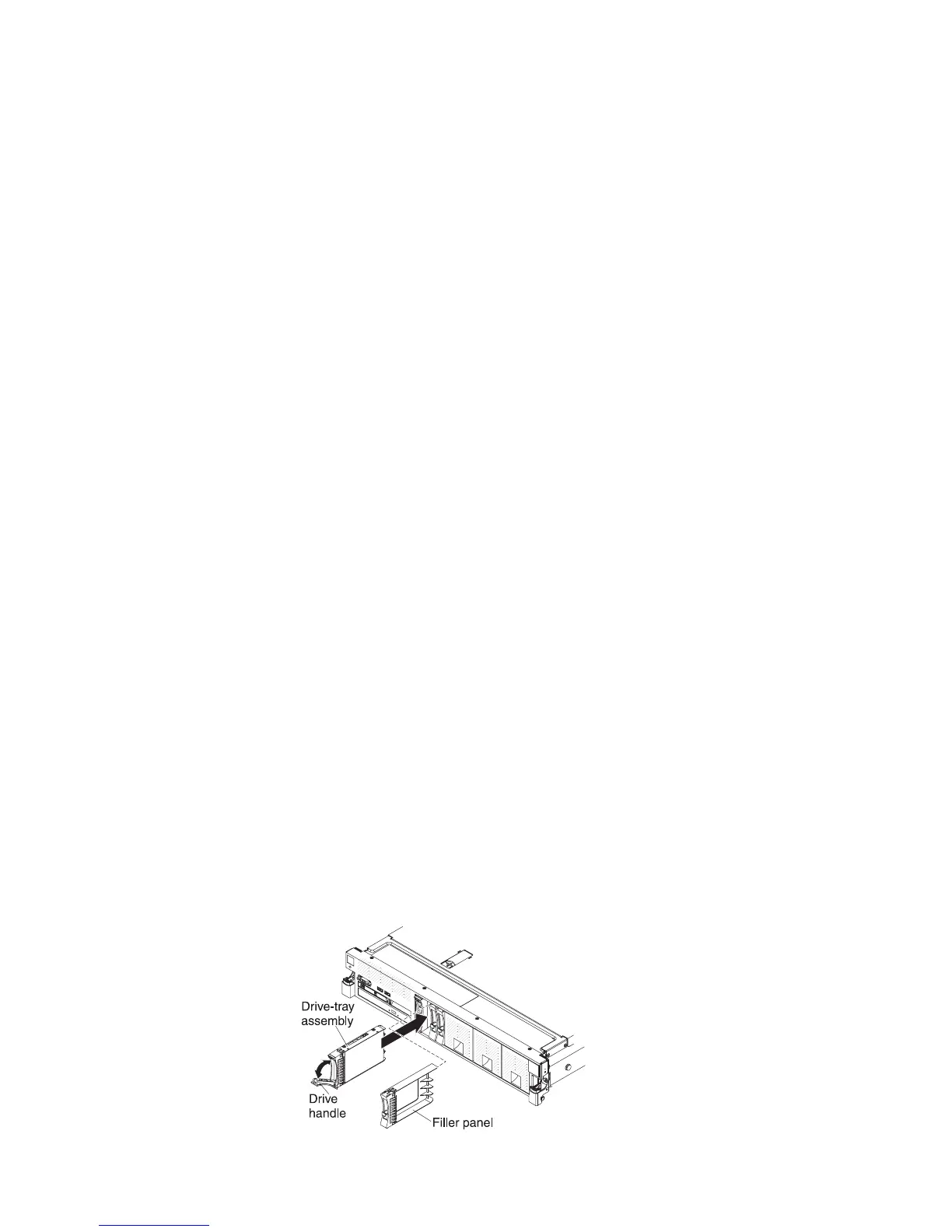

3. Install a 2.5-inch hot-swap drive:
a. Make sure that the drive-tray handle is in the open (unlocked) position.
b. Align the drive assembly with the guide rails in the bay.
216 System x3750 M4 Types 8722 and 8733: Installation and Service Guide
