4. Insert the SAS/SATA adapter into the connector on the riser-card until it is
firmly seated.
Attention: Incomplete insertion might cause damage to the server or the
adapter.
5. Reinstall the cable to the RAID cache card, if it was removed (see “Replacing
a RAID cache card” on page 252).
6. Reinstall the riser-card assembly onto the connector on the system board.
7. Reconnect the signal cables to the adapter.

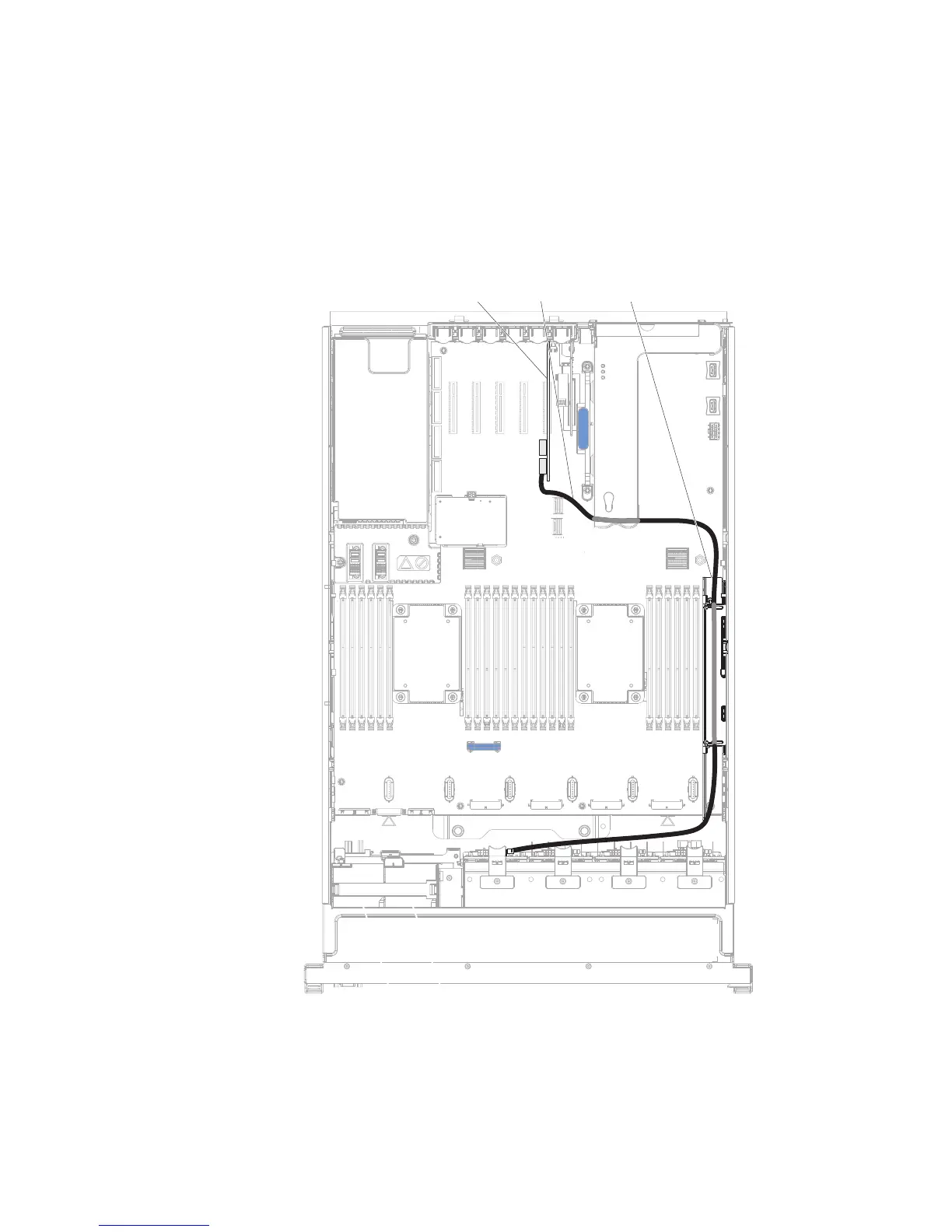

SAS cable guideAdapter
SAS signal
cable
8. Replace the cover (see “Replacing the server top cover” on page 207).
9. Reconnect the power cord and any cables that you removed.
10. Slide the server in the rack.
11. Turn on the peripheral devices and the server.
Chapter 6. Removing and replacing components 227
