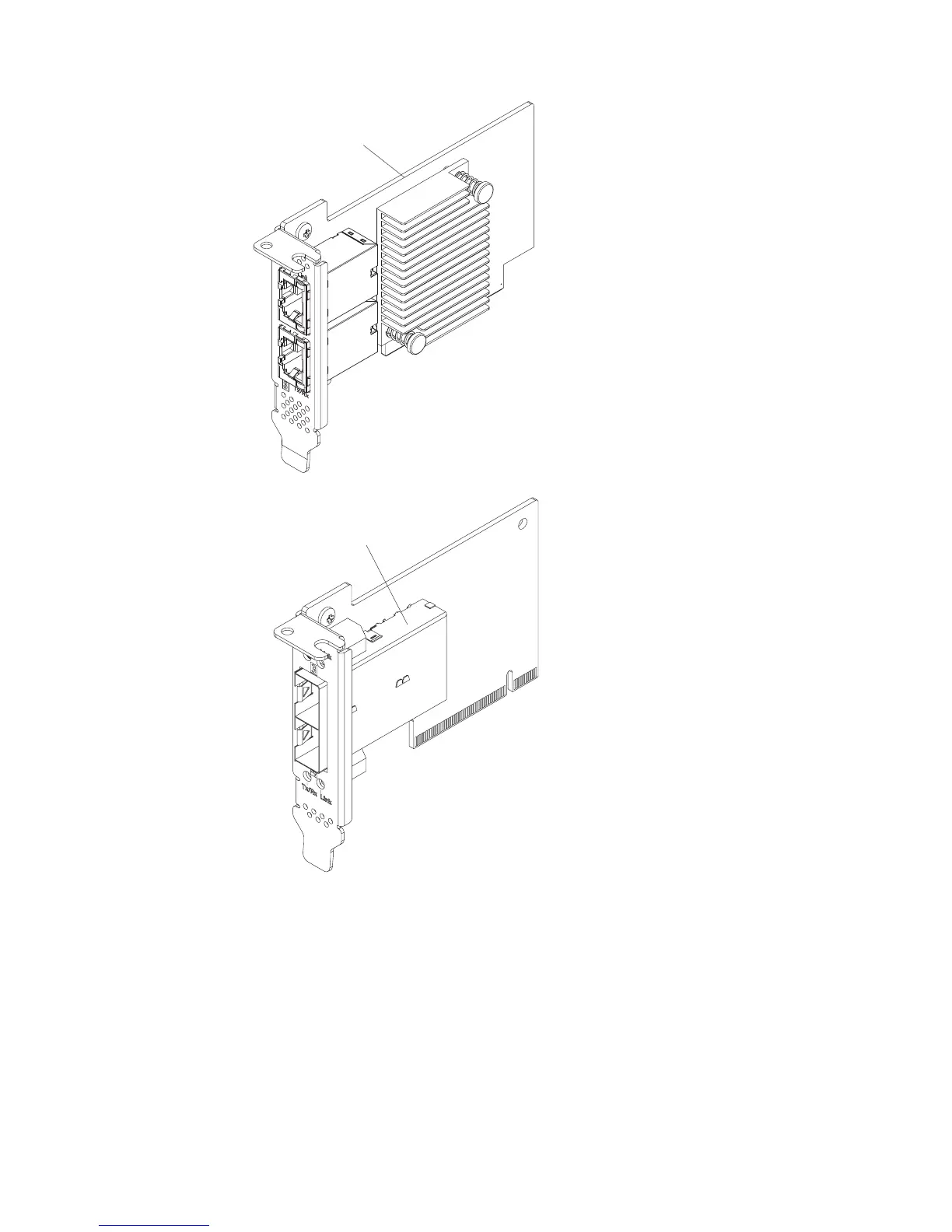

Dual-port 10Gb-T
(copper) Ethernet
adapter
Dual-port 10Gb SFP+
(fibre) Ethernet
adapter
To replace a IBM Dual-port 10 Gb-T (copper) Ethernet Adapter or the IBM
Dual-port 10 Gb SFP+ (fibre) Ethernet Adapter, complete the following steps:
Note: The illustration in this document might differ slightly from your hardware.
1. Read the safety information that begins on page “Safety” on page vii and
“Installation guidelines” on page 33.
2. Touch the static-protective package that contains the new adapter to any
unpainted metal surface on the server. Then, remove the adapter from the
package.
3. Align the edge connector on the adapter with the connector on the system
board. Press the edge of the connector firmly into the system board connector
and make sure that the adapter snaps into the connector securely.
248 System x3750 M4 Types 8722 and 8733: Installation and Service Guide
