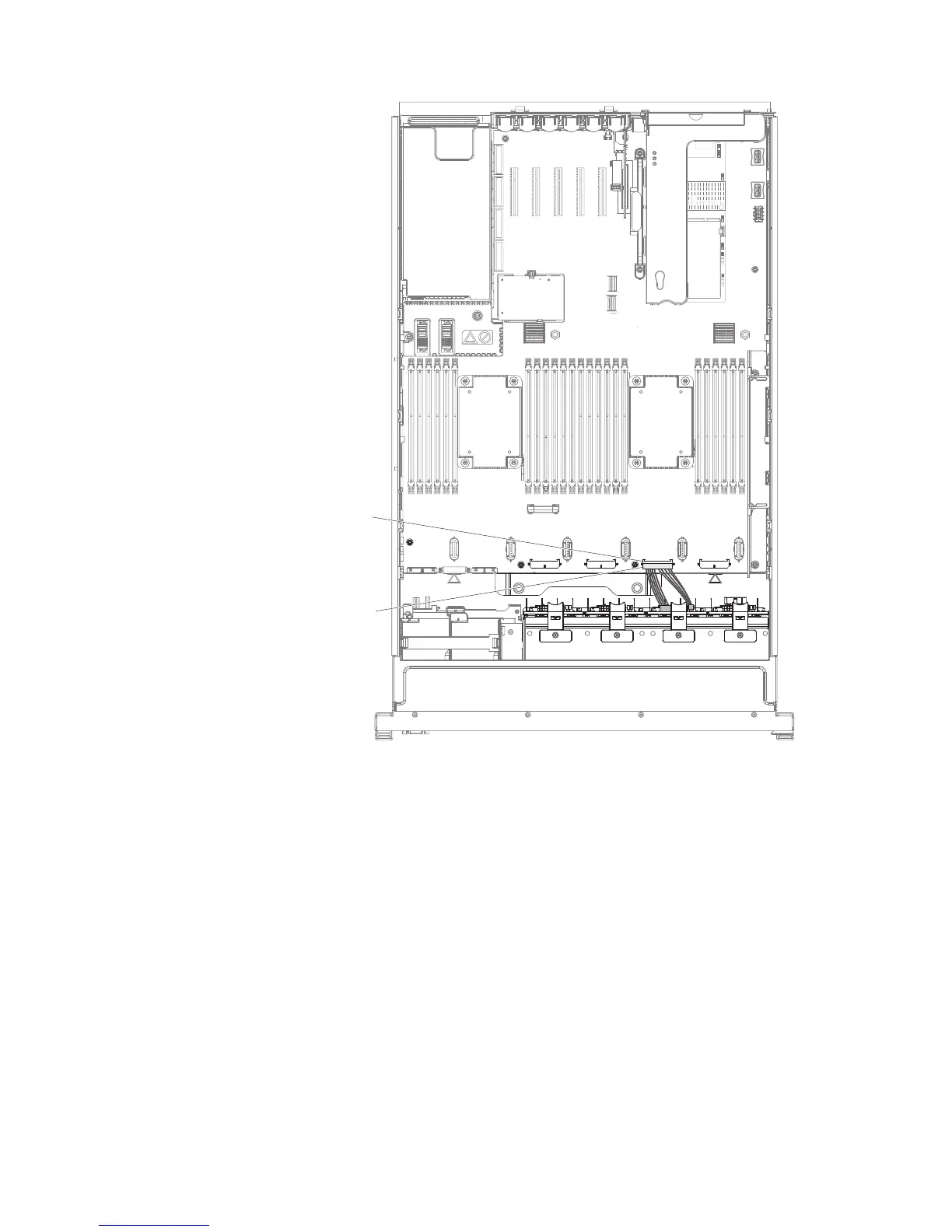

Backplane
power
connector
Backplane
power/
configuration
cable
5. Reinstall the drives that you removed from the old assembly into the new
drive backplane assembly (see “Replacing 2.5-inch and 1.8-inch hot-swap
drives” on page 216).
6. Install the drive filler panel.
7. Reinstall the fan cage assembly (see “Replacing the fan cage assembly” on
page 246).
8. Install the cover (see “Replacing the server top cover” on page 207).
9. Slide the server into the rack.
10. Reconnect the power cords and any cables that you removed.
11. Turn on the peripheral devices and the server.
Chapter 6. Removing and replacing components 269
