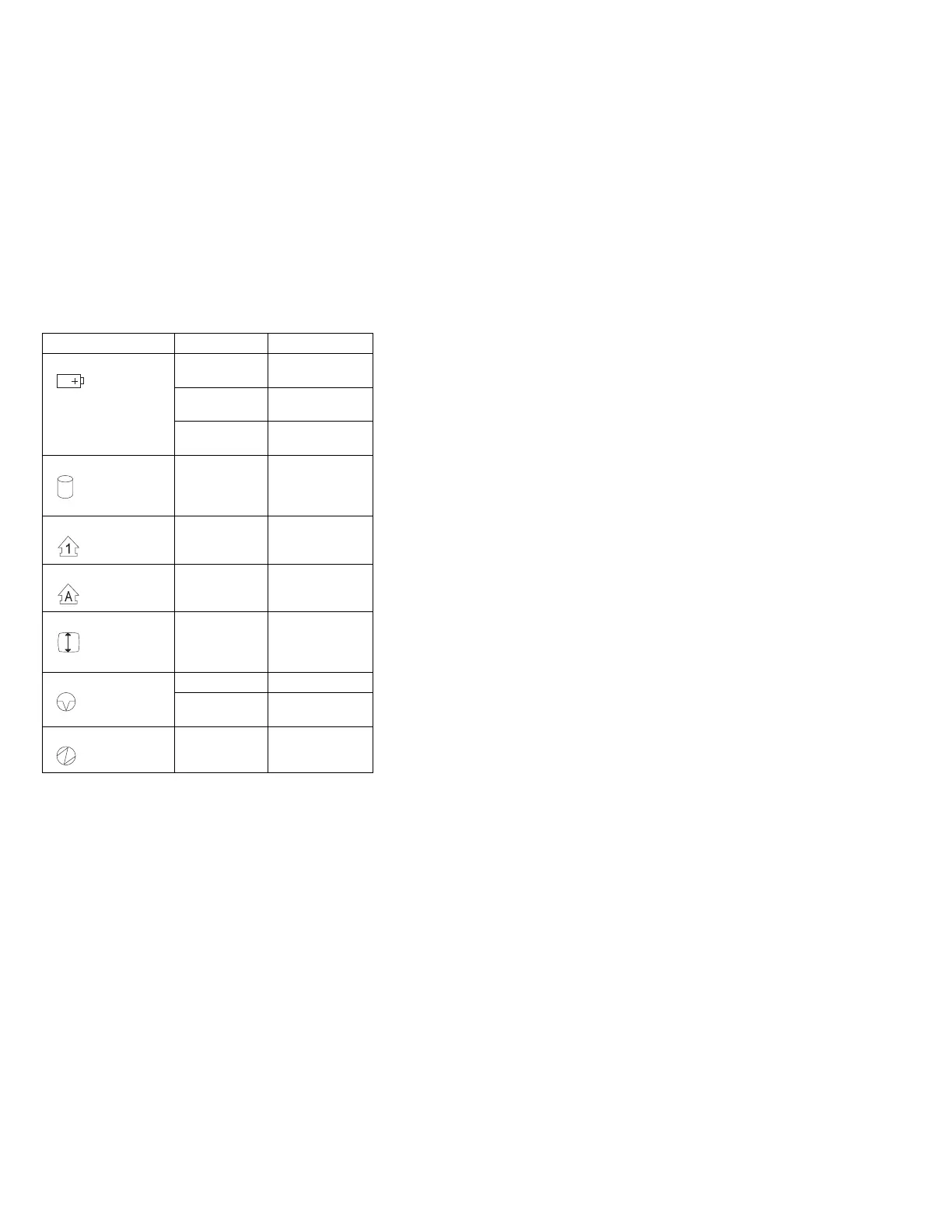

Symbol Color Meaning
.1/Battery Green Battery fully
charged
Orange Battery
charging
Blinking
orange
Battery needs
charging
.2/Hard Disk In Use Orange Data is read
from or written
to the hard disk
drive.
.3/Numeric Lock Green Numeric keypad
on the keyboard
is enabled.
.4/Caps Lock Green Caps lock mode
is enabled.
.5/Scroll Lock Green Arrow keys can
be used as
screen-scroll
function key.
.6/Suspend Mode Green Suspend mode
Blinking
Green
Entering
suspend mode
.7/Power On Green Power on
Running the Diagnostics
Use either the TrackPoint III or the cursor move keys to
interact with the tests. The Enter key works the same as
selecting the OK icon to reply OK.
Note: The following tools are required:
FDD:
Erasable 2HD diskette
Parallel:
Wrap plug (P/N 72X8546)
Serial:
Wrap plug (P/N 72X8546)
PCMCIA:
PC Test Card (P/N 35G4703)
1. Press and hold the F1 key; then power on the
computer. Hold the F1 key down until the
Easy-Setup screen appears.
2. Select Test and press Enter.
3. Select a device and press Enter to run the test.
4. The test progress screen appears.
5. OK appears when the test ends without any errors.
6. Start the Advanced Diagnostic test by pressing
Ctrl+A on the basic diagnostic menu screen.
7. Select Tool to install the tools.
8. Select a device, press the Spacebar, and install the
tool. You can install the multiple devices by repeating
this step.
A √ mark appears beside the selected devices.
ThinkPad 560, 560E (2640)
151
