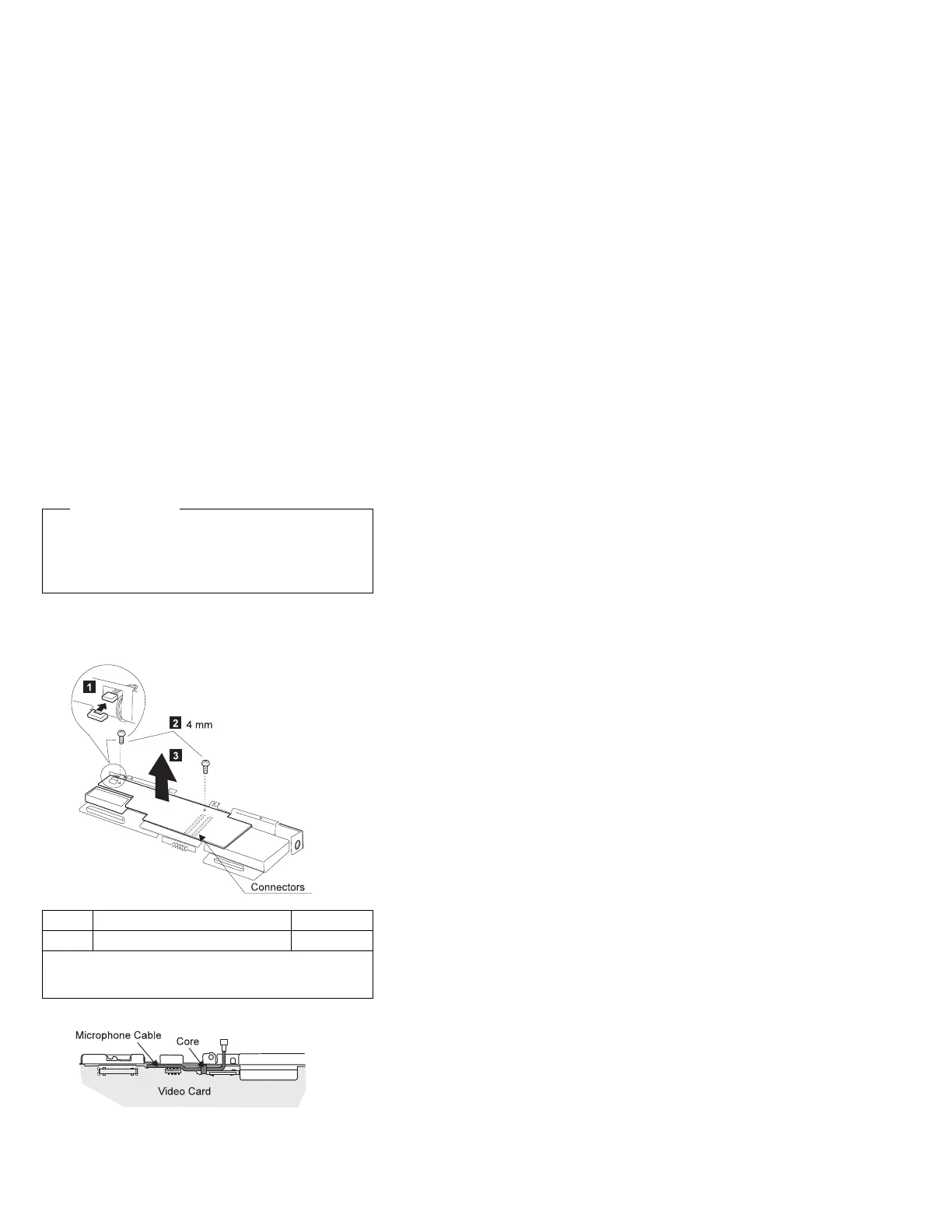

1110 Video Card/Fan (Model Unique)
 Diskette Drive/CD-ROM Drive (1020)
 Battery Pack (1030)
 Hard Disk Drive (1040)
 Top Cover (1060)
 Keyboard Unit (1070)
 LCD Unit (1080)
 Front IR and Rear IR (1090)
 System Board Assembly (1100)
 Upper Shield (1125)
Verify the Model
There are two models of 760ED: one with a standard
video card, the other with an enhanced video card. If
you install the incorrect video card, the LCD will not
work. Verify the 760ED model you are servicing.
Standard Video Card
 Models
760C/760L/760E/760ED/760EL/760LD/760ELD
The following shows the microphone routing.
Step Size (Quantity) Torque
.2/ 4mm, Nylon (2) 4 kgcm
Note: Make sure you use the correct screw and tighten the
screw to the torque specified. Do not use the screw that you
removed, use a new screw.
ThinkPad 760 (9546, 9547) 267
To Next Page
