1160 Modem Holder, DC/DC Card,
Inverter Card
 Diskette Drive or CD-ROM Drive (1020)
 Battery Pack (1030)
 Hard Disk Drive (1040)
 Top Cover (1060)
 Keyboard Unit (1070)
 LCD Unit (1080)
 Front IR and Rear IR (1090)
 System Board Assembly (1110)
 Upper Shield (1120)
 External FDD Connector (1130)
 Video Card (1140)

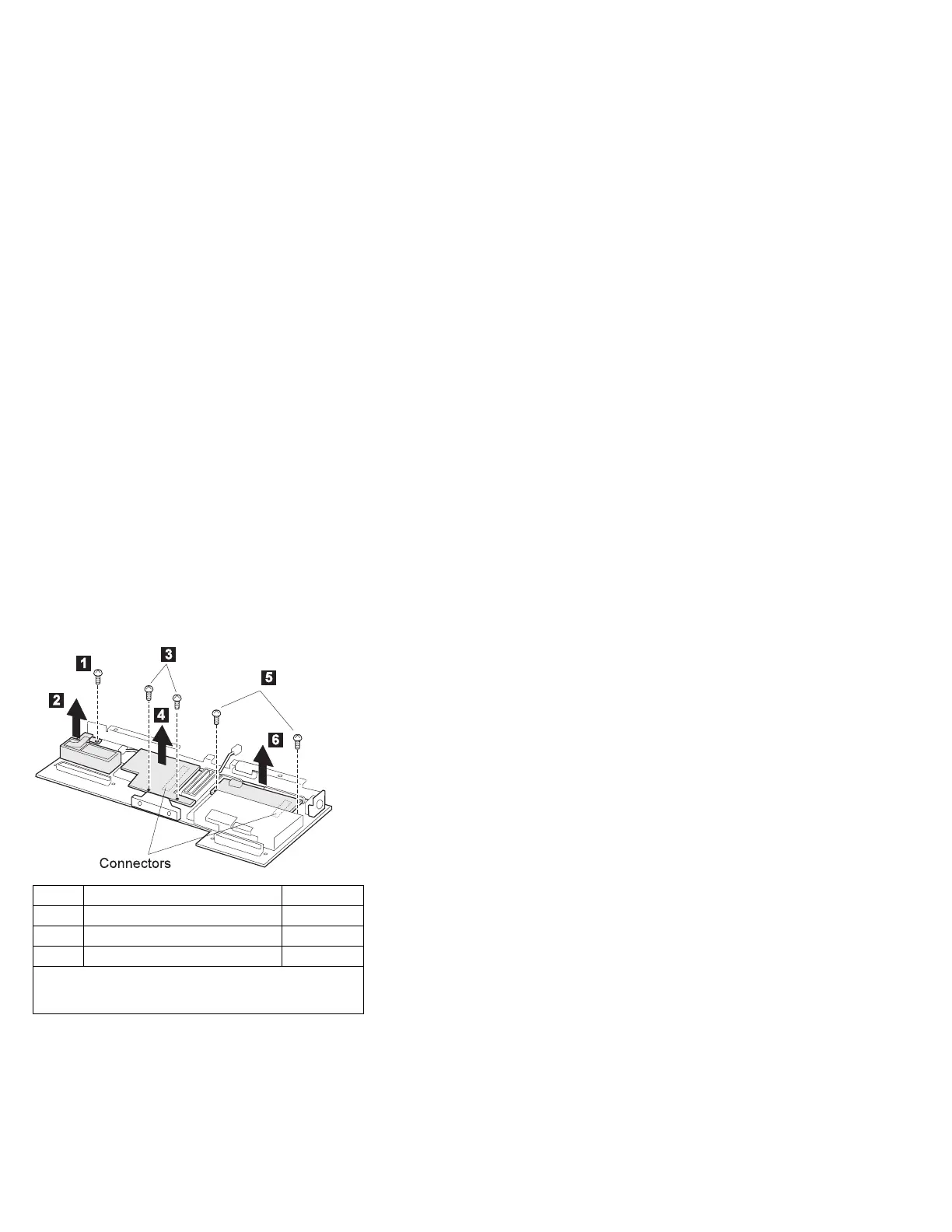

.1/.2/: Module Jack
.3/.4/: DC/DC Card
.5/.6/: Inverter Card
Step Size (quantity) Torque
.1/ M2.5 x 14 mm, Nylon (1) 4 kgcm
.3/ M2.5 x 4 mm, Nylon (2) 4 kgcm
.5/ M2.5 x 6 mm, Nylon (2) 3.5 kgcm
Note: Make sure you use the correct screw and tighten the
screw to the torque specified. Do not use the screw that you
removed, use a new screw.
478 IBM Mobile Systems HMM
