1180 Lower Shield Case
 Diskette Drive or CD-ROM Drive (1020)
 Battery Pack (1030)
 Hard Disk Drive (1040)
 Top Cover (1060)
 Keyboard Unit (1070)
 LCD Unit (1080)
 Front IR and Rear IR (1090)
 System Board Assembly (1110)
 Upper Shield (1120)
 External FDD Connector (1130)
 Video Card (1140)
 Module Jack (1160)

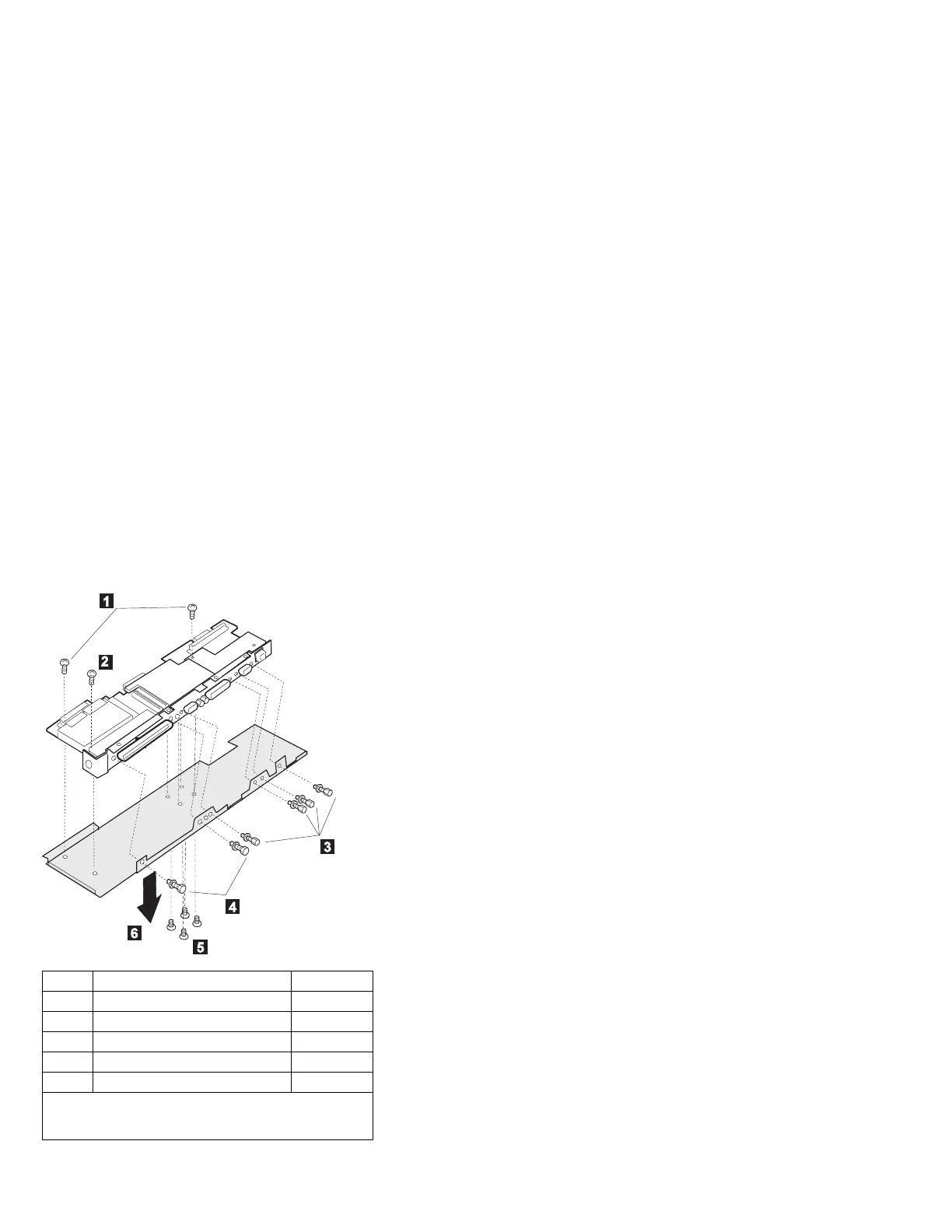

Step Size (quantity) Torque
.1/ M2.5 x 4 mm, Nylon (2) 4 kgcm
.2/ M2.5 x 6 mm, Nylon (1) 4 kgcm
.3/ 5 mm, X' (4) 5.5 kgcm
.4/ 5.5 mm, X' (2) 5.5 kgcm
.5/ M2.5 x 4 mm, flathead (4) 3 kgcm
Note: Make sure you use the correct screw and tighten the
screw to the torque specified. Do not use the screw that you
removed, use a new screw.
ThinkPad 765D (9546), 765L (9547) 481
