1100 Cables
 Port Replicator (1010)
 Option Card Cover and Option Card (1020)
 UltraBay II (1040)
 Device Space Bay Frame (1050)
 Upper Cover (1060)

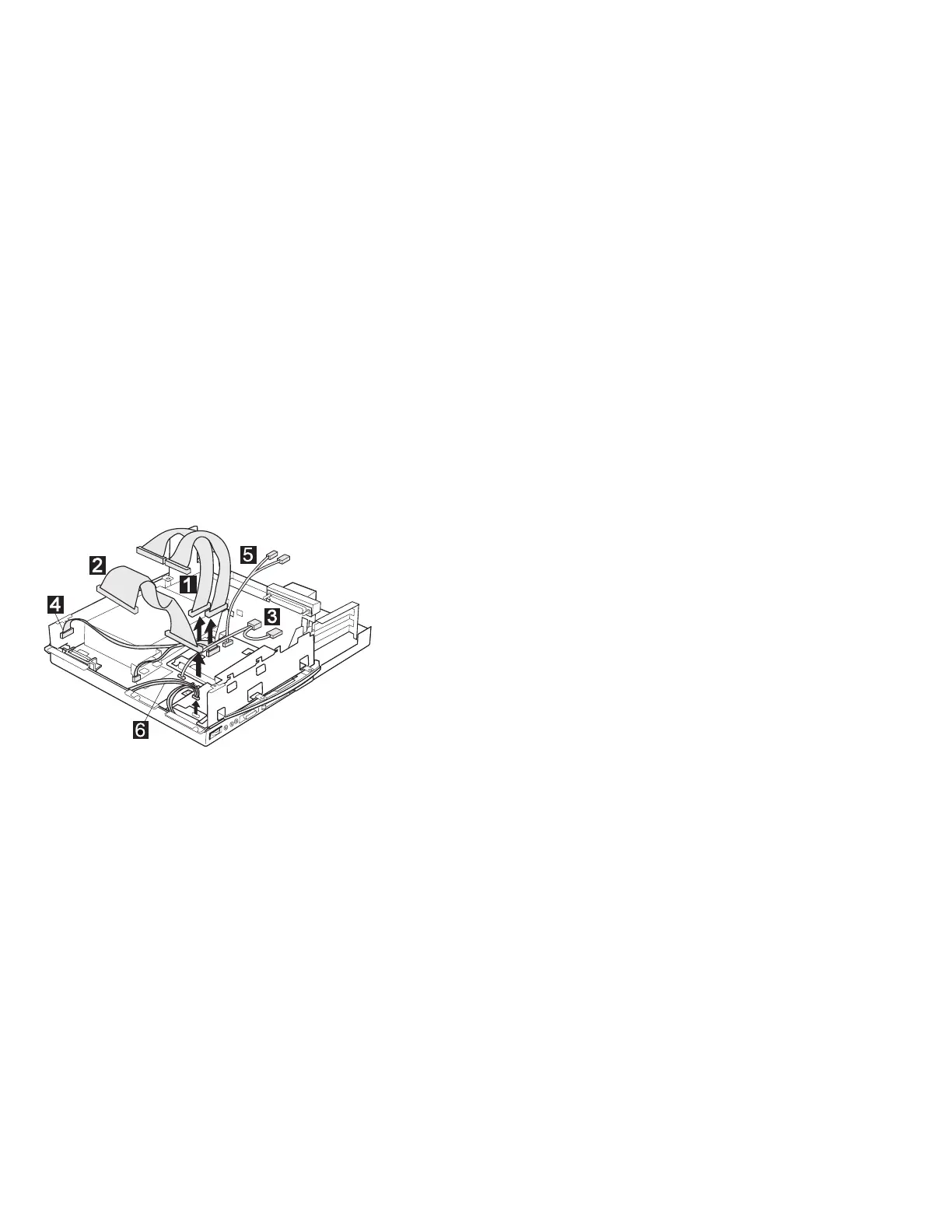

This step is a preparation for removing the main card
assembly. Remove the IDE cables .1/, the SCSI cable
.2/, the audio cable .3/, the USB cable .4/, the wake-on
signal cable .5/, and the speaker cable .6/.
SelectaDock III (3547-003) 667
