1210 Shield Cover (Right, Left)
 Diskette Drive or CD-ROM Drive (1020)
 Battery Pack (1030)
 Hard Disk Drive (1040)
 Top Cover (1060)
 Keyboard Unit (1070)
 LCD Unit (1080)
 Front IR and Rear IR (1090)
 System Board Assembly (1110)
 Upper Shield (1120)
 Video Card (1130)
 External Diskette Drive Connector (1150)
 Module Jack (1160)
 Lower Shield (1180)

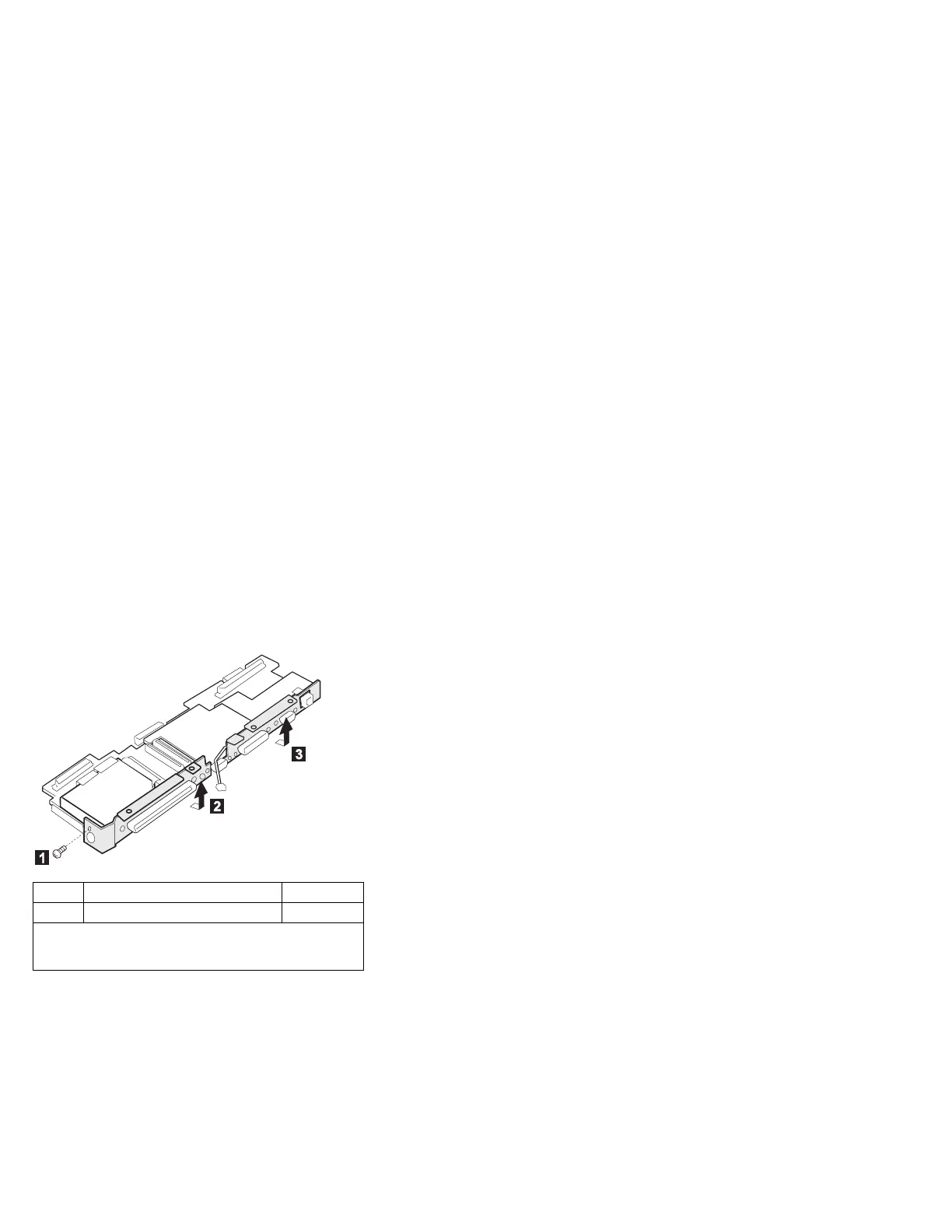

.1/.2/: Left lower shield
.3/: Right lower shield
Step Size (quantity) Torque
.1/ M2.5 x 6 mm (1) 3.5 kgcm
Note: Make sure you use the correct screw and tighten the
screw to the torque specified. Do not use the screw that you
removed, use a new screw.
486 IBM Mobile Systems HMM
