3050 Hinges
 Diskette Drive or CD-ROM Drive (1020)
 Battery Pack (1030)
 Hard Disk Drive (1040)
 Top Cover (1060)
 Keyboard Unit (1070)
 LCD Unit (1080)
 LCD Front Cover (3010)
 LCD Panel (3020)

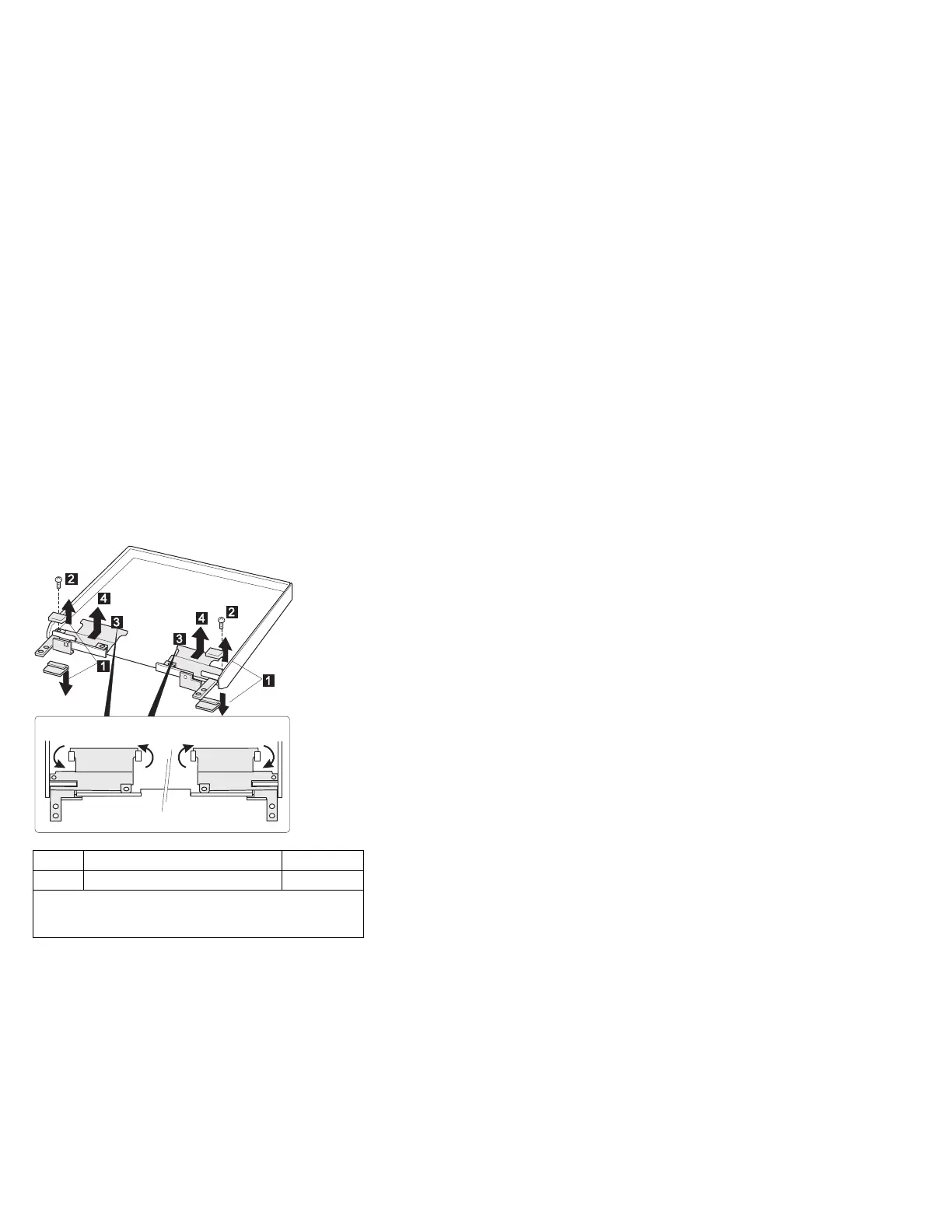

.1/: Hinge Cover
.1/.2/.3/.4/: Hinges
Step Size (quantity) Torque
.2/ M2 x 4 mm (2) 3 kgcm
Note: Make sure you use the correct screw and tighten the
screw to the torque specified. Do not use the screw that you
removed, use a new screw.
502 IBM Mobile Systems HMM
