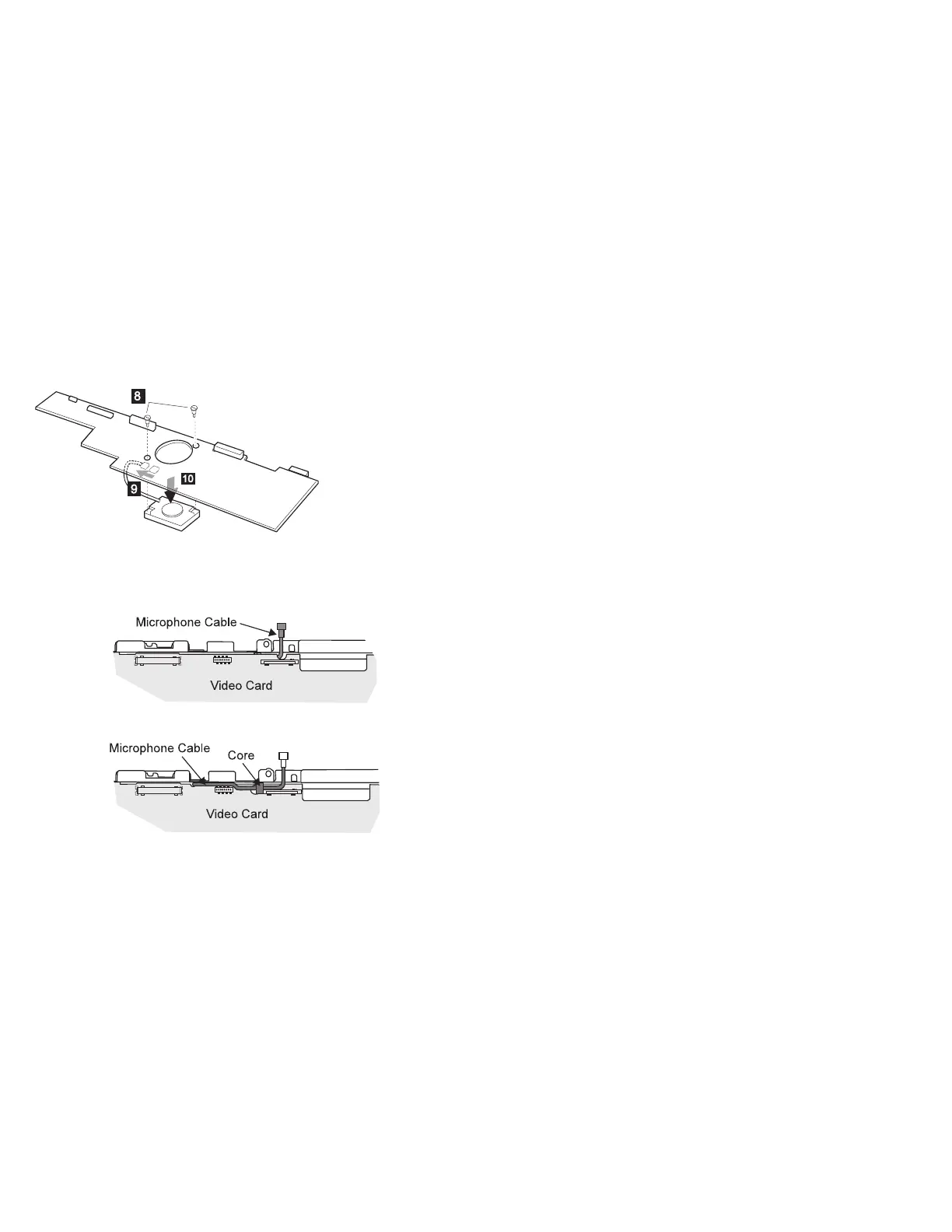

For Model 760XD, remove the fan as follows.
Note: Be careful not to touch the fan rotor when
assembling or disassembling.
When replacing:
The following figure shows the microphone routing.
 Model 760XD
 Other Models
270 IBM Mobile Systems HMM
